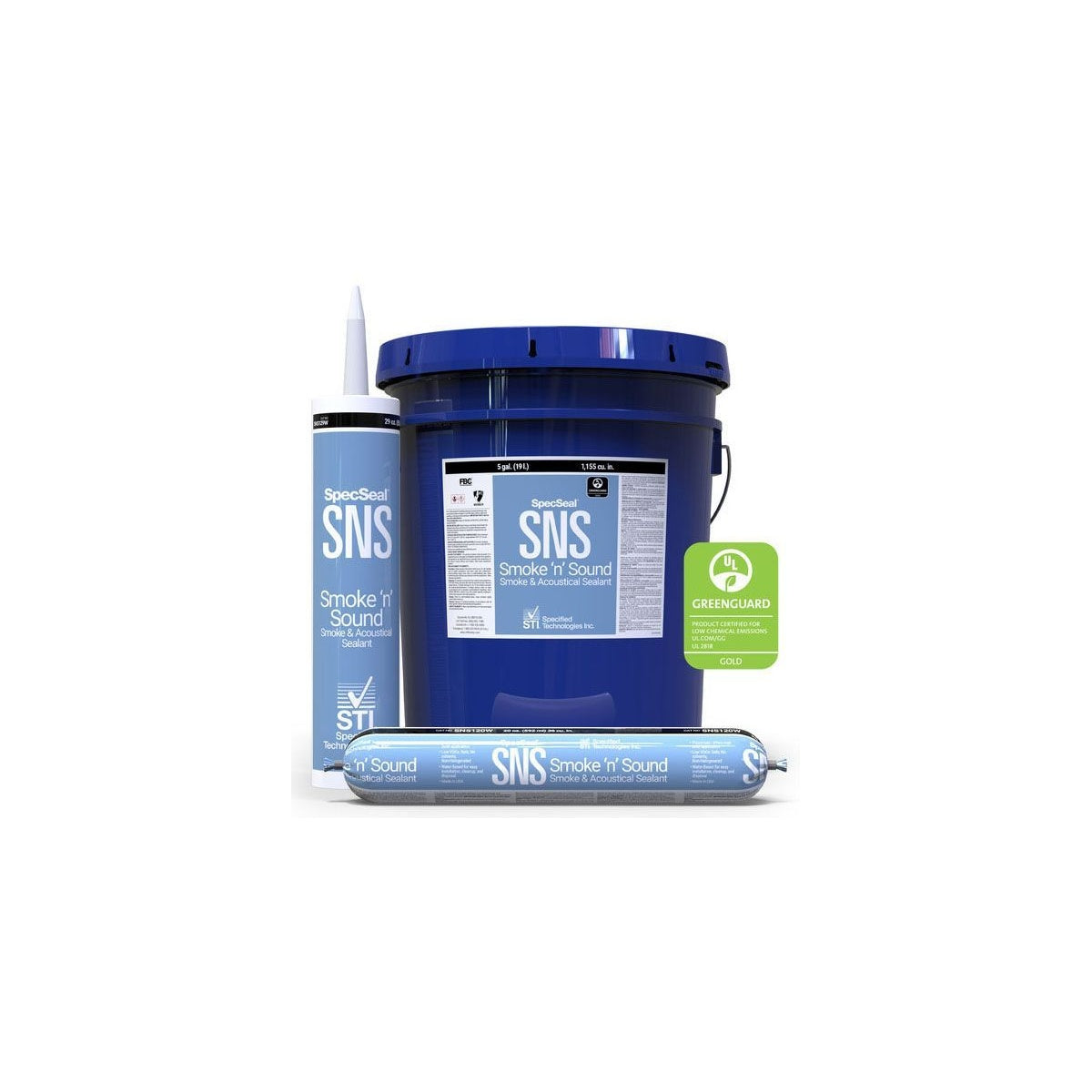

SPECIFIED SNS105W SpecSeal Smoke ‘N’ Sound Acoustical Sealant

SpecSeal SNS105W is a high-quality acrylic latex sealant designed for sealing through-penetrations such as pipes, conduits, cabling, busways, and openings, as well as membrane penetrations like p-traps and outlet boxes in smoke-rated walls. This sealant is suitable for use in smoke control, noise control, and infectious/dust control applications where maintaining smoke barriers, sound attenuation, and air particulate containment is critical. It is compatible with a wide range of construction and penetrant materials, making it a reliable choice for electrical distributors and switchgear suppliers requiring effective sealing solutions.

Specifications

• Name: SPECIFIED SNS105W SPECSEAL SERIES SNS SMOKEN SOUND ACOUSTICAL SEALANT WHITE - 5 GAL. PAIL 1,155 CU. IN. (19.0 L)
• Manufacturer: Specified Technologies
• Manufacturer Part #: SNS105W
• Color: White
• Composition: Acrylic latex spray

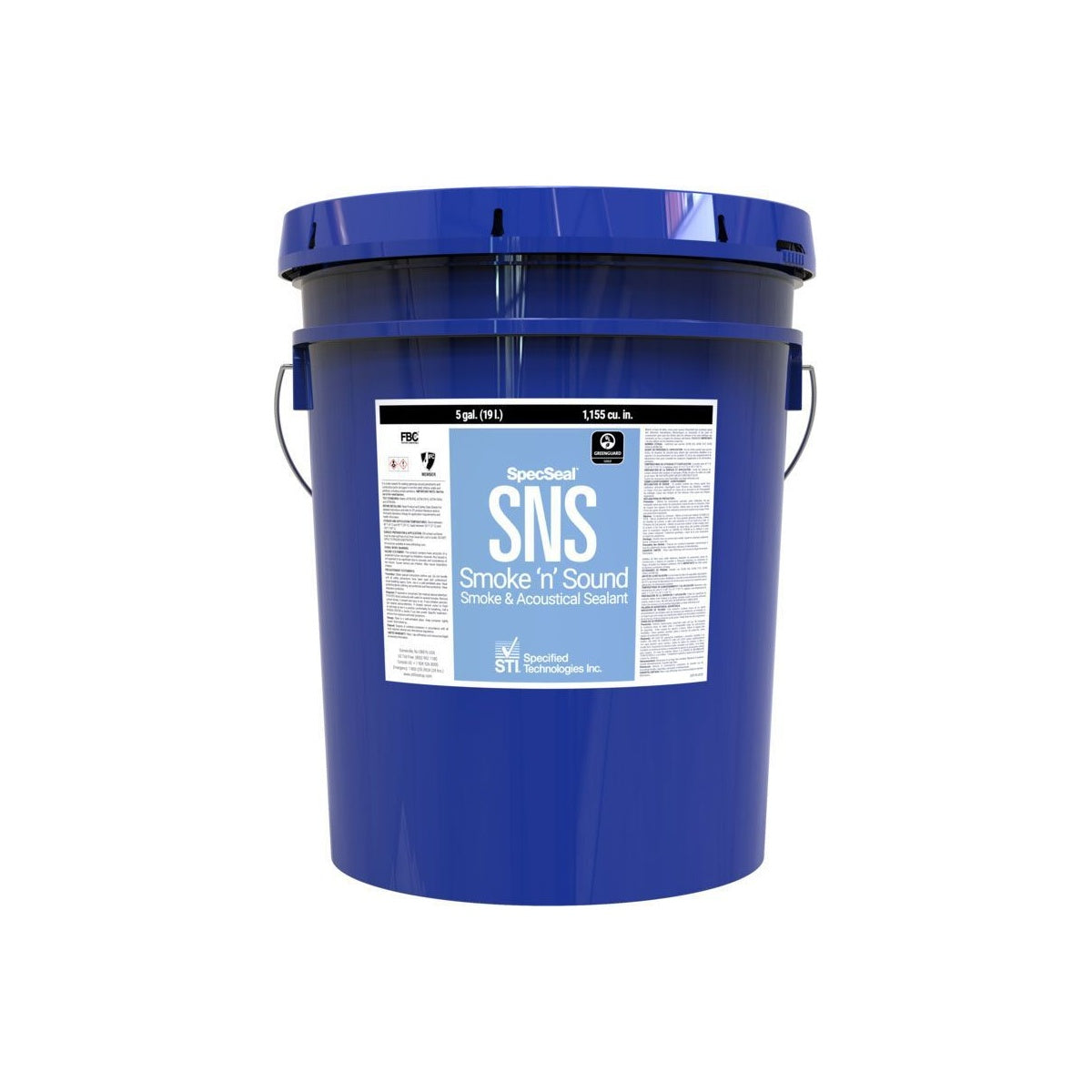

• Container: 5-gallon pail
• Dimensions: 14.8 in (length) x 13 in (width) x 13 in (height)
• Weight: 70.06 lbs
• Application: Sealing through-penetrations (pipes, conduits, cabling, busways, openings), membrane penetrations (p-traps, outlet boxes) in smoke-rated walls
• VOC Content: 20 g/L
• STC Rating: 62 (relates to specific construction)
• Flame Spread: 5
• Smoke Development: 0
• Mold & Fungus Growth Rating: 0
• pH: 7.0 to 7.5
• In-Service Temperature: Less than 185¬∞F (85¬∞C)
• Storage Temperature: 40¬∞F (4¬∞C) to 95¬∞F (35¬∞C)
• Application Temperature: 35¬∞F (2¬∞C) to 100¬∞F (38¬∞C)
• Shelf Life: 24 months from date of manufacture
• ASTM Compliance: ASTM C834, ASTM D217

Features

• Water-based acrylic latex formula for easy installation, cleanup, and disposal
• Provides a flexible, water-resistant smoke barrier when dry
• Tested and certified for smoke sealing and acoustical noise abatement
• Meets Class A finish requirements for flame spread and smoke development (ASTM E84)
• Paintable when dry
• Contains no solvents, asbestos, PCB‚Äôs, or inorganic fibers
• Auto-bonding with excellent adhesion to common construction and penetrant materials
• Resistant to ultraviolet rays, ozone, mildew, and airborne contaminants
• Non-halogenated and compliant with LEED v3, v4, and v4.1 low emitting materials credit
• Storage stable and will not separate or excessively shrink when dried
