SPDT Toggle Switch – Electrical Toggle Switch for Industrial and Lighting Applications

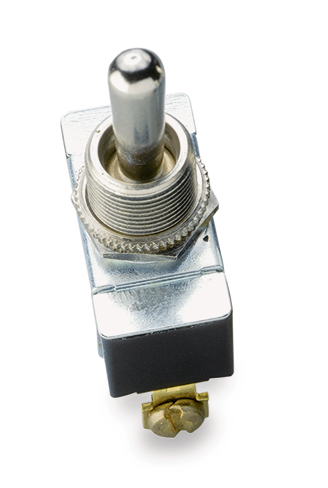

The Gardner Bender SPDT Toggle Switch (Model GSW-13) is designed for reliable control in industrial equipment and emergency lighting systems. This UL-listed switch features a double pole, single throw (DPST) on-off-on configuration, making it suitable for electrical distributors and switchgear suppliers requiring robust switching solutions. Its classic bat-handle design enables easy operation, while screw terminals allow for quick and secure wiring connections.

Specifications

• Rating: 20A 125V, 10A 277V AC; 3/4HP 125–250 VAC
• Contact Resistance: 50m ohm Max.
• Insulation Resistance: DC 500V 100M ohm Min.
• Dielectric Strength: AC 1500V for 1 minute
• Circuit: 3P SPDT ON–OFF–ON
• Operation Force: OFF–ON: 700g ±200g; ON–OFF: 450g ±150g
• Mount Hole Diameter: 12.2mm ±0.2mm
• Dimensions: Length 28.6mm ±0.3mm; Height 16.0mm ±0.3mm; Width 17.4mm ±0.3mm
• Product Weight: 0.4000 lbs

Features

• Double pole, single throw on-off-on toggle switch configuration
• Classic bat-handle design for ergonomic switching
• Screw terminals for fast and secure electrical connections
• UL-listed for safety and compliance in industrial and lighting applications
• Durable construction suitable for wire and cable distribution and switchgear integration
