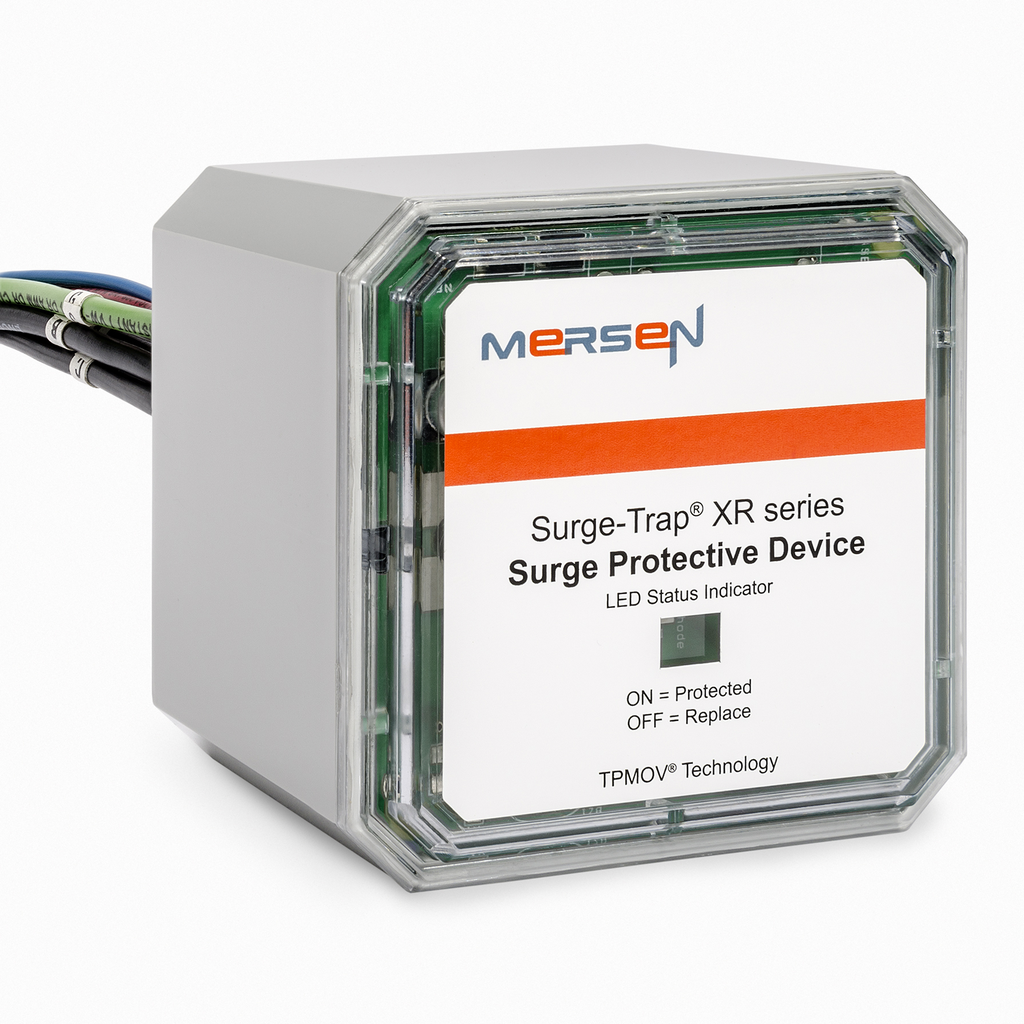

SPD - Type 1 ST-XR Series 240/120V L-L VPR 1000V L-L MCOV 300V 50 kA LED Ind
SKU: #197245
Part: #STXR240S05
UPC: 782001469658
SPD - Type 1 ST-XR Series 240/120V L-L VPR 1000V L-L MCOV 300V 50 kA LED Ind
SKU: #197245
Part: #STXR240S05
UPC: 782001469658
Description
SPD - Type 1 ST-XR Series 240/120V L-L VPR 1000V L-L MCOV 300V 50 kA LED Ind Surge Protective Device
The SPD - Type 1 ST-XR Series is a surge protective device designed for Type 1 or 2 SPD applications, suitable for electrical distributors and switchgear suppliers seeking reliable surge protection solutions. It features TPMOV® technology for enhanced safety and complies with UL1449 4th Edition standards. Its compact design and panel mount installation flexibility make it ideal for branch panel or individual equipment protection in lighting solutions and wire and cable systems.
Specifications
- Application: Suitable for any Type 1 or 2 SPD application
- Max. Discharge Current: 50 kiloamps
- Nominal Discharge Current: 20 kiloamps
- Frequency: 50 hertz
- Mounting: Panel Mount
- Connection: Pre-wired with 3 ft 12 AWG conductors
- Housing Material: Polycarbonate
- Insulation: Polycarbonate
- Product Weight: 1.5 lbs
- Dimensions: 3.25 in (Length) x 3.35 in (Width)
- Max. Operating Temperature: 85 degrees celsius
- Min. Operating Temperature: -40 degrees celsius
- Country of Origin: Mexico
- Manufacturer: Mersen
- Manufacturer Part #: STXR240S05
Features
- TPMOV® technology inside for enhanced surge protection safety
- LED status indicator showing ON = Protected, OFF = Replace
- Small, compact design for space-efficient installation
- Line or load installation flexibility
- NEMA 4X enclosure suitable for indoor or outdoor use
- Fits 3/4" knockouts with 3' leads for easy installation
- Ideal replacement for obsolete surge arrestors
- Up to 10 modes of protection (L-N, L-L, L-G optional, N-G optional)
- 5-year warranty
