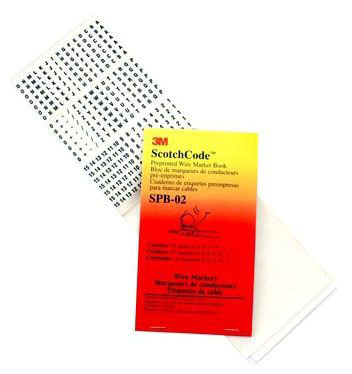

SPB-02 Wire Marker Book – Electrical Wire Identification

The 3M™ ScotchCode™ SPB-02 Wire Marker Book is designed for rapid and reliable marking of electrical wires and terminal strips. Manufactured from vinyl impregnated cloth with a natural rubber adhesive, these pre-printed markers feature clear alphanumeric characters and industry-standard legends. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, the markers withstand operating temperatures from 32°F to 150°F (0°C to 66°C), ensuring durability and clarity in various electrical applications.

Specifications

• Material: Vinyl impregnated cloth film with natural rubber adhesive
• Operating Temperature Range: 32°F to 150°F (0°C to 66°C)
• Application Temperature Range: 40°F to 100°F (4°C to 38°C)
• Tape Thickness: 10.0 mils (0.25 mm)
• Adhesion to Steel (ASTM D-1000): 20–30 oz./inch width (219–328 Newtons/meter)
• Adhesion to Backing (at 23°C): 8–14 oz./inch width (88–153 Newtons/meter)
• Tensile Strength: 42 lbs./inch width (7350 Newtons/meter)
• Marker Dimensions: 1.37 inches (34.8 mm) by 0.22 inches (5.6 mm)
• Terminal Marker Dimensions: 0.22 inches (5.6 mm) by 0.22 inches (5.6 mm)
• Contents: 10 markers each of A-Z, 0-15, +, –, /
• Maximum Wire Diameter: 0.47 inches (11.9 mm)
• Product Weight: 0.64 lbs

Features

• Pre-printed vinyl coated cloth markers for quick and accurate wire identification
• Perforated individual character markers reduce thickness on smaller gauge wires
• Black ink on white background for high legibility
• Markers bound in a bifold book for easy handling and organization
• Suitable for marking electrical wires, terminal strips, load centers, and alarm systems
