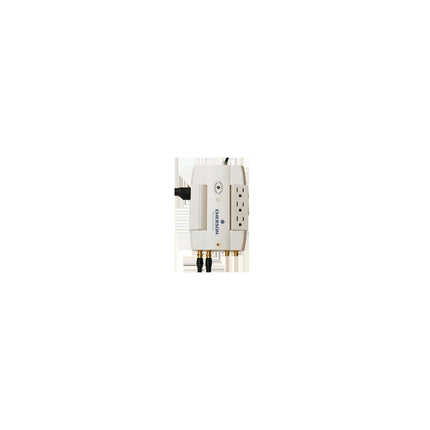

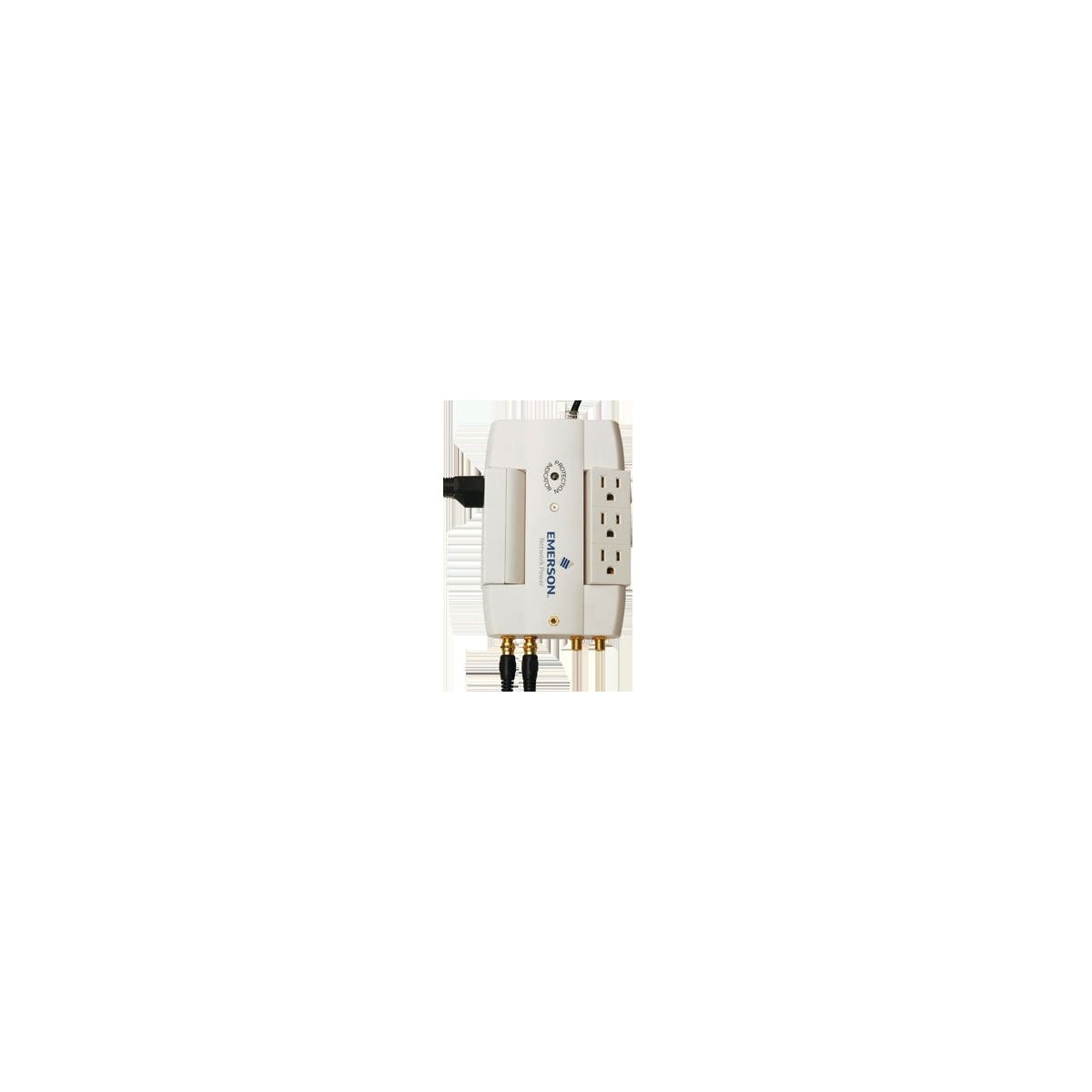

SP-6TVN Surge Suppressor by Appleton – Industrial Strength Surge Protection

The SP-6TVN is an industrial-strength surge suppression and filtering device designed for home and office electrical protection. It plugs into a standard 120V, 15 AMP duplex receptacle and safeguards sensitive equipment such as TVs, home theaters, satellite dishes, computers, printers, copiers, and fax machines from damaging power disturbances. This device is ideal for electrical distributors and lighting solutions providers seeking reliable surge protection with enhanced filtering technology for wire and cable systems and switchgear applications.

Specifications

• Nominal Operating Voltage: 120 VAC, Single Phase
• Operating Voltage Range: 120 VAC ¬± 10%
• Operating Frequency Range: 47 ‚Äì 63 Hz
• Rated Output: 15 Amperes
• Connection Type: (6) 5-15R Receptacles and 5-15P Plug
• Phase Configuration: 2 Wire + Ground
• Size: 7.5 x 4.75 x 1.75 inches
• Enclosure: High Impact Plastic
• Weight: 2.0 lbs (0.9 kg)
• Modes of Protection: Line-Neutral, Line-Ground, Neutral-Ground
• Response Time: Less than 0.5 nanoseconds (Normal mode)
• Peak Surge Current Capacity (8x20ms): 39,000 Amps total (13,000 Amps per mode)
• ANSI/IEEE C62.41 Category: A & B
• Certifications: UL 1449 Listed
• Warranty: 5 Years
• Maximum Continuous Operating Voltage (MCOV) Line to Neutral: 130 VAC
• Frequency Response: 60 dB maximum high frequency (100 kHz to 50 MHz)
• Low Voltage Protection: Video, Phone, and Network lines with included cables and connectors

Features

• Uniquely designed repositionable outlets for flexible installation behind desks and furniture
• Integrated Active Tracking¬Æ Filtering Technology to eliminate electrical abnormalities and low-voltage transients
• Operational indicator lamp for suppression status monitoring
• Intelligent monitoring against improper wiring and grounding
• Includes cables for telephone, video, and data connections with Type ‚ÄúF,‚Äù RJ11, and RJ45 connectors
• Compact form factor optimized for tight spaces and behind appliances
• Industry-standard surge protection suitable for business-critical continuity
