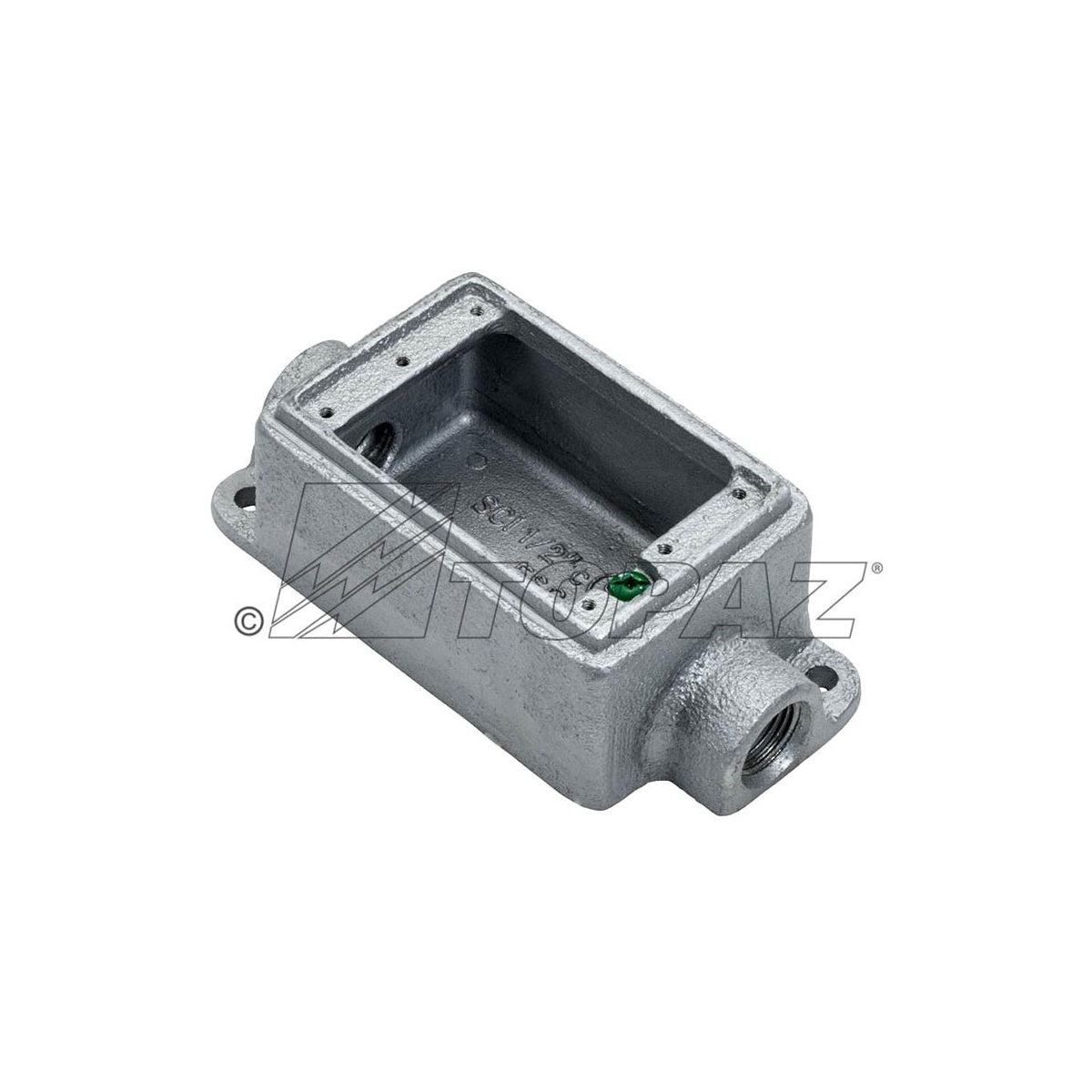

SOUTHWIRE FDC3MHDG 1IN FDC BOX DEEP DUAL HUB HDG - Heavy Duty Electrical Conduit Box

The Southwire FDC3MHDG is a heavy-duty, deep dual hub conduit box designed for use in harsh environments. Manufactured from malleable iron with a hot dip galvanized finish, it is suitable for applications requiring durable protection and reliable grounding in electrical distribution, lighting solutions, wire and cable installations, and switchgear setups. This conduit box is engineered for use in concrete and wet locations when paired with the appropriate cover and neoprene gasket.

Specifications

• Manufacturer Part #: FDC3MHDG
• UPC: 751338018198
• Size: 1 inch
• Weight: 3.3 lbs
• Dimensions (inches): A - 6.11, B - 2.97, C - 2.90
• Material: Malleable iron
• Finish: Hot dip galvanized

Features

• Suitable for use in concrete
• Tapered threaded hubs with NPT
• Internal grounding screw for electrical safety
• Suitable for wet locations when used with cover and neoprene gasket
• Provides an opening for making splices
• Serves as a pull box for conductors
• Allows connection for branch conduit runs
