SOUTHWIRE FD3MHDG 1IN FD BOX DEEP SINGLE HUB HDG
SKU: #404581
Part: #FD3MHDG
UPC: 751338018112
SOUTHWIRE FD3MHDG 1IN FD BOX DEEP SINGLE HUB HDG
SKU: #404581
Part: #FD3MHDG
UPC: 751338018112
Description

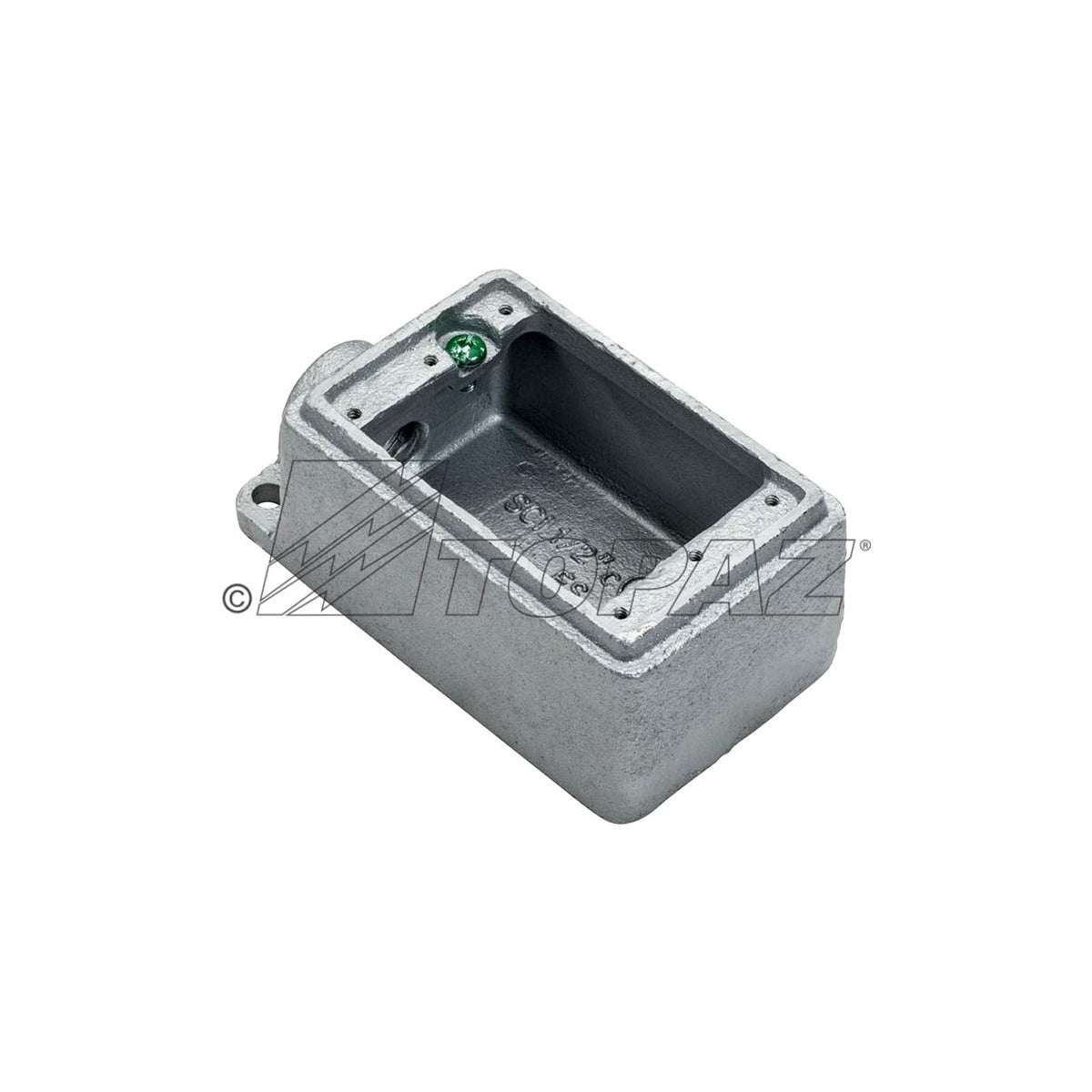

SOUTHWIRE FD3MHDG 1IN FD BOX DEEP SINGLE HUB HDG - Heavy Duty Cast Device Box
The SOUTHWIRE FD3MHDG is a heavy duty, deep single hub cast device box designed for electrical distributors and switchgear suppliers requiring durable and reliable enclosures. It is suitable for use in harsh environments and concrete installations, providing a secure opening for splices, pull box functions, and branch conduit connections. This box is hot dip galvanized for corrosion resistance, making it ideal for wet locations when used with the appropriate cover and neoprene gasket.
Specifications
- Manufacturer Part #: FD3MHDG
- Size: 1 inch
- Material: Malleable iron
- Finish: Hot dip galvanized
- Dimensions (inches): A - 6.09, B - 2.97, C - 2.90
- Weight: 2.7 lbs
- UPC: 751338018112
- Standards: Conforms to ASTM A123/123M, UL 514A, Fed. Spec. A-A-50563, CSA C22.2 No. 18.3, NEMA FB-1
Features
- Suitable for use in concrete
- Tapered threaded hubs - NPT
- Internal grounding screw
- Suitable for wet locations when used with cover and neoprene gasket
- Heavy duty construction for harsh location applications
