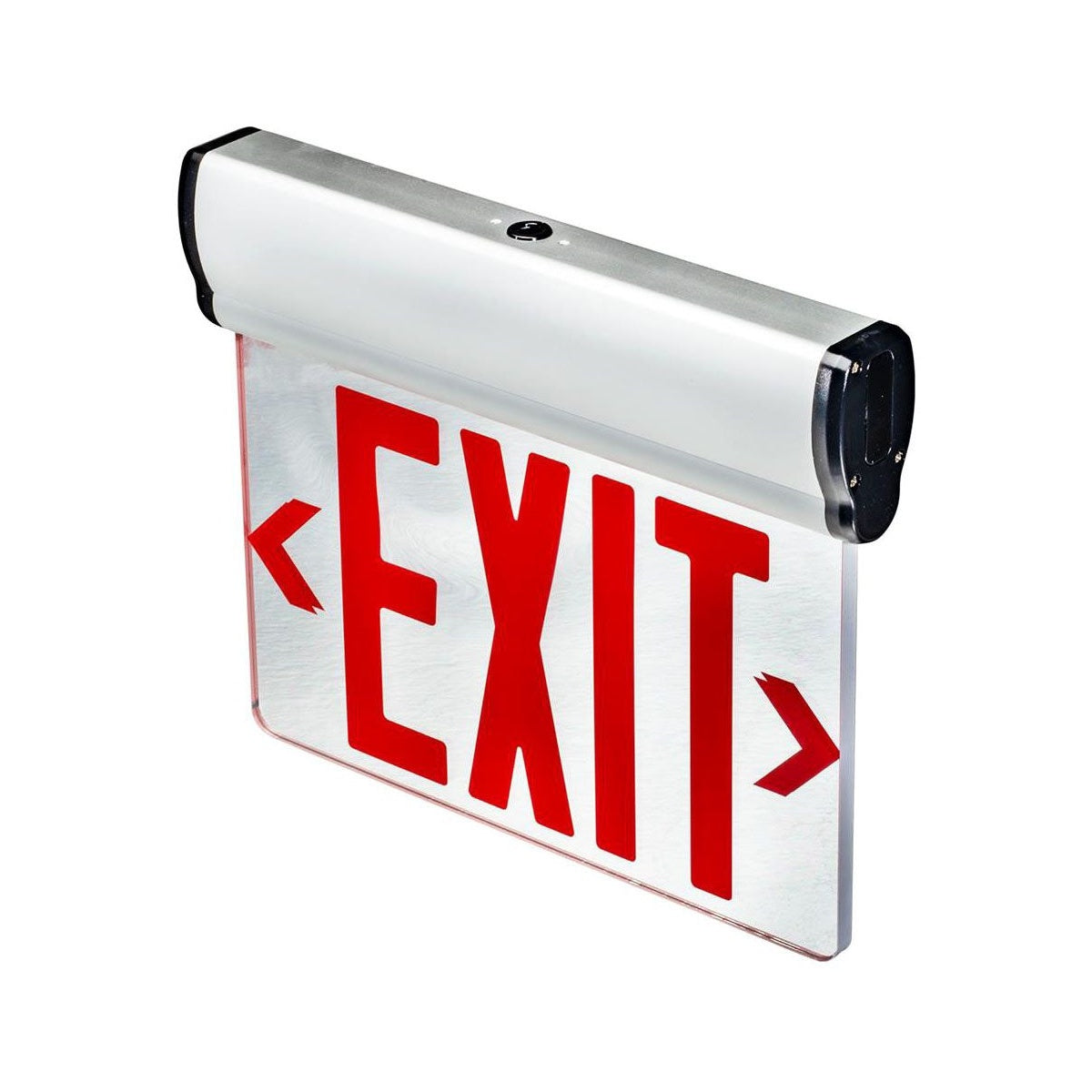

SOUTHWIRE ESEL/DFS/RMR/B-NYC 6PK LED Red Edgelit Exit Sign - NYC Approved

This LED edge-lit exit sign by Southwire is designed for clear and reliable exit marking in compliance with New York City regulations. It is suitable for office, industrial, retail, and public spaces, ensuring visibility even during power outages with a built-in 90-minute battery backup. The sign features a mirrored double-face panel with 8" red EXIT letters, mounted via surface installation with included canopy and accessories. This product aligns with standards required by electrical distributors and lighting solutions providers focusing on safety and code compliance.

Specifications

• Input Voltage, Frequency: 120/277V, 60Hz
• Emergency Backup: Yes
• Emergency Duration / Run Time: 90 minutes
• Recharge Time: 24 hours
• Recycle Times: 500 cycles
• Mounting Height: 7.5 ft to 15 ft
• Location Rating: Damp
• Ambient Operating Temperature: 50¬∞F to 104¬∞F
• Battery Type: 4.8V Ni-Cad
• Letter Height: 8"
• Stroke Width: 1"
• Weight: 3.24 lbs

Features

• New York City approved
• Meets NFPA 70, NFPA 101, UL924, NEC/OSHA standards
• Battery backup with accessible test button for 90 minutes of illumination during power outage
• Clear or mirrored panel options; this model features mirrored, double-face configuration
• Configurable directional arrows
• Ceiling, wall, or side mounting capability
• Sleek extruded brushed aluminum housing
• Surface mount installation with included canopy and mounting accessories
• AC supply indicator
