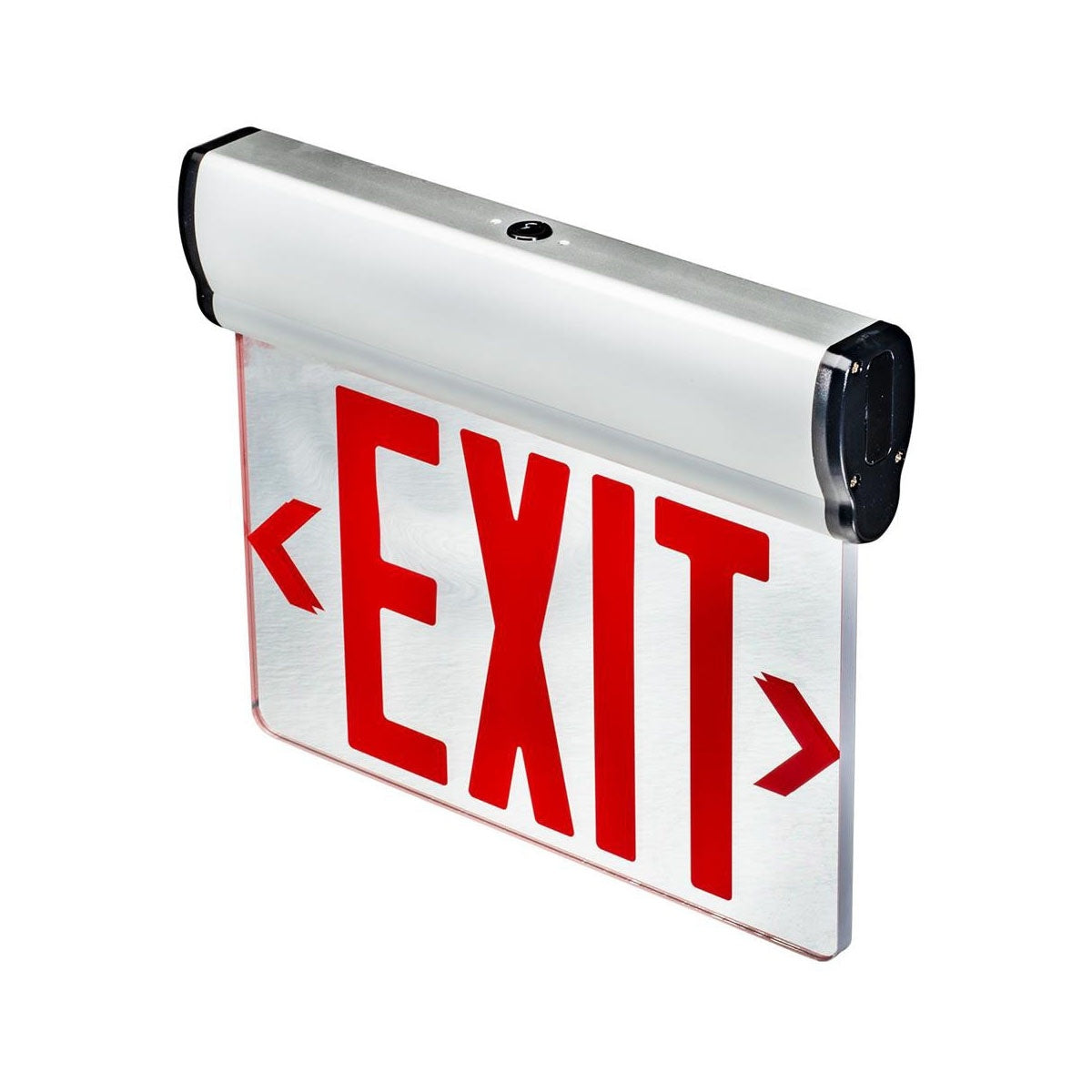

SOUTHWIRE ESEL/DFS/RMR/B 6PK LED Red Edgelit Exit Sign-Mirror

The SOUTHWIRE ESEL/DFS/RMR/B is an LED edge-lit exit sign designed for clear and reliable exit marking in commercial and public spaces. Featuring a mirrored double-face panel with red EXIT letters, this exit sign is suitable for use by electrical distributors and switchgear suppliers seeking compliant lighting solutions. It offers easy surface mount installation with optional recessed mounting kits, making it adaptable for various mounting needs.

Specifications

• Input Voltage: 120/277V, 60Hz
• Power Consumption: 3 Watts
• Letter Color: Red
• Panel Type: Mirrored
• Number of Faces: Double Face
• Housing Material: Brushed Aluminum
• Letter Height: 6 inches with 3/4 inch stroke
• Emergency Backup: Ni-Cad battery providing 90 minutes of illumination
• Ambient Operating Temperature: 50¬∞F to 104¬∞F
• Location Rating: Damp
• Weight: Approximately 3.23 lbs

Features

• Meets NFPA 70, NFPA 101, UL924, NEC, and OSHA standards
• Battery backup with accessible test button for emergency operation during power outages
• Configurable arrows for directional guidance
• Surface mount installation with optional recessed mount kit
• Sleek extruded brushed aluminum housing for durability and modern aesthetics
• Suitable for ceiling, wall, or side mounting
