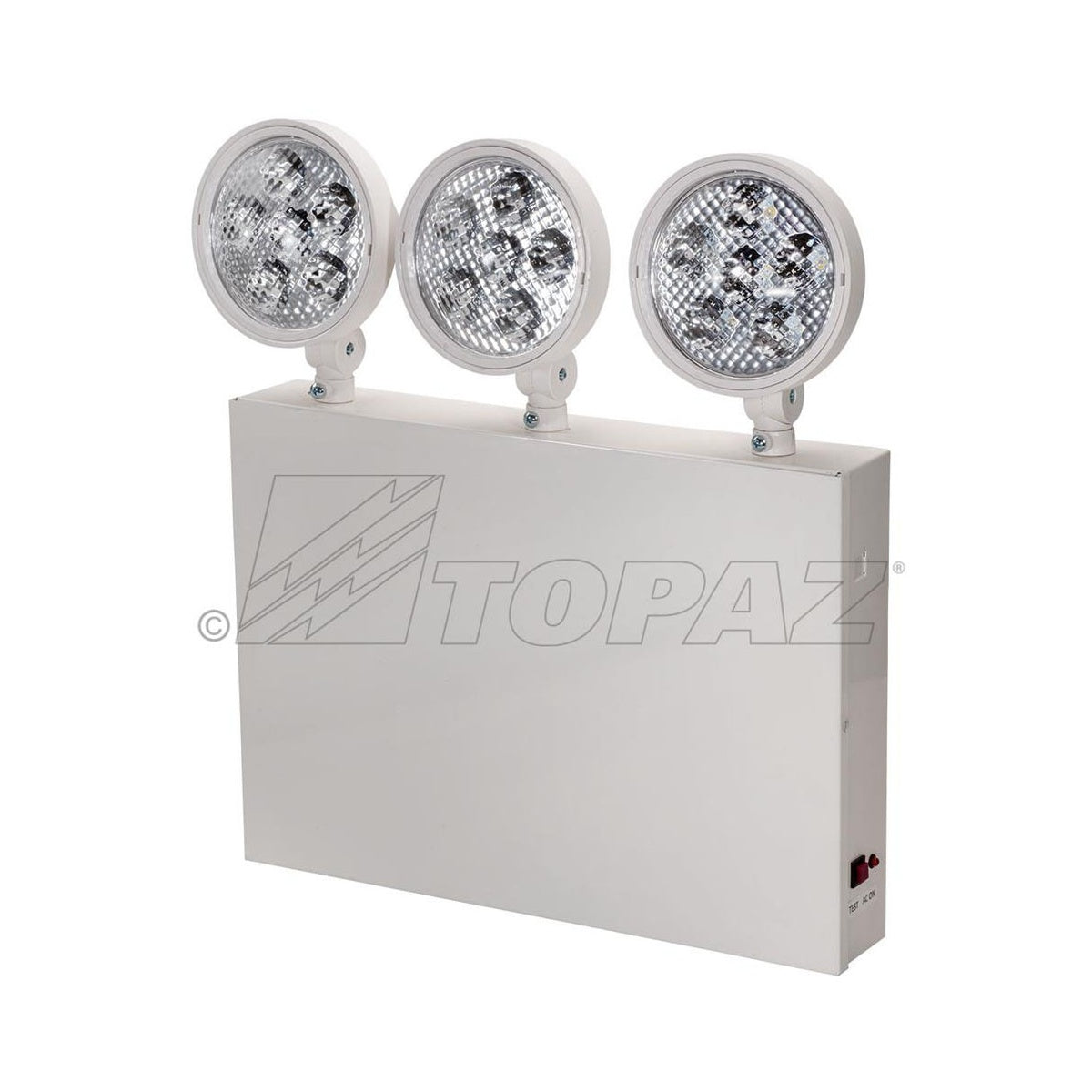

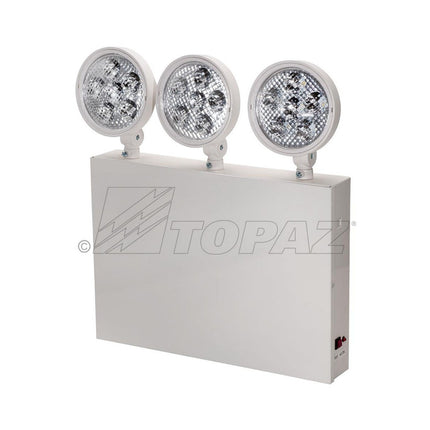

SOUTHWIRE EL3/LED/WH-NYC 3PK STEEL 3-HEAD LED EMERGENCY LIGHT NYC APPROVED

The SOUTHWIRE EL3/LED/WH-NYC is a New York City approved LED emergency lighting unit designed for reliable illumination during power outages. Featuring a sturdy 20-gauge steel housing with white powder coating, this emergency light is suitable for damp locations and provides 90 minutes of uninterrupted power backed by a Ni-Cad battery. It is ideal for use in office, industrial, retail, and other public spaces, meeting the requirements of electrical distributors and lighting solutions providers seeking compliant emergency lighting products.

Specifications

• Input Voltage: 120/277V dual voltage
• Power Consumption: 1 watt per LED lamp head
• Lumens: 100 lumens per head
• Dimensions: 14.5" x 2.4" x 16.5"
• Weight: 6.69 lbs
• Battery Backup: 3.6V, 800mA Ni-cad (two batteries)
• Runtime: Minimum 90 minutes
• Operating Temperature Range: 50¬∞F to 104¬∞F
• Construction: 20-gauge steel housing with white powder coating
• Location Rating: Suitable for damp locations
• CRI: 80
• Frequency: 50/60 Hz
• Average Rated Life: 500 uses
• Dimmability: No

Features

• Three 1W glare-free adjustable LED lamp heads
• Test switch and AC supply indicator for easy maintenance
• Battery backup with accessible test button for emergency illumination
• Easy knockout holes for wall or side mount installation
• Meets UL924, NFPA 101, NEC, and OSHA standards
• NYC approved for compliance with local codes
