SOUTHWIRE BHA1C BAR HANGER ADJ 16IN TO 24IN W CLIP
SKU: #400424
Part: #BHA1C
UPC: 785592983510
SOUTHWIRE BHA1C BAR HANGER ADJ 16IN TO 24IN W CLIP
SKU: #400424
Part: #BHA1C
UPC: 785592983510
Description

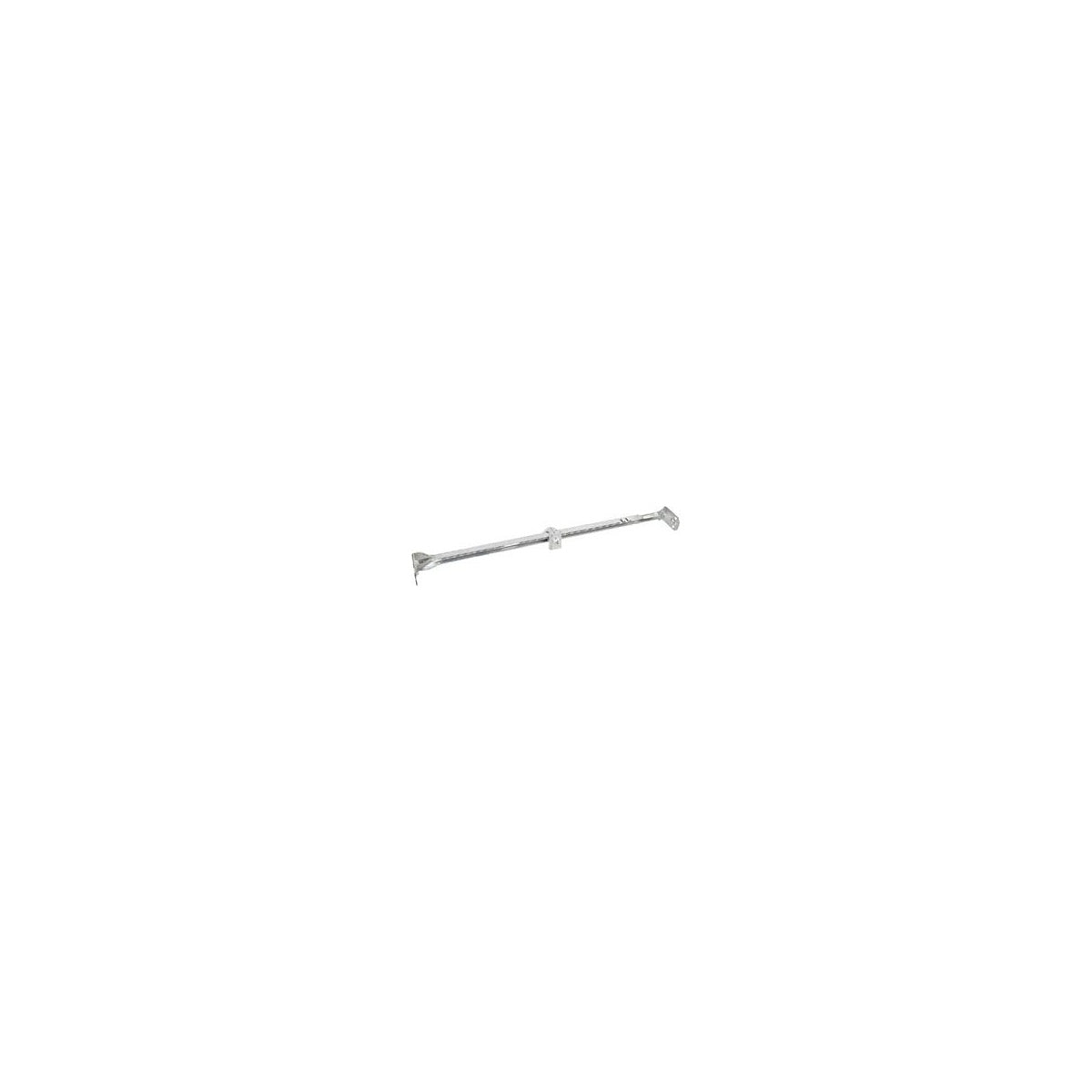

SOUTHWIRE BHA1C BAR HANGER ADJ 16IN TO 24IN W CLIP – Adjustable Bar Hanger
The Southwire BHA1C adjustable bar hanger is designed for secure and flexible mounting of electrical boxes between ceiling joists or wall studs. It is used by electrical distributors and switchgear suppliers to facilitate quick installation of boxes in lighting solutions and wire and cable setups. The bar hanger supports box mounting with a box-locking clip and is UL listed for safety compliance.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: BHA1C
- Adjustable Length: 16" to 24"
- Box Mounting: Box-locking clip
- Maximum Static Fixture Support: 50 lbs. on 16" centers
- Material: Galvanized steel
- Product Weight: 1.12 lbs
- Dimensions (L x W x H): 45.12 in x 45.12 in x 40.12 in
- Certification: UL Listed
Features
- Box clip installs in 1/2" knockouts located on the bottom of boxes
- Design allows boxes to be installed anywhere along the length of the bar
- Includes clip and screw for secure attachment
- Not designed or intended for ceiling fan support
