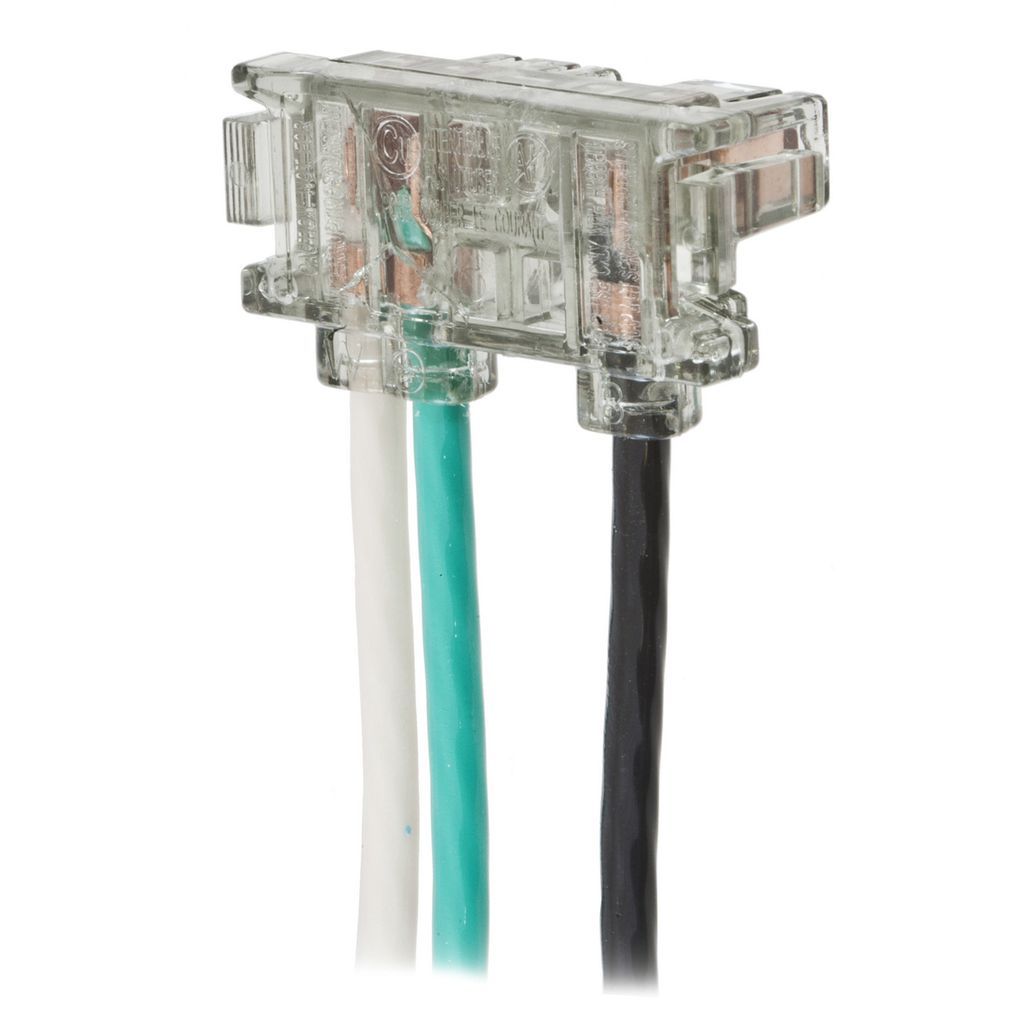

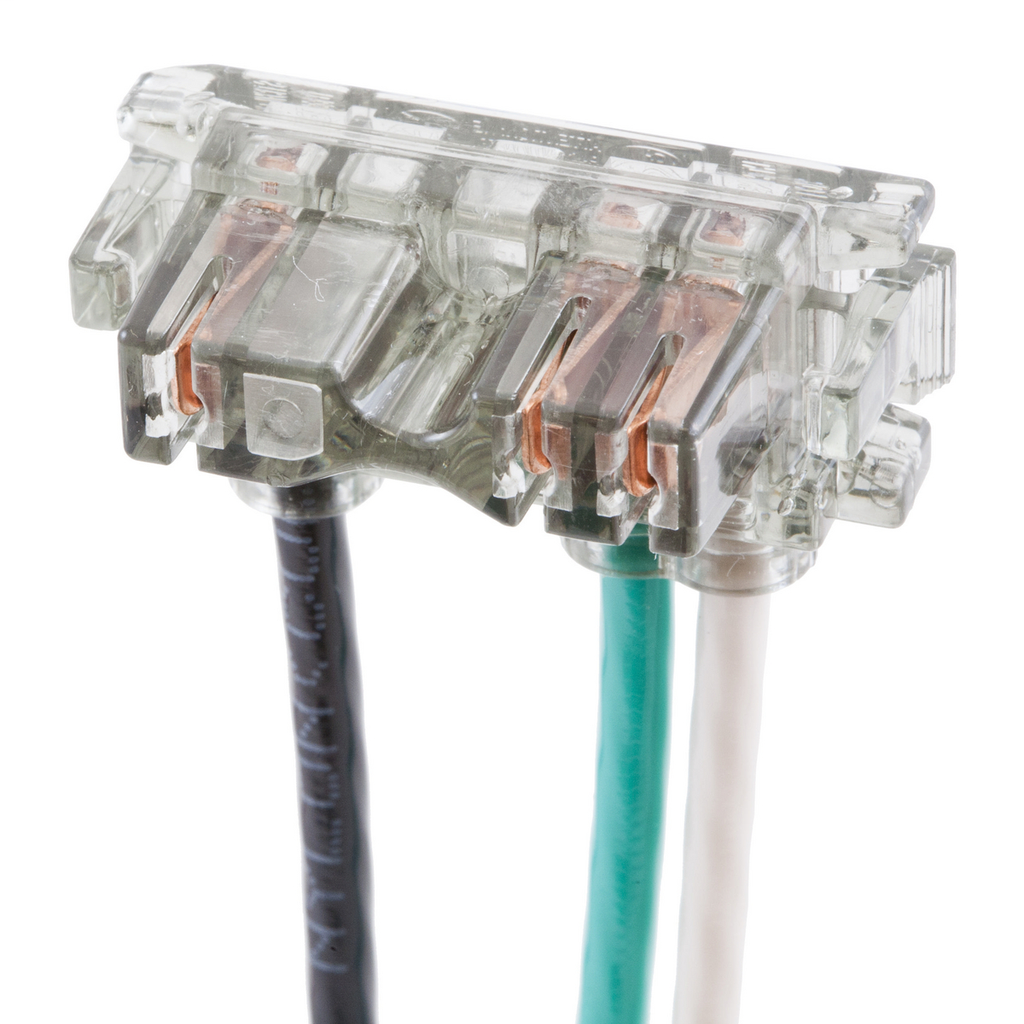

SnapConnect Receptacles SNAP2RNA Electrical Connector

The SnapConnect Receptacles SNAP2RNA by Hubbell Wiring Device-Kellems is designed for quick connection applications in electrical distribution and wiring systems. This cord-mounted receptacle supports 2-pole, 3-wire grounding configurations, suitable for 15-20 amperes at 125 volts, making it an efficient solution for wire and cable terminations in indoor dry environments. It features a polycarbonate insulated body with screw terminal connections, ensuring secure and reliable electrical contacts for lighting solutions and switchgear installations.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: SNAP2RNA
• Application: Quick Connection
• Amperage Rating: 20 A
• Amperage: 15 amperes
• Current: 15-20 amperes
• Voltage: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 3
• Number of Conductors: 3-Wire Grounding
• Conductor Range: Pre-Wired #12 THHN
• Material: Polycarbonate
• Color: Clear
• Mounting: Cord Mounted
• Connection: Screw Terminals
• Insulation: Insulated Body
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• NEMA Rating: Non-NEMA
• Product Weight: 0.9130 lbs

Features

• Designed for quick and secure connections in electrical wiring applications
• Compatible with stranded #12 THHN wire for flexible installation
• Insulated polycarbonate body provides electrical safety and durability
• Cord-mounted design facilitates easy integration into wiring systems
• Screw terminal connections ensure reliable and maintenance-friendly wiring
• Suitable for indoor dry environments, enhancing longevity and performance
