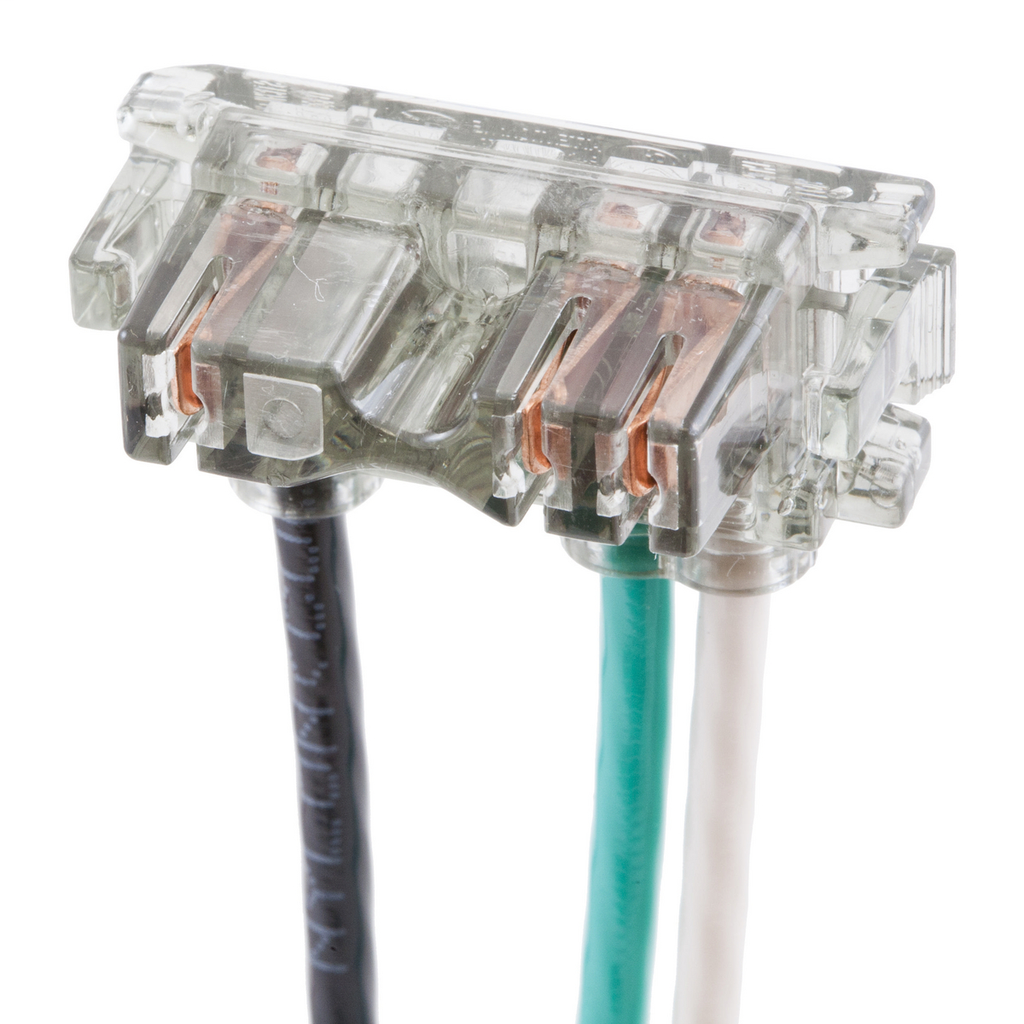

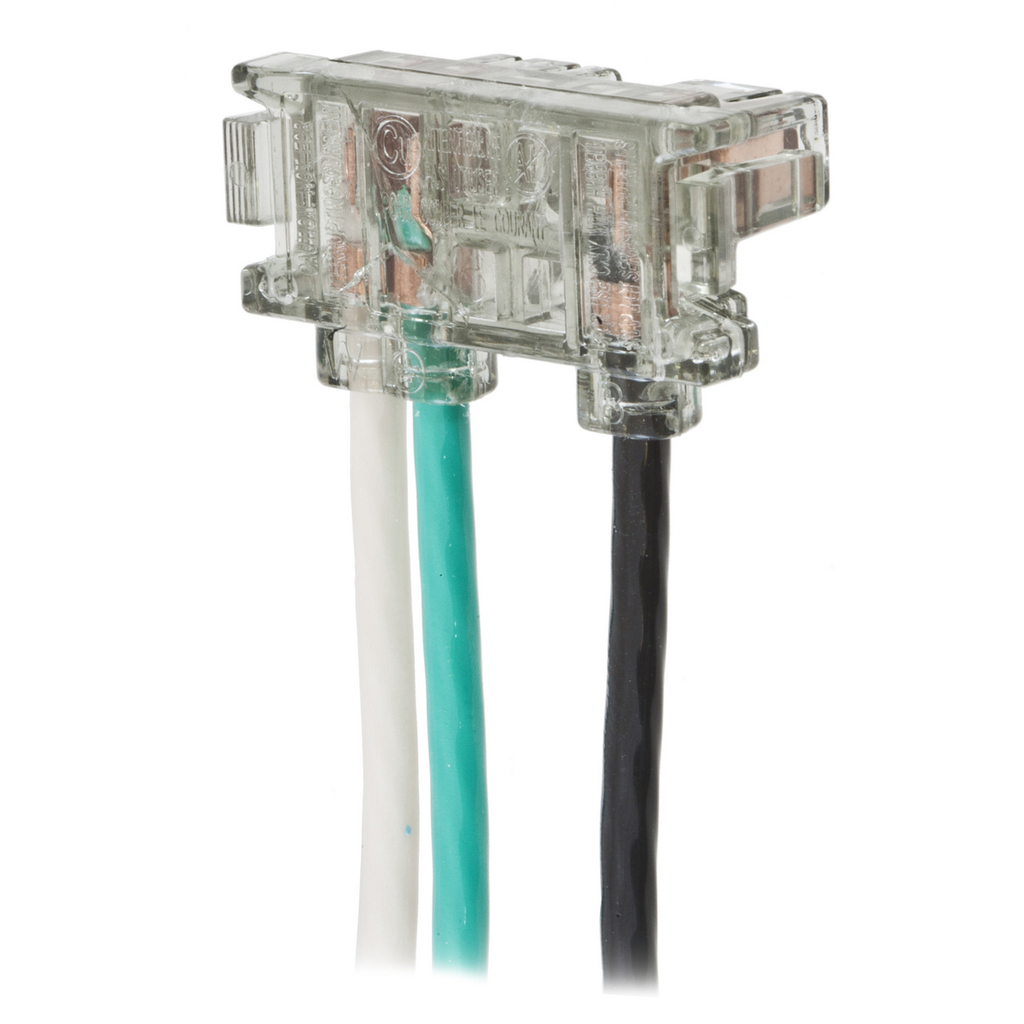

SnapConnect Receptacles SNAP2RA – Clear Right Angle Pigtailed Connector

The SnapConnect Receptacles SNAP2RA by Hubbell Wiring Device-Kellems is a clear, right angle pigtailed connector designed for electrical wiring applications requiring a compact, reliable connection. This device is ideal for use by electrical distributors and switchgear suppliers in wiring and cable installations where a 2-pole, 3-wire grounding connection is needed. It supports 15-20 amperes current at 125 volts and is constructed with durable polycarbonate material, ensuring long-lasting performance in various electrical and lighting solutions.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: SNAP2RA
• Type: Straight Blade Devices, Receptacles, SNAP-CONNECT Connector
• Poles: 2
• Wires: 3
• Phases: 1
• Amperage: 15 amperes
• Current Rating: 15-20 amperes
• Voltage: 125V
• Material: Polycarbonate
• Color: Clear
• Dimensions (L x W x H): 6.6 in x 1.5 in x 0.7 in
• Operating Temperature: -40 degrees Celsius
• NEMA: Non-NEMA
• Product Weight: 0.05 lbs
• UPC: 783585251998

Features

• Clear terminal housing for easy inspection of power contacts
• Eliminates exposed live terminals on the device for enhanced safety
• Audible SNAP indicates solid, secure connection with easy grip latch
• Right angle design for space-saving installation in tight electrical boxes
• Compatible with #12 AWG stranded wire and rated for 600V THHN/THWN-2 wiring
• Assembled in USA
