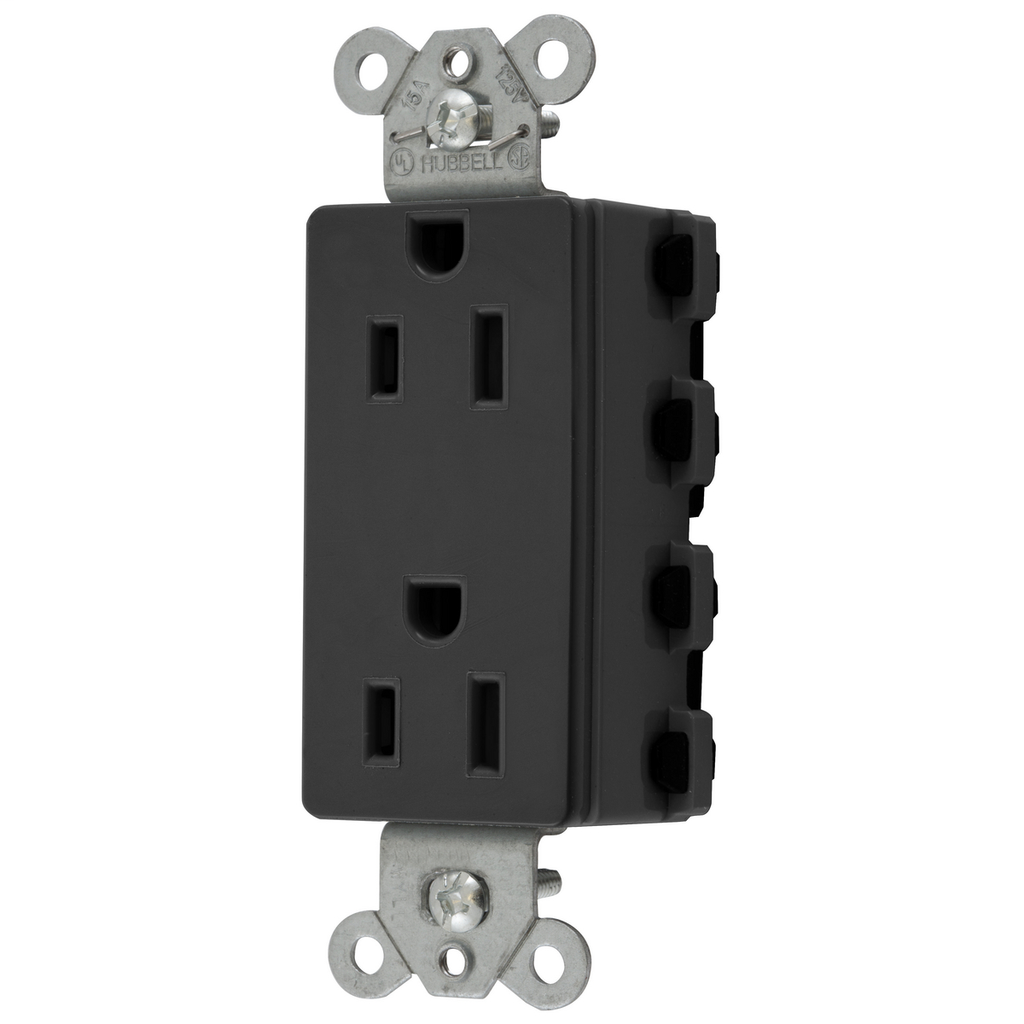

SnapConnect Receptacles SNAP2152BKA – Extra Heavy Duty Electrical Distributor

The SnapConnect Receptacles SNAP2152BKA from Hubbell Wiring Device-Kellems are extra heavy duty specification grade straight blade devices designed for reliable power delivery in indoor dry environments. These 15A, 125V, 2-pole, 3-wire grounding receptacles feature a Style Line decorator duplex design with SNAPConnect 2 technology, enabling fast and secure connectorized installation. Ideal for electrical distributors and switchgear suppliers, the receptacles are suitable for applications requiring durable and high-performance wiring devices.

Specifications

• Application: Extra Heavy Duty Specification Grade
• Current: 15 amperes
• Amperage Rating: 15 A
• Voltage Rating: 125V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Number of Phases: 1
• NEMA Rating: 5-15R
• Material: Nylon face, PBT base, brass contacts
• Color: Black
• Mounting: Screw Mount
• Connection: Connectorized SNAPConnect 2
• Dimensions (L x W x H): 3.28 in x 1.64 in x 1.1 in
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40°C minimum, maximum continuous 75°C
• Environmental Conditions: Indoor Dry unless protected by additional means
• Product Weight: 2.0 lbs
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part Number: SNAP2152BKA
• UPC: 783585248158

Features

• Aesthetic Style Line® decorator design
• Audible SNAP indicates solid connection for installation assurance
• Fully insulated design enhances safety
• Reduces installation time with SNAPConnect technology
• Auto self-grounding staple for reliable grounding
• UL Listed to UL498 and CSA Certified
• Flammability rating UL 94V-2
