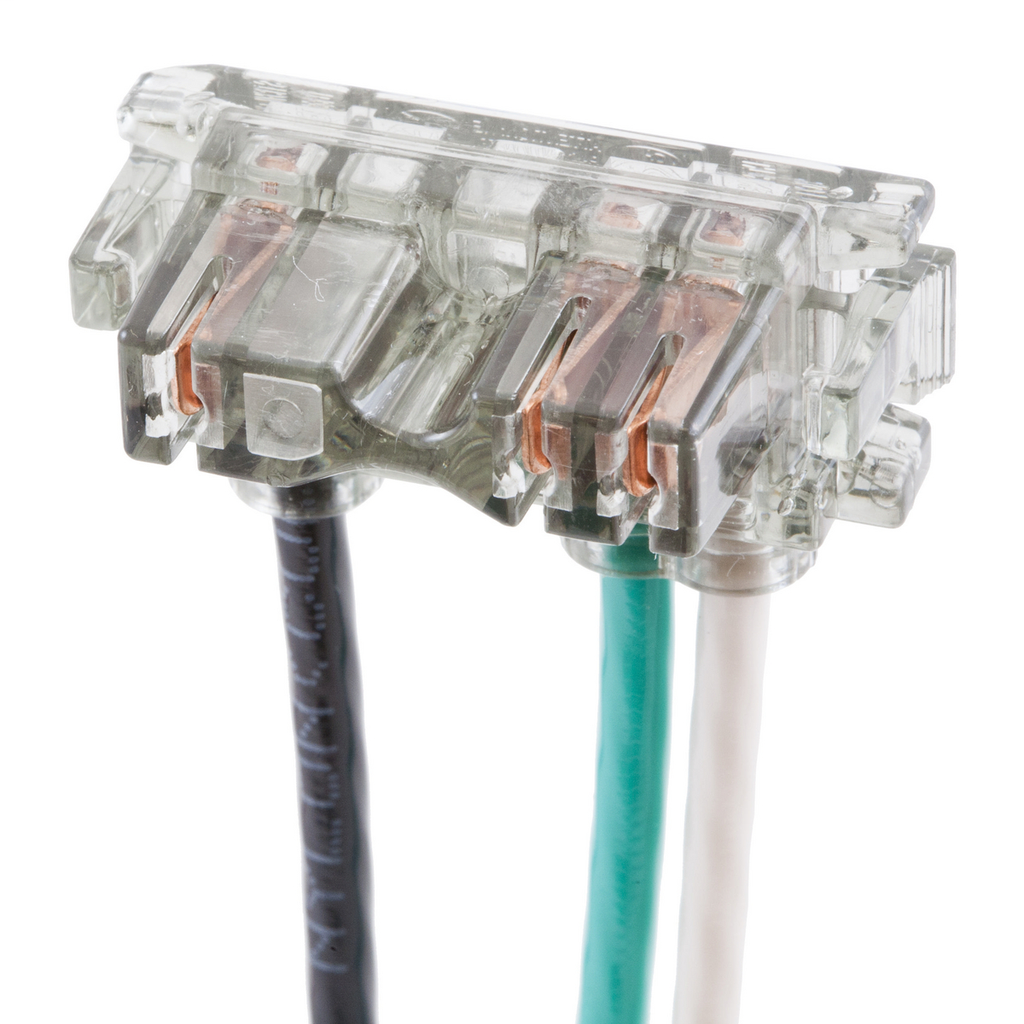

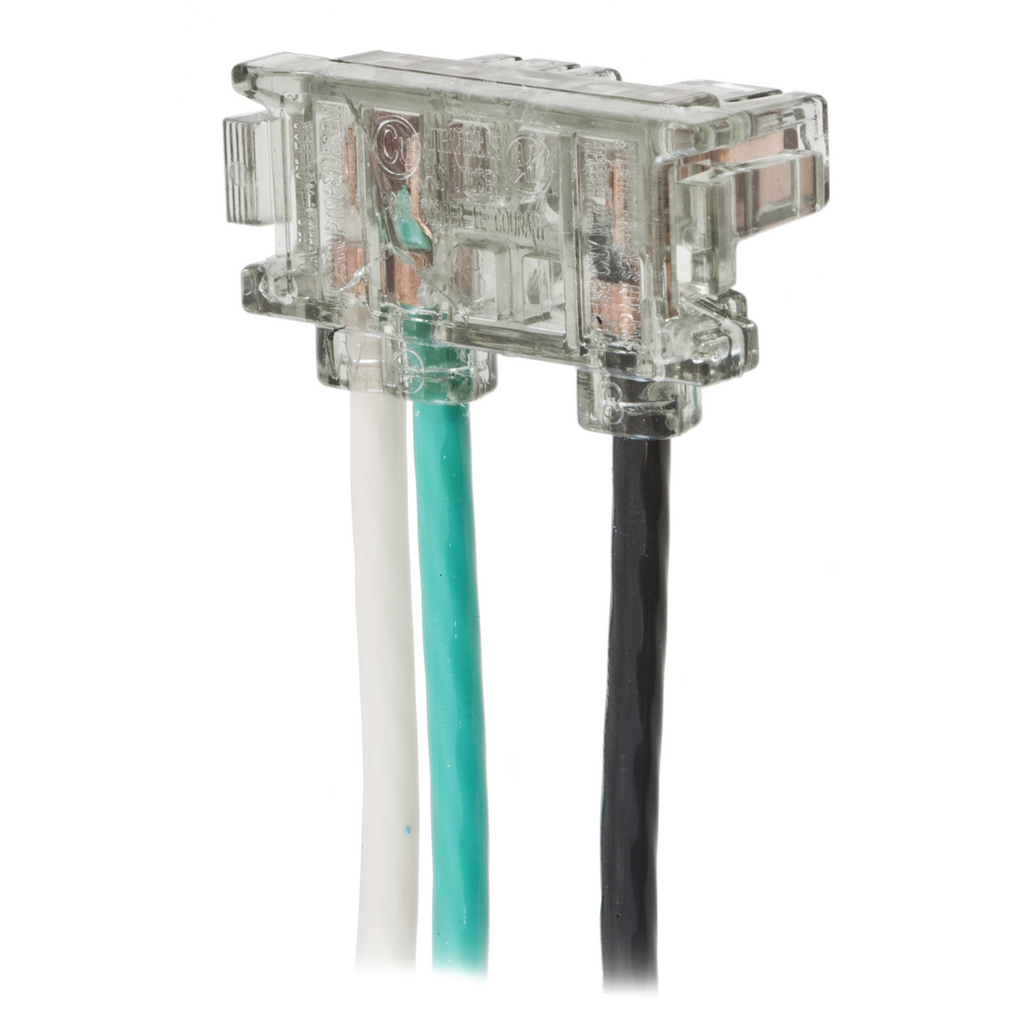

Features

• Transparent housing to inspect contacts
• Audible SNAP, indicates solid connection
• Reduces installation time
• Fully insulated design

Specifications

General

• Application: Quick Connection
• Color: Clear
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: SNAPConnect Connector
• Material: Polycarbonate
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Extra Heavy Duty
• Type: Pigtailed Connector
• UPC: 783585251981

Dimensions

• Display Size: Standard
• Height: 0.79 in
• Length: 1.48 in
• Width: 0.78 in

Electrical Ratings

• Amperage Rating: 20 A
• Connectivity: Connectorized
• Current / Amperage Rating: 15 A - 20 A
• Current Rating: 15-20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V

Conductor Related

• Conductor Range: Pre-Wired #12 THHN
• Number Of Conductors: 3-Wire Grounding
• Number Of Wires: 3-Wire
• Wire Size: #12 AWG

Certifications and Compliance

• Nema Rating: Non-NEMA

Logistics

• Carton Quantity: 20 EA

Performance

• Electrical: Current Interrupting- Certified for current interrupting at full rated current
• Electrical: Dielectric Voltage- Withstands 2,000V minimum
• Mechanical: Product Identification Ratings are a permanent part of the device
• Environmental: Flammability- UL 94V-2
• Environmental: Operating Temperature- Maximum continuous 75°C, minimum -40°C (w/o impact)

Industry Standard(s)

• Certified to CSA, C22.2, No. 42 File 285
• Fed. Spec. W-C-596
• NEMA® WD-6 Compliant
• UL Listed to UL498 File No. E2186
