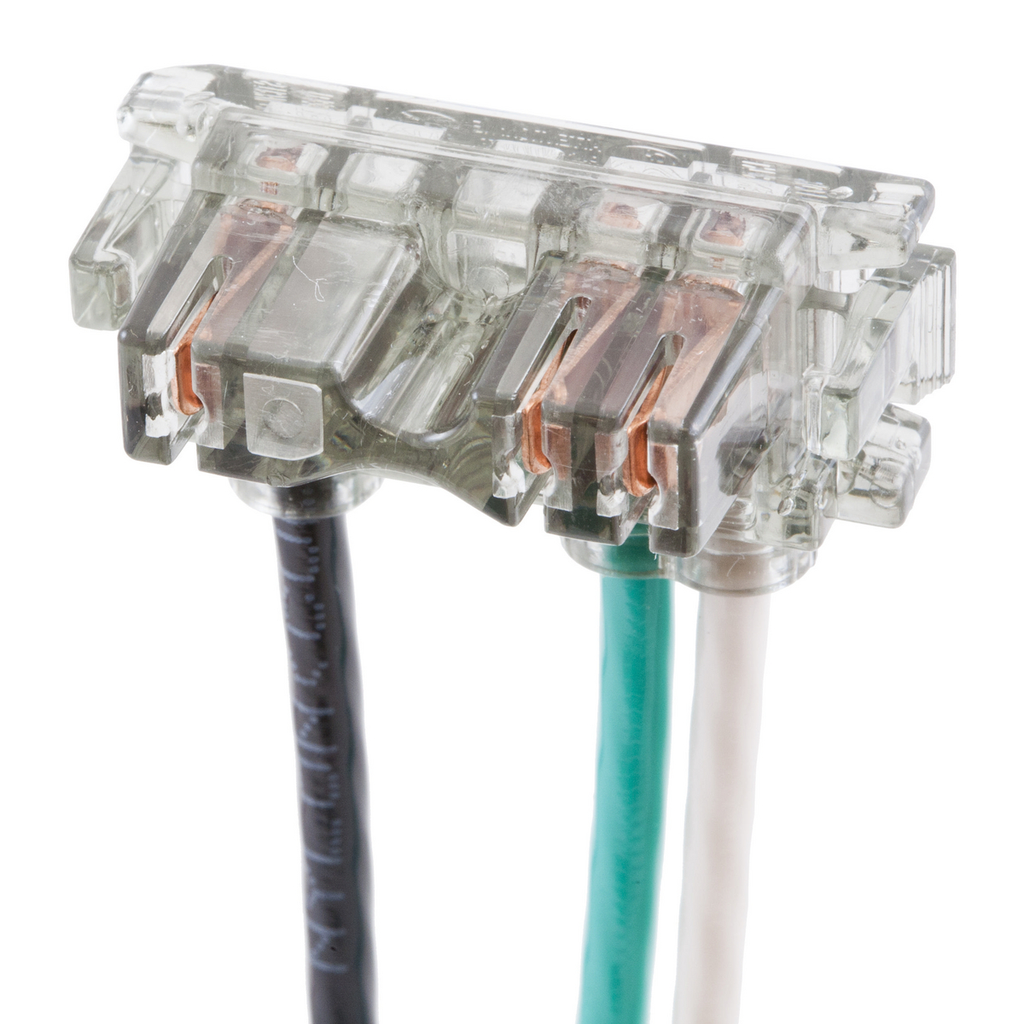

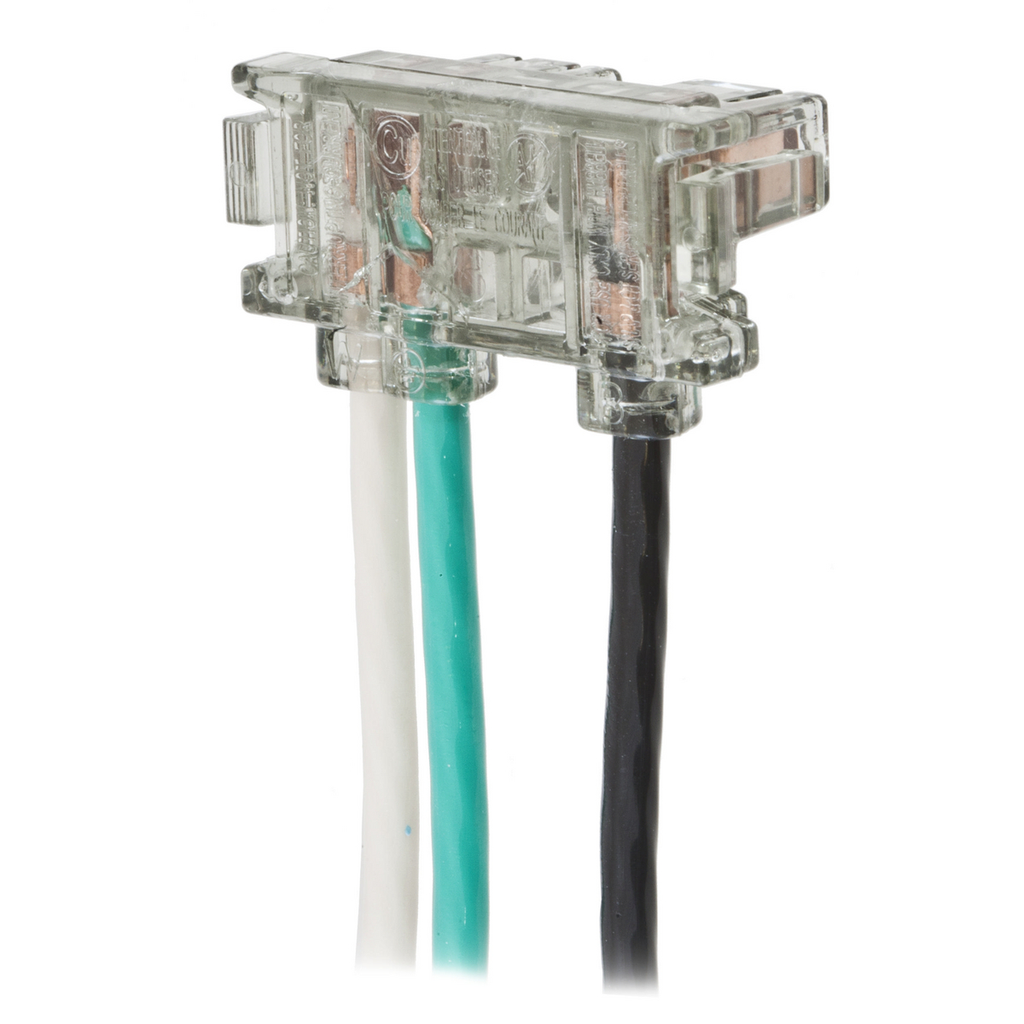

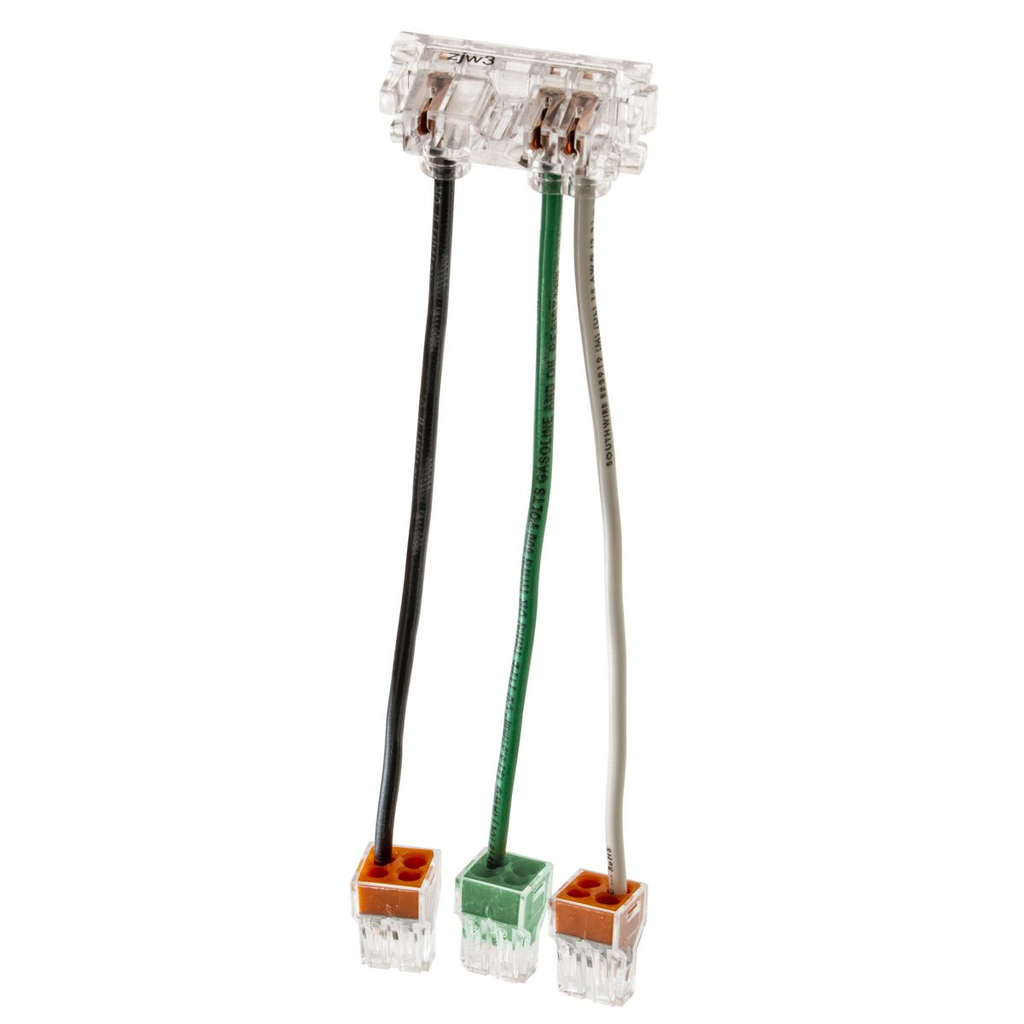

SNAPCONNECT 6" STRANDED WIRE W/PUSH-IN Connectorized Quick Connection

The SNAPCONNECT 6" stranded wire with push-in connector is designed for quick, reliable electrical connections in indoor environments. Ideal for electrical distributors and lighting solutions providers, this product facilitates efficient wiring with a fully insulated design and connectorized terminals. It is suitable for use with wire and cable installations requiring a 2-pole, 15/20 ampere rating, supporting safe and secure connections in switchgear and related applications.

Specifications

• Application: Quick Connection
• Connection: Connectorized
• Number of Poles: 2-Pole
• Amperage Rating: 15/20 A
• Width: 1.5 in
• Product Weight: 2.0000 lbs
• NEMA Rating: Non-NEMA
• Environmental Conditions: Indoor Only Unless Protected by Additional Means
• Country of Origin: Mexico
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: SNAP2RAM2

Features

• Transparent housing allows inspection of contacts
• Audible SNAP confirms solid connection
• Reduces installation time
• Fully insulated design for safety
• Compatible with #12 AWG stranded wire and push wire connectors (WAGO 773-164 and 773-114)
• Certified to UL 498 and CSA standards
