Morris Products
Snap Bushings with Shutters 1.35" (1" Trade)
SKU: #395054
Part: #22354
UPC: 601986223546
Morris Products
Snap Bushings with Shutters 1.35" (1" Trade)
SKU: #395054
Part: #22354
UPC: 601986223546
Description
Snap Bushings with Shutters 1.35" (1" Trade) – Electrical Wire Protection
The Snap Bushings with Shutters 1.35" (1" Trade) by Morris Products provide secure and flexible cable protection solutions for electrical distributors and lighting solutions providers. Designed to snap-lock into mounting holes, these bushings accommodate a range of cable sizes while protecting wires and cables from abrasion and vibration. Manufactured from UL approved Nylon 6/6 material, these bushings are suitable for use in wire and cable installations and switchgear applications requiring durable insulation and vibration cushioning.
Specifications
- Material: Nylon 6/6
- Mounting Hole Diameter: 1.35" (1" Trade)
- Maximum Cable Size ID: 1.15"

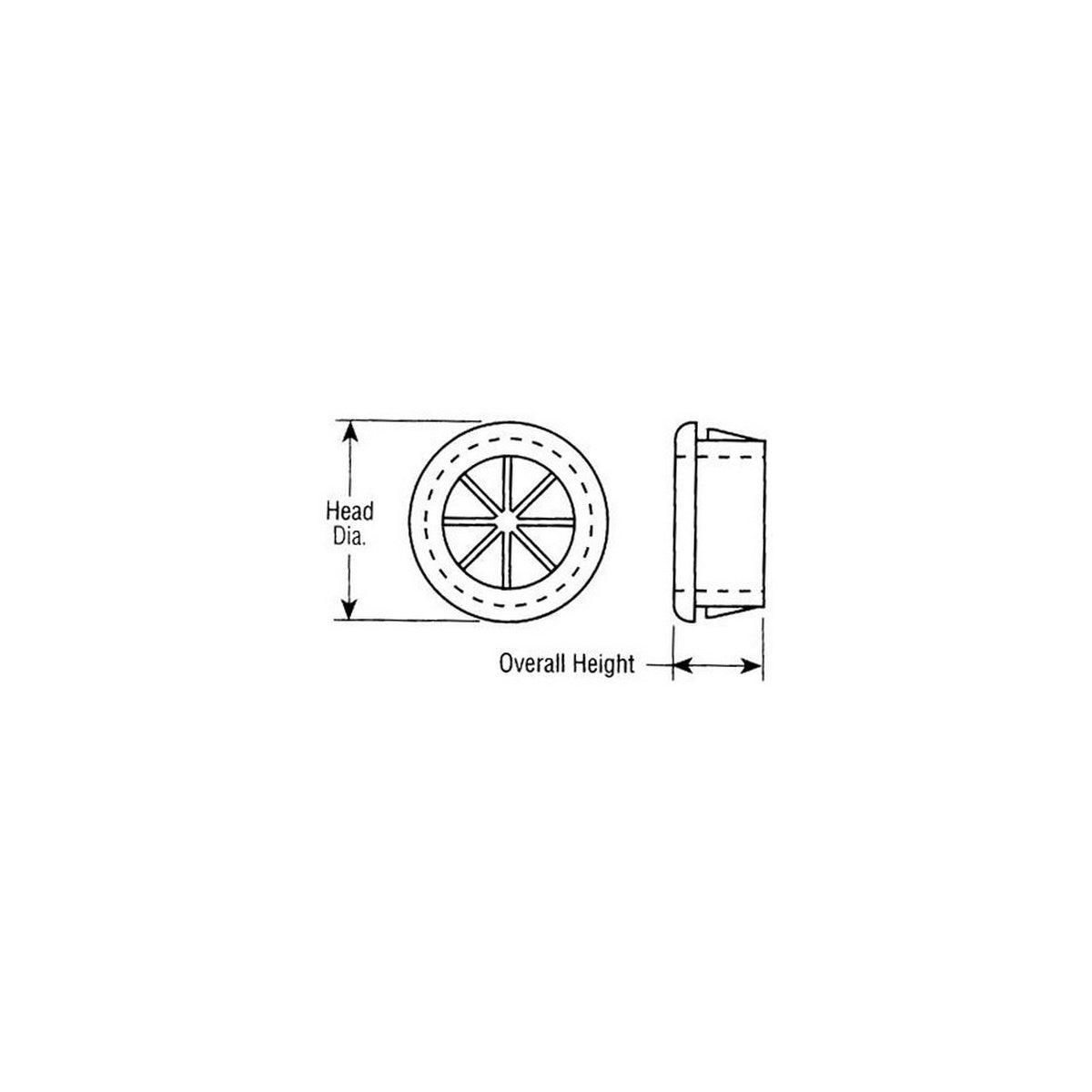

- Head Diameter: 1.48"
- Overall Height: 0.44"
- Maximum Steel Thickness: 1/8"
- Manufacturer Part #: 22354
- Product Weight: 0.0110 lbs
Features
- Fingertip pressure snap-locks the bushing into the mounting hole for easy installation
- Flexible shutters accommodate a variety of cable and hose sizes from 1/8" minimum to maximum specified
- Shutters absorb vibration and cushion cables, tubes, and wires
- Universal design fits various cable ranges
- Made from UL approved Nylon 6/6, 94V-2 flame retardant
