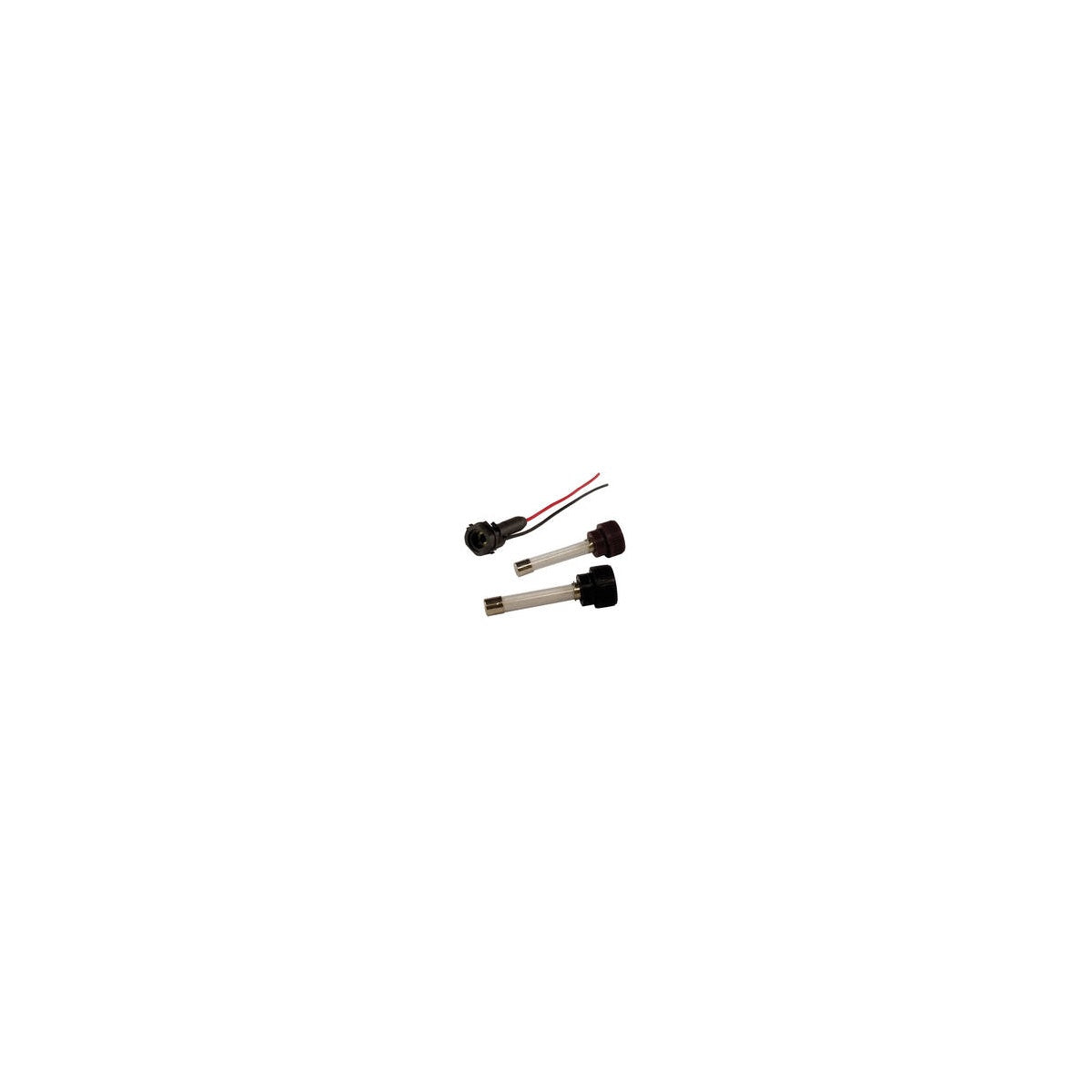

SMF - Fast-Acting Fuse for Fluorescent Lighting Protection

The SMF fast-acting fuse is designed for the protection of fluorescent lighting fixtures and ballasts. It is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable protection in 300V circuits. This fuse is part of Mersen’s line of in-line fuses, optimized for safeguarding individual lighting fixtures with fast response to overcurrent conditions.

Specifications

• Voltage Rating: 300VAC
• Amperage Rating: 1/2 to 15 amperes
• Interrupt Rating: 10 kA
• Body Material: Glass
• Contact Material: Nickel Plated Brass
• Connection Type: Bayonet
• Mounting: SHR-1 or SHR fuse holders
• Dimensions (L x W x H): 1.89 in x 0.25 in x 0.25 in
• Product Weight: 0.0100 lbs
• Manufacturer: Mersen
• Manufacturer Part Number: SMF10

Features

• Fast-acting fuse for rapid protection of lighting circuits
• Integral fuse and insulating cap design
• Compatible with Mersen SHR fuse holders for secure mounting
• Glass body provides clear visual inspection
• Nickel plated brass contacts ensure reliable electrical connection
