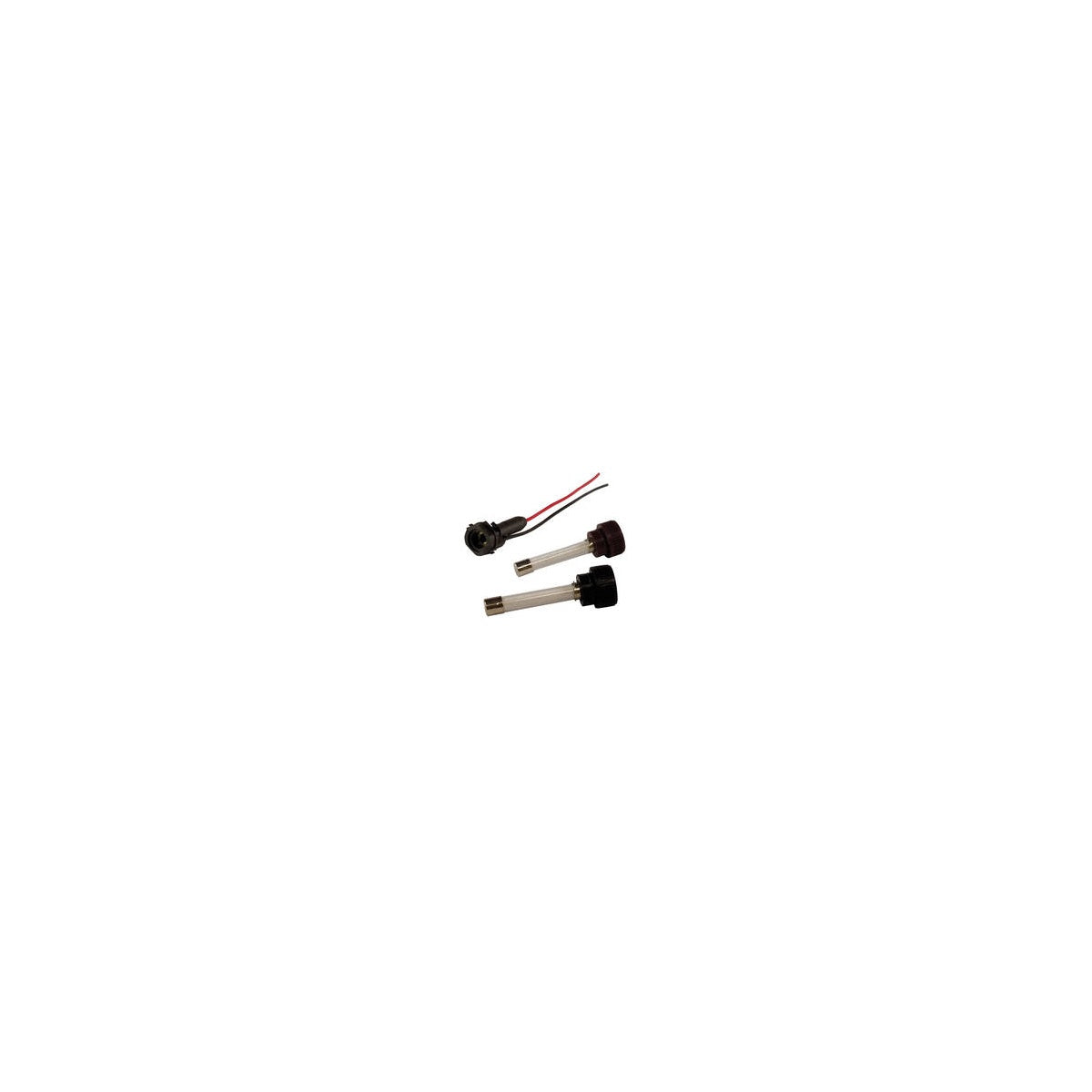

SMF - Fast-Acting Fuse for Fluorescent Lighting Protection

The SMF fast-acting fuse is designed for the protection of fluorescent lighting fixtures and ballasts, providing reliable overcurrent protection in electrical distribution systems. This fuse supports applications requiring 300V rating and is suitable for use by electrical distributors and switchgear suppliers focusing on lighting solutions and wire and cable protection.

Specifications

• Voltage Rating: 300VAC
• Amperage: 1/2 to 15 amperes
• Interrupt Rating: 10 kA
• Body Material: Glass
• Contact Material: Nickel Plated Brass
• Connection Type: Bayonet
• Mounting: SHR-1 or SHR fuse holder
• Dimensions: Length 1.89 in, Width 0.25 in, Height 0.25 in
• Product Weight: 0.0100 lbs
• Manufacturer: Mersen
• Manufacturer Part Number: SMF1

Features

• Fast-acting fuse suitable for protecting individual 300V fluorescent lighting fixtures
• Integral fuse and insulating cap for safety and ease of installation
• Designed to protect fluorescent lighting ballasts from overcurrent conditions
• Compatible with Mersen SHR fuse holders that provide secure panel mounting and anti-rotation
