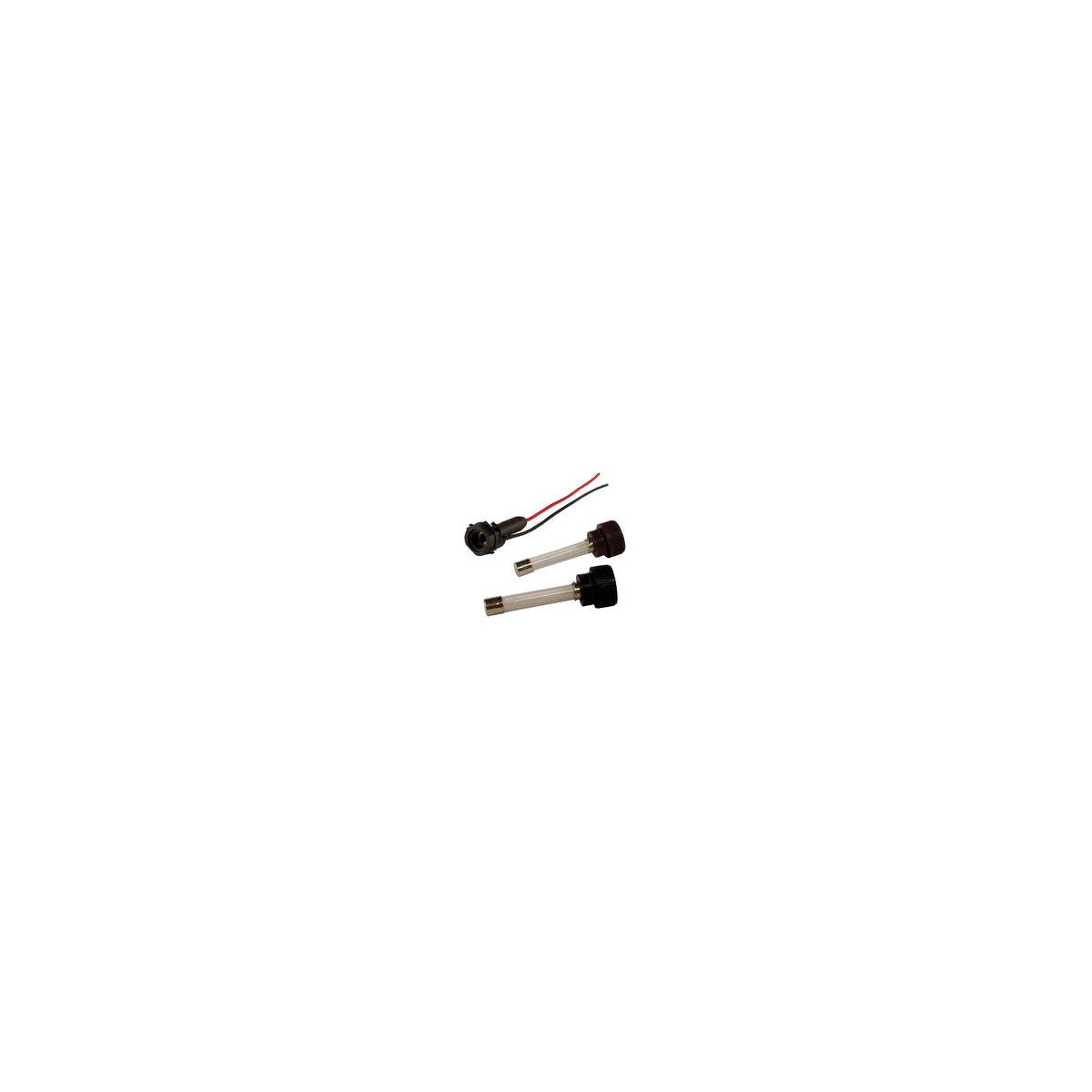

SMF - Fast-Acting Fuse for Fluorescent Lighting Protection

The SMF fast-acting fuse is designed for the protection of fluorescent lighting fixtures and ballasts, offering reliable overcurrent protection in electrical distribution and lighting solutions. This fuse is suitable for use by electrical distributors and switchgear suppliers seeking dependable wire and cable protection at 300V.

Specifications

• Voltage Rating: 300VAC
• Amperage Rating: 1/2 to 15 amperes
• Interrupt Rating: 10 kA
• Body Material: Glass
• Contact Material: Nickel Plated Brass
• Mounting: SHR-1 or SHR fuse holder
• Connection Type: Bayonet
• Dimensions: Length 1.89 in, Width 0.25 in, Height 0.25 in
• Product Weight: 0.0100 lbs
• Manufacturer: Mersen
• Manufacturer Part Number: SMF3

Features

• Fast-acting fuse for immediate response to overcurrent conditions
• Integral fuse and insulating cap for safe handling
• Designed specifically to protect individual 300V fluorescent lighting fixtures and ballasts
• Compatible with SHR fuse holders featuring integral mounting clips for panel installation
• Nickel plated brass contacts ensure reliable electrical connectivity
