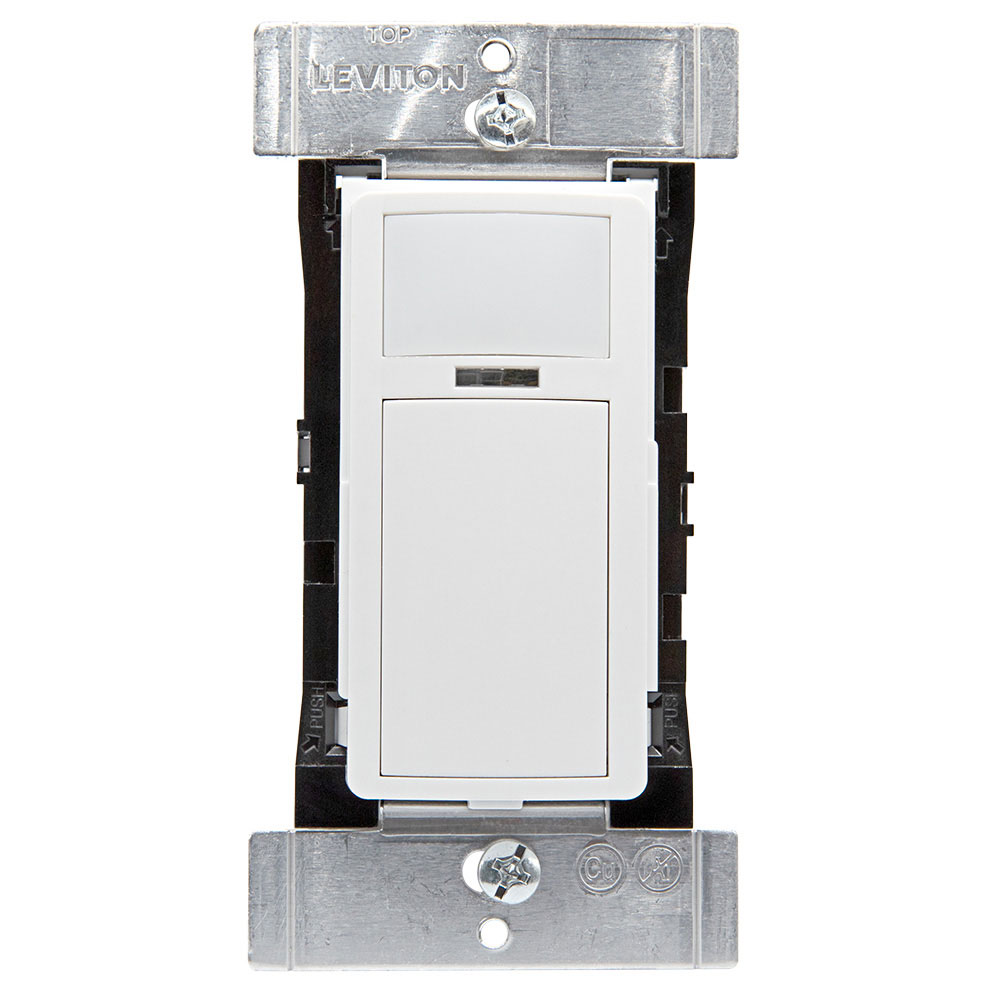

Smart Sensor, PIR, Wallbox Occupancy Sensor/Vacancy Sensor, App Configurable, 120VAC, Commercial Grade, White

This Leviton smart sensor is a commercial-grade occupancy and vacancy sensor designed for wall switch mounting. It uses passive infrared (PIR) technology with a segmented lens to detect motion within a 180° field of view, suitable for lighting control applications in commercial environments. The device supports app-based configuration via Bluetooth, enabling settings adjustments such as operating mode, sensitivity, and timer delay. It requires a neutral wire connection and operates on 120VAC at 60Hz, making it compatible with standard electrical systems. Ideal for electrical distributors and lighting solutions providers, this sensor enhances energy management by automating lighting control based on occupancy detection.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: ODS15-I1W
• Voltage: 120 VAC
• Frequency: 60 hertz
• Operating Temperature: 0 degrees Celsius to 40 degrees Celsius (32¬∞F to 104¬∞F)
• Mounting Type: Wall Switch
• Color: White
• Grade: Commercial
• Product Weight: 0.3990 lbs
• Country of Origin: China
• Network Connectivity: Bluetooth Low Energy (BLE 5.0)
• Field of View: 180¬∞ horizontal, coverage area approximately 1100 sq ft (102 m¬≤)
• Detection Range: 30 to 40 feet (9 to 12 meters) forward, 15 to 20 feet (4.5 to 6 meters) to each side
• Load Ratings: 15A for lighting or plug-in loads

Features

• PIR sensor with segmented lens for precise motion detection and occupancy sensing
• App configurable via Leviton Smart Sensor app for mode selection (Auto-ON/Auto-OFF or Manual-ON/Auto-OFF), sensitivity, and timer settings
• Supports firmware updates through the app to maintain latest functionality
• Push-to-Pair (P2P) setup enables integration of up to 5 devices for 3-way or multi-location control
• Photocell for ambient light sensing to optimize lighting control
• Integrated LED indicators provide status feedback during setup and operation
• Manual override button allows local control of lighting load
• Designed for commercial applications requiring energy-efficient lighting control
• Compatible with standard Decora-style wall plates (sold separately)
