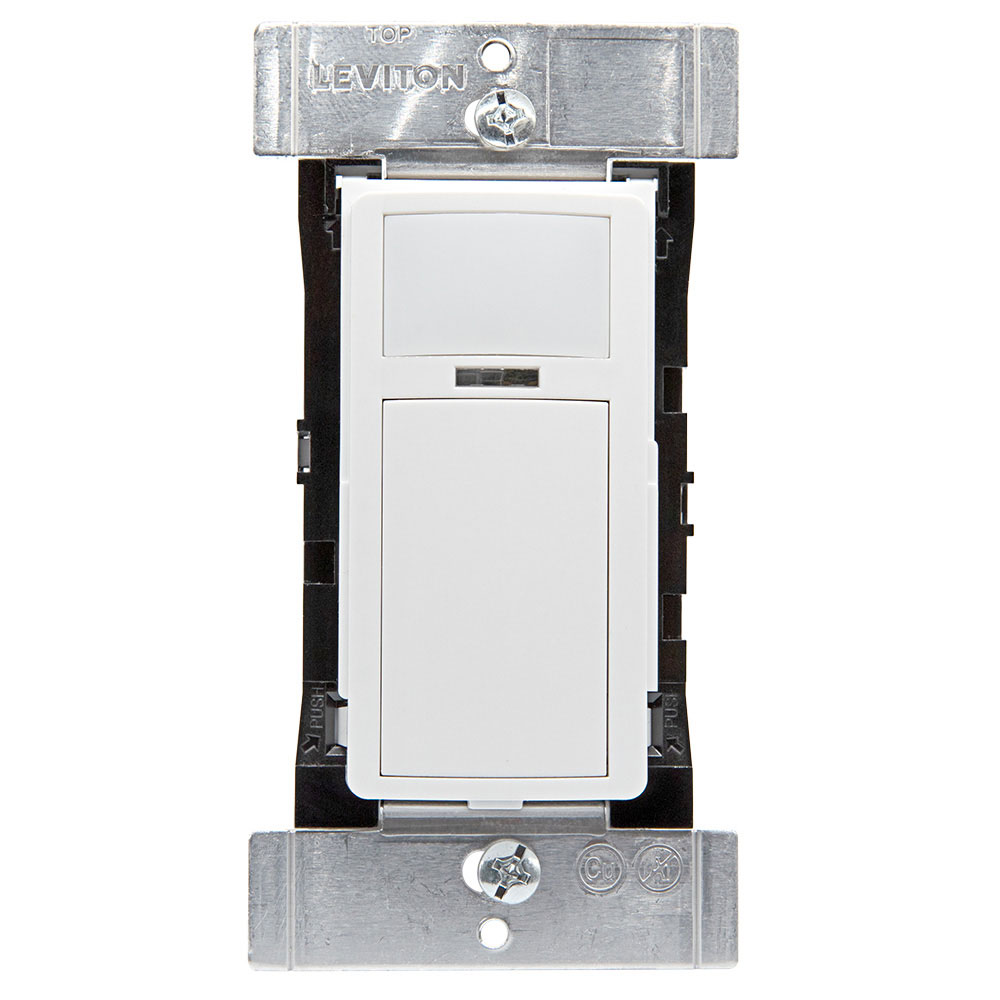

Smart Sensor, PIR, Antimicrobial, Wallbox Occupancy Sensor/Vacancy Sensor, App configurable, 120-277VAC, Commercial Grade, No Neutral Required, White

This Smart Sensor from Leviton is a commercial-grade wallbox occupancy and vacancy sensor designed for energy management in lighting control applications. It utilizes Passive Infrared (PIR) technology with antimicrobial protection and is app configurable via Bluetooth for customized settings. The sensor supports auto-ON/auto-OFF or manual-ON/auto-OFF modes and operates on 120-277VAC without the need for a neutral wire, making it suitable for retrofit and new installations in commercial environments. Ideal for electrical distributors and lighting solution providers, this sensor enhances automated lighting control in commercial spaces.

Specifications

• Input Voltage/Frequency: 120-277VAC, 50/60Hz
• Load Rating: General Purpose @ 120V/277V: 20A
• LED/CFL/Electronic Ballast @ 120V/277V: 10A
• Resistive Tungsten @ 120V/277V: 6.67A
• Motor Load @ 120V: 1/4 HP (FLA 5.8A), @ 277V: 1/3 HP (FLA 3.0A)
• Operating Temperature: 0¬∞C (32¬∞F) minimum
• Mounting Type: Wall Switch
• Color: White
• Grade: Commercial
• Product Weight: 0.4180 lbs
• Manufacturer Part Number: ODS15-GDW
• Country of Origin: China
• Network Connectivity: Bluetooth Low Energy (BLE) 4.2 and 5.0

Features

• Passive Infrared (PIR) detection with segmented lens providing a 180¬∞ field-of-view and coverage up to approximately 1100 sq. ft.
• Antimicrobial wallbox sensor housing for enhanced hygiene in commercial environments
• App configurable via Leviton Smart Sensor App for settings such as operating mode, sensor sensitivity, timeout, daylighting, and nightlight control
• Supports auto-ON/auto-OFF or manual-ON/auto-OFF operation modes
• No neutral wire required for installation, simplifying retrofit applications
• Photocell for daylight hold-off to prevent lights from turning on when sufficient daylight is detected
• Locator light indicates sensor status and aids in locating the switch in low light
• Push-button override switch for manual control of lighting
• Compatible with standard single gang and multi-gang wall boxes
• Designed for indoor commercial lighting load control up to 20A
