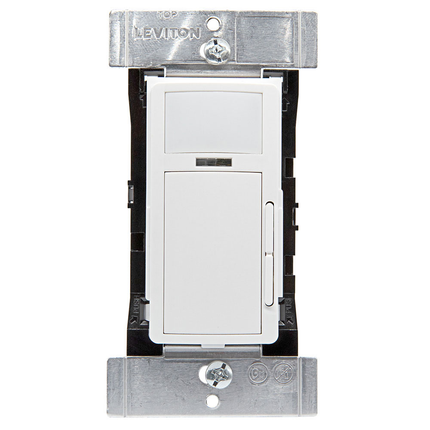

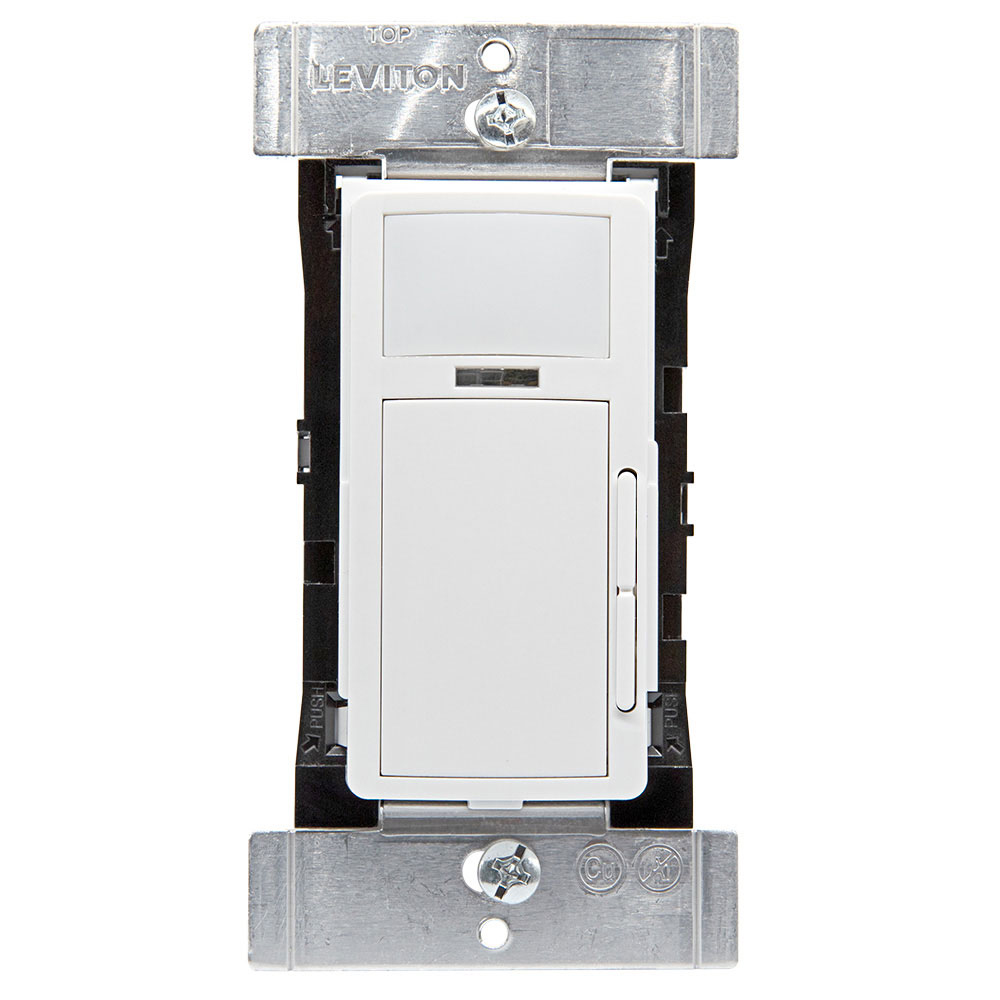

Smart Sensor, PIR, 1000W Dimming Wallbox Occupancy Sensor/Vacancy Sensor, App Configurable – Lighting Control

This commercial-grade Smart PIR Wallbox Sensor by Leviton provides occupancy and vacancy sensing with 1000W dimming control for lighting applications. Designed for installation in a standard wall switch box, it supports app-based configuration and manual or automatic ON/OFF operation. The sensor uses passive infrared (PIR) technology to detect motion within a 180° field of view, suitable for commercial lighting control and energy management solutions. It requires a neutral wire and operates at 120VAC, 50/60Hz frequency.

Specifications

• Manufacturer: Leviton
• Model Number: ODP10-I1W
• Voltage: 120 VAC
• Frequency: 50 hertz
• Load Capacity: 1000W dimming for LED, incandescent, and fluorescent
• Mounting Type: Wall Switch
• Color: White
• Grade: Commercial
• Operating Temperature: 0 degrees Celsius minimum
• Country of Origin: China
• Product Weight: 0.4180 lbs

Features

• Passive Infrared (PIR) technology for occupancy/vacancy sensing

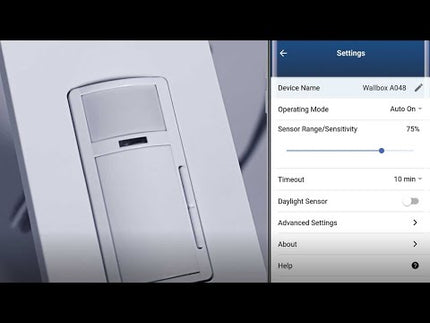

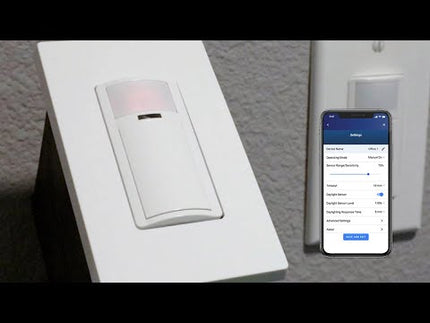

• App configurable via Leviton Smart Sensor app for advanced settings
• Supports Auto-ON/Auto-OFF or Manual-ON/Auto-OFF operation modes
• 180° field of view with detection range up to 30-40 feet for motion sensing
• Adjustable dimming via side dimmer bar for precise light level control
• Photocell for ambient light sensing to optimize energy savings
• Integrated motion indicator LED and locator light for status feedback
• Compatible with multi-location control for expanded coverage
• Meets commercial electrical codes and energy standards including IECC, ASHRAE 90.1, and Title 24 requirements
• Requires neutral wire for installation
