This small diameter sconce box is designed for retrofit construction applications, providing a secure and compact solution for mounting sconce lights up to 3 lbs. Manufactured from durable plastic and finished in black, it is suitable for electrical distributors and lighting solutions providers needing reliable fixture boxes compatible with retrofit installations. The box features a 3-1/4" diameter with a 6.8 cubic inch interior volume, allowing most sconce light canopies to cover the box completely for a clean installation.

Specifications

• Diameter: 3-1/4"
• Interior Volume: 6.8 cu. in.
• Material: Plastic
• Color: Black
• Weight: 0.1900 lbs
• Maximum Sconce Light Rating: 3 lbs
• Fits Double Drywall or up to 1.90" Thickness
• Manufacturer Part #: FSC3212R
• UPC: 018997436337

Features

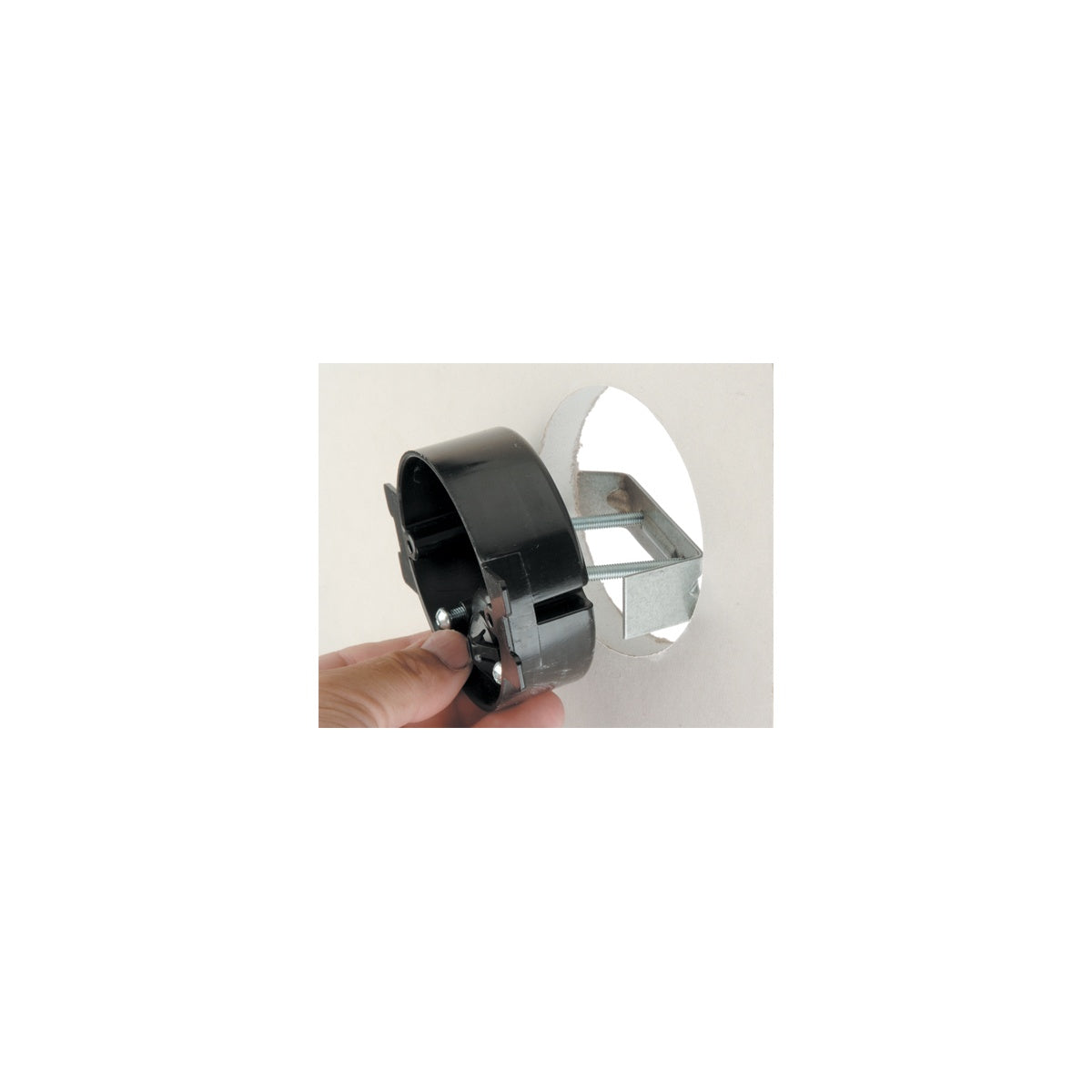

• Ready to use, easy to install with no loose parts
• Self-contained design ships with installed NM cable connector and captive fixture bracket screws
• Small diameter allows most sconce light canopies to fully cover the box

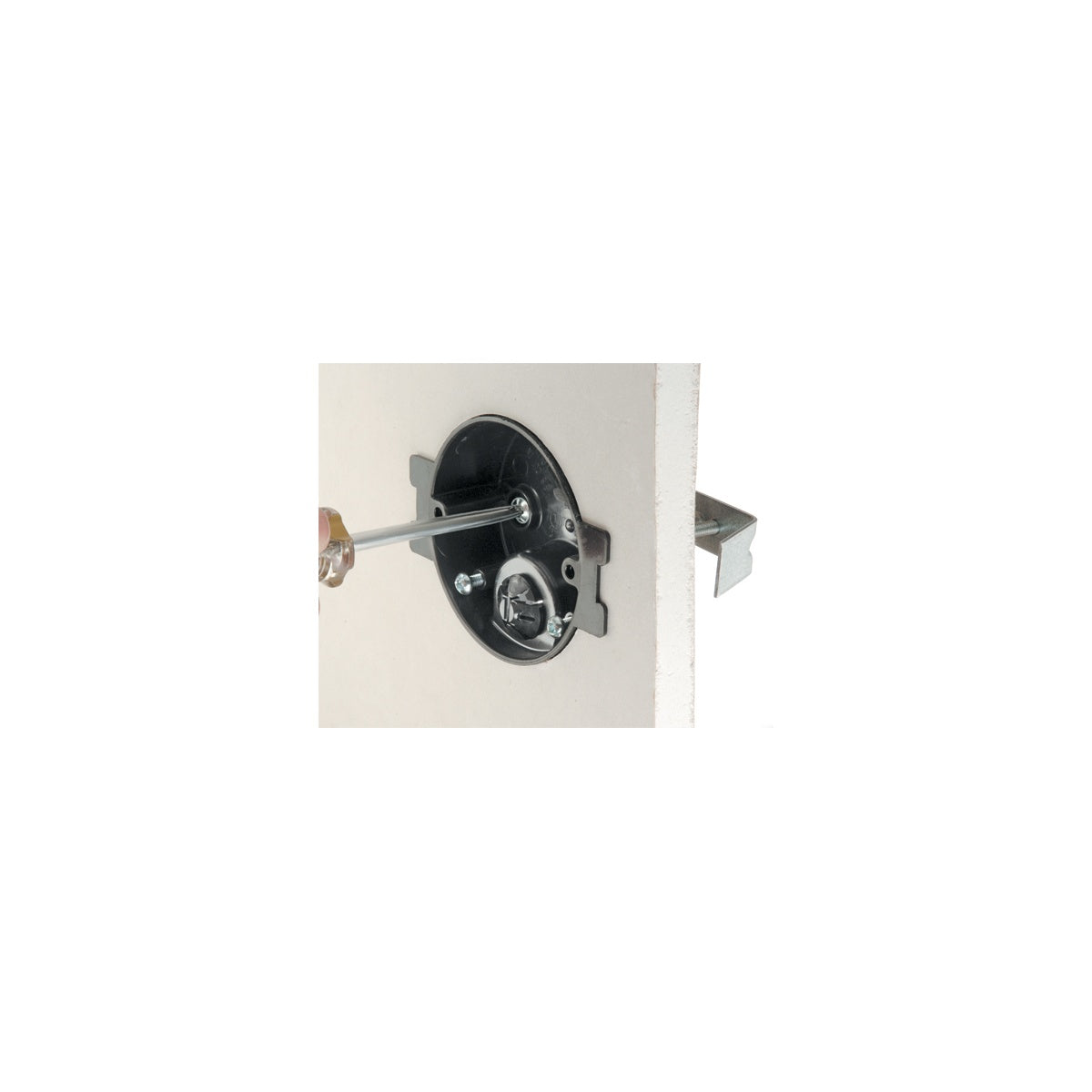

• Secures by tightening screws that pull the bracket against drywall
• Patented design for retrofit construction

Downloads & Links

• Catalog Page
• FSC3212R Line Drawing
