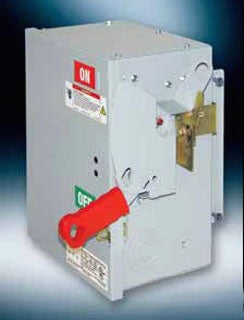

SLVBR4650IG Busway Fusible Switch – Heavy Duty Electrical Switchgear

The SLVBR4650IG Busway Fusible Switch by Siemens is designed for heavy-duty electrical distribution applications. It is suitable for use in busway systems, providing reliable switching and protection for 3-phase, 4-wire electrical circuits. This fusible switch supports a maximum voltage rating of 600 volts AC and a current rating of 400 amperes, making it ideal for industrial and commercial power distribution. Its isolated grounding and IP40 enclosure rating ensure safe operation and protection against solid objects, while UL certification confirms compliance with industry safety standards.

Specifications

• Manufacturer: Siemens
• Model Number: SLVBR4650IG
• Voltage Rating: 600 Volt AC
• Current Rating: 400 amperes
• Number of Poles: 4
• Circuit Configuration: 3-Phase, 4-Wire
• Grounding: Isolated
• Enclosure Rating: IP40
• Orientation: Riser
• Suitability: Busway Systems
• Certification: UL Approved
• Product Weight: 145 lbs

Features

• Heavy Duty Fusible Switch designed for high-reliability switching and protection
• Compatible with Sentron II Busway accessories
• Isolated ground type enhances safety and system integrity
• Riser orientation for vertical busbar configuration
• Complies with REACH regulations for environmental safety

Downloads & Links

• Data Sheet
