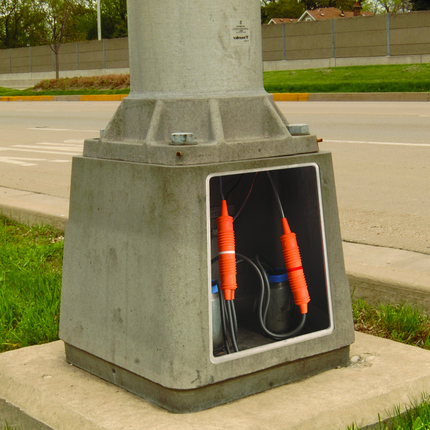

SLK® Disconnect Kit, In-Line Breakaway Set Screw, Non-Fused – Electrical Disconnect

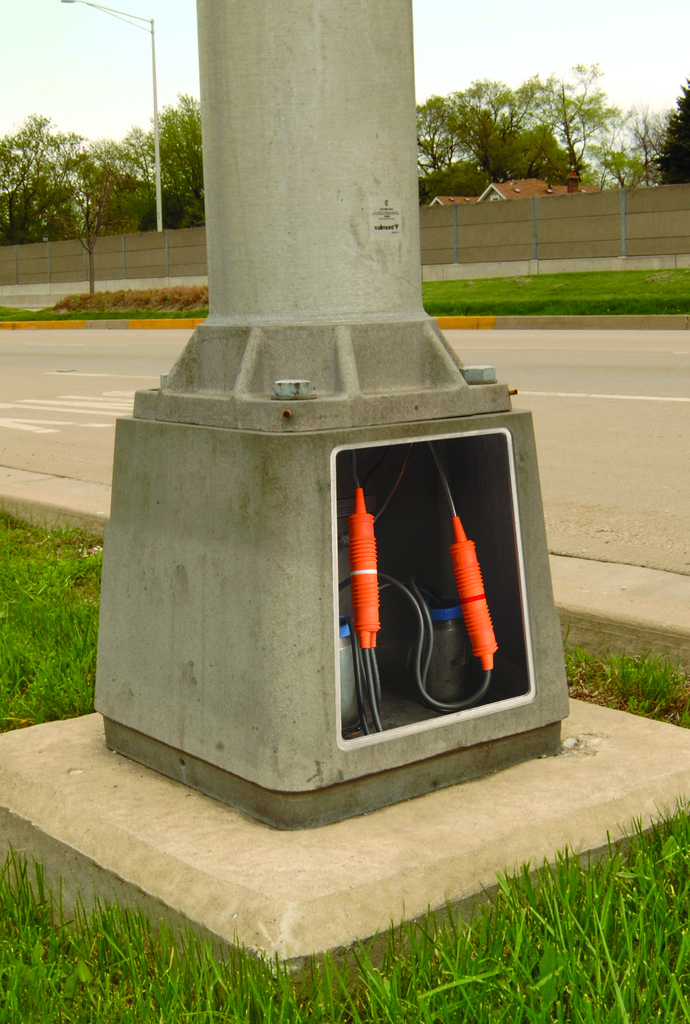

The SLK® Disconnect Kit, In-Line Breakaway Set Screw, Non-Fused by IDEAL Industries is a waterproof breakaway fuseholder designed for electrical distributors and lighting solutions involving roadway, street, and parking lot lighting, as well as free-standing electric vehicle charging stations. This non-fused set screw disconnect kit facilitates safe de-energization of electrical fixtures during maintenance or knockdown events, enhancing safety for service personnel and first responders. It supports wire and cable connections with a wide wire range and is suitable for use in wet or submersible installations.

Specifications

• Amperage Rating: 30A
• Color: Orange
• Application: In-Line Breakaway, set screw; non-fused; 1 wire line side, 2-14 AWG; 2 wire load side, 2-14 AWG
• Product Weight: 0.2000 lb
• Manufacturer: IDEAL Industries
• Manufacturer Part #: 30-S1222N
• Electrical Rating: 30A, 600V
• Temperature Rating: 105°C
• Fuse Size Accepted: 1-1/2” x 13/32” (though non-fused in this model)
• Wire Range: 2 AWG – 14 AWG, Copper & Aluminum rated
• UL Listed ECIS Special Purpose Connector (UL 486A/B, UL 486D, UL 498, UL 1682 compliant)

Features

• Waterproof breakaway fuseholder suitable for submersible installations
• Bright orange color for high visibility in junction boxes, hand holes, and low-light conditions
• Set screw termination for secure wire connection
• Wide wire range compatibility (2-14 AWG) supporting both copper and aluminum conductors

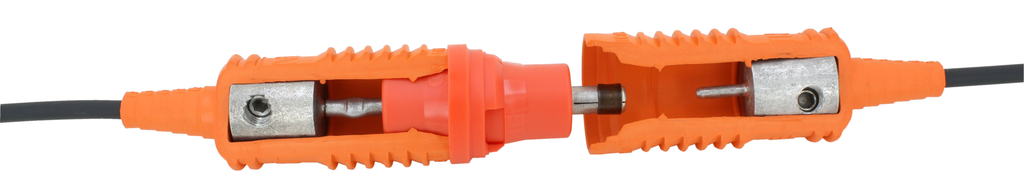

• Pin-and-socket disconnect feature for reliable electrical separation
• UL 94V-2 flame rated material for enhanced safety
• Designed to protect personnel by safely disconnecting power during maintenance or knockdown events
• Compatible with 1 wire line side and 2 wire load side configurations
