SLK® Disconnect Fused Kit, In-Line Breakaway Crimp,1 Line/2 Load
SKU: #204396
Part: #30-C1626
UPC: 783250742318
SLK® Disconnect Fused Kit, In-Line Breakaway Crimp,1 Line/2 Load
SKU: #204396
Part: #30-C1626
UPC: 783250742318
Next day delivery
Description

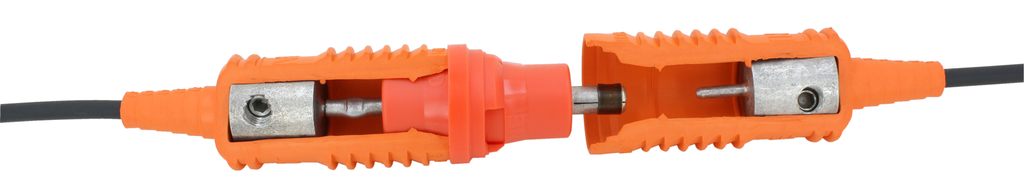

SLK® Disconnect Fused Kit, In-Line Breakaway Crimp, 1 Line/2 Load – Waterproof Electrical Safety Device

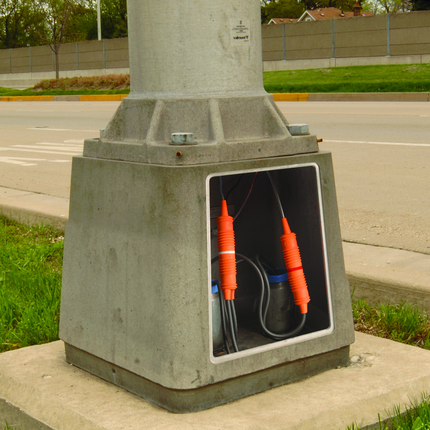

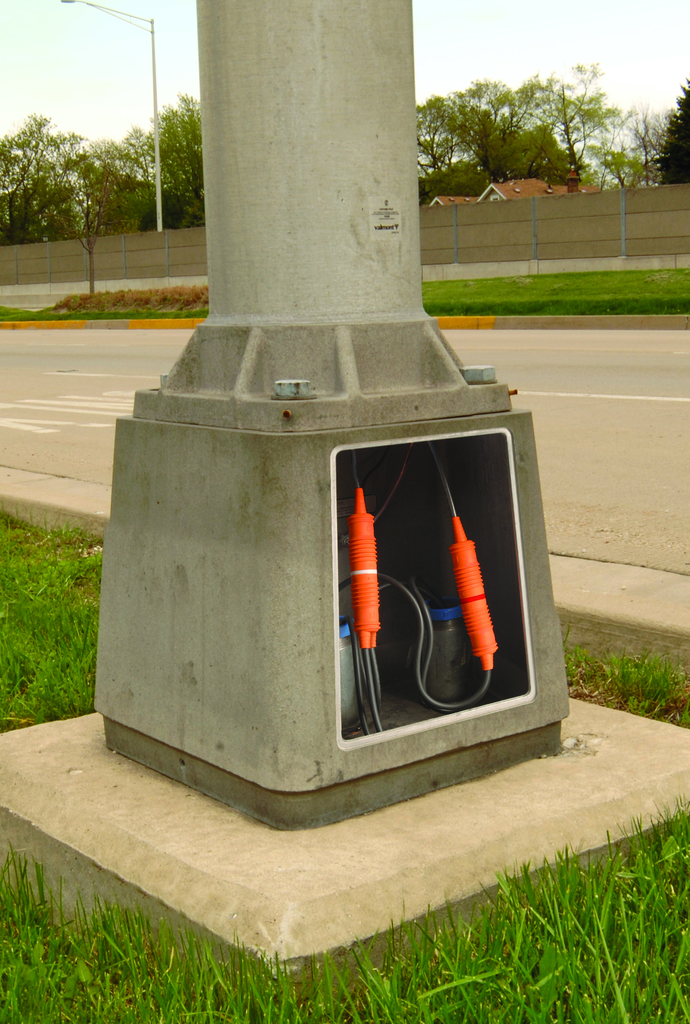

The IDEAL SLK® Disconnect Fuse Kit is a waterproof breakaway safety device designed for electrical distributors and switchgear suppliers to de-energize roadway lights, streetlights, parking lot lights, and other freestanding electrical fixtures during knockdowns or maintenance. This device enhances safety by protecting first responders, bystanders, and service personnel from electrical shock hazards. Engineered for durability, it complies with UL’s ECIS special purpose connectors category, including UL 486D submersibility standards, ensuring reliable performance in wet environments such as pole bases, junction boxes, and hand holes. Its bright orange color improves visibility in low-light or debris-filled conditions.
Specifications
- Amperage Rating: 30A
- Application: In-Line Breakaway, crimp; fused; 1 wire line side, 6-14 AWG; 2 wire load side, 10-14 AWG
- Color: Orange
- Electrical Rating: 30 A, 600 V
- Temperature Rating: 105°C
- Fuse Size Accepted: 1-1/2” x 13/32” midget-style fuse
- Wire Range: 2 AWG to 14 AWG (Copper and Aluminum rated)
- Fuseholder Flame Rating: UL 94V-2
- Product Weight: 0.2000 lbs
- Manufacturer Part #: 30-C1626
Features
- Waterproof breakaway fuseholder suitable for wet and submersible installations
- UL Listed ECIS special purpose connector compliant
- Bright orange high-visibility material for easy location in dark or debris-filled junction boxes
- Crimp termination for secure wire connections
- Accepts midget-style fuses to protect circuits effectively
- Compatible with copper and aluminum conductors
- Designed to de-energize electrical fixtures safely during knockdown events or maintenance
