SLK® Disconnect Fused Kit, 2-Pole Dual, Set-Screw 2-Line/2-Load – Waterproof Electrical Disconnect Fuse Kit

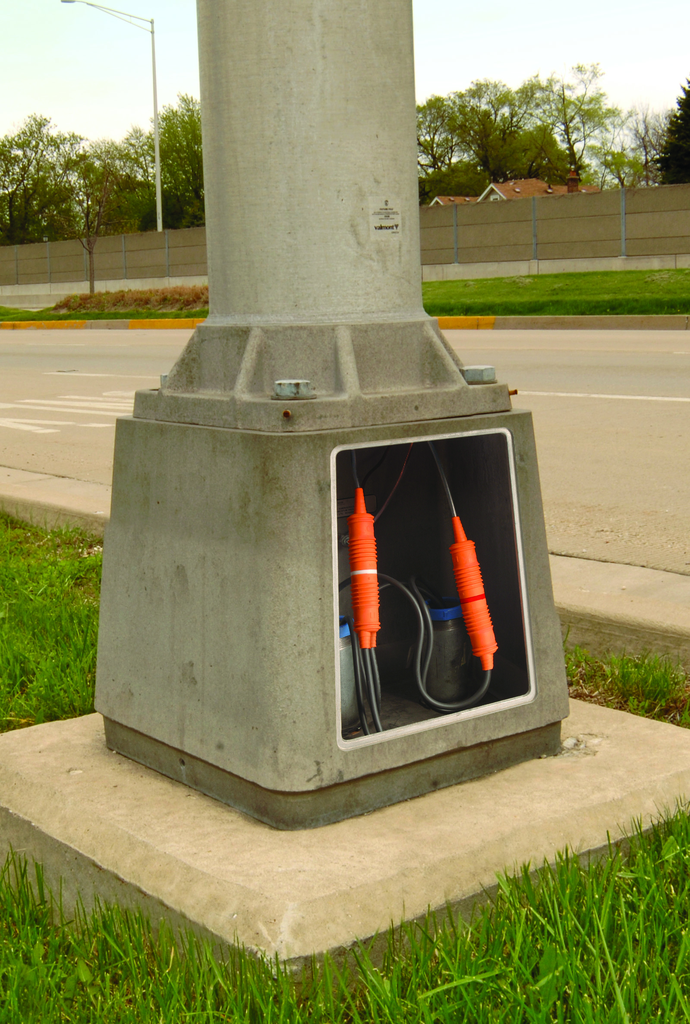

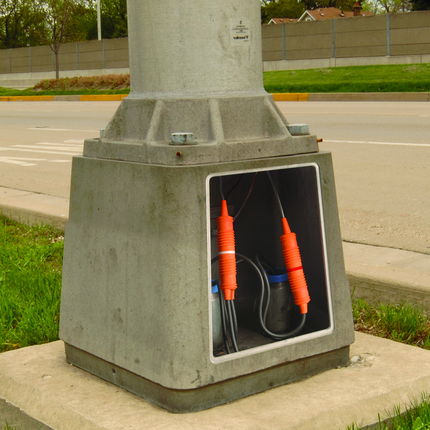

The IDEAL SLK® Disconnect Fuse Kit is a waterproof breakaway safety device designed to de-energize roadway lights, streetlights, parking lot lights, and other freestanding electrical fixtures during knockdowns or maintenance. This product enhances safety for first responders, bystanders, and service personnel by reducing electrical shock hazards. Ideal for electrical distributors and lighting solutions providers, it supports wire and cable applications with a focus on outdoor, wet, and submersible environments commonly found in pole bases, junction boxes, and hand holes.

Specifications

• Application: Dual Y-Tap Breakaway, set screw; fused; 2 wire line side, 2-14 AWG; 2 wire load side, 2-14 AWG
• Amperage Rating: 30A
• Electrical Rating: 30 A, 600 V (15A max. fuse size for #12 Al & #14 Cu)
• Temperature Rating: 105°C
• Fuse Size Accepted: 1-1/2” x 13/32” midget-style fuse
• Wire Range: 2 AWG – 14 AWG (Copper & Aluminum rated)
• Fuseholder Flame Rating: UL 94V-2
• Color: Orange (high-visibility for ease of locating in dark or buried installations)
• Weight: 0.95 lbs
• UL Listed ECIS Special Purpose Connector compliant, including UL 486D for submersibility

Features

• Waterproof and submersible design suitable for wet environments around pole bases and junction boxes
• Bright orange color improves visibility in dark or debris-filled locations
• Set screw termination for secure wire connections
• Accepts both copper and aluminum conductors

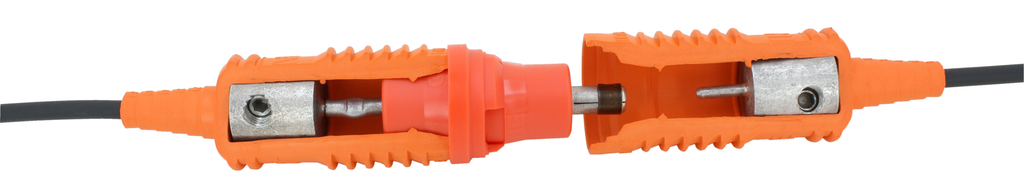

• Breakaway fuseholder design de-energizes load side upon disconnection, enhancing safety
• Complies with multiple UL standards including UL 486A/B, UL 486D, UL 498, and UL 1682
• Ribbed boots provide superior grip for installation and maintenance
• Fuse remains on de-energized load side when disconnected
