SLIM26W
SKU: #115742
Part: #SLIM26W
UPC: 019813040516
SLIM26W
SKU: #115742
Part: #SLIM26W
UPC: 019813040516
Next day delivery
Description
SLIM26W LED Wall Pack Lighting Solutions
The SLIM26W by RAB is a compact, ultra-efficient LED wall pack designed for reliable outdoor lighting applications. Ideal for electrical distributors and lighting solutions providers, this fixture delivers high lumen output with low power consumption, making it suitable for commercial and industrial environments. The unit can be installed as a downlight or uplight, providing versatile illumination options. Its durable construction and advanced LED technology support long-term performance and energy savings.
Specifications
- Manufacturer: RAB
- Input Wattage: 30 watts
- Lumens: 3,523 lumens
- Efficacy: 119 lumens per watt
- Color Temperature: 5100 kelvins (Cool)
- Color Accuracy (CRI): 75
- Lens Material: Tempered Glass
- Ambient Temperature Rating: 104 degrees Fahrenheit (40°C)
- Product Weight: 4.1 lbs

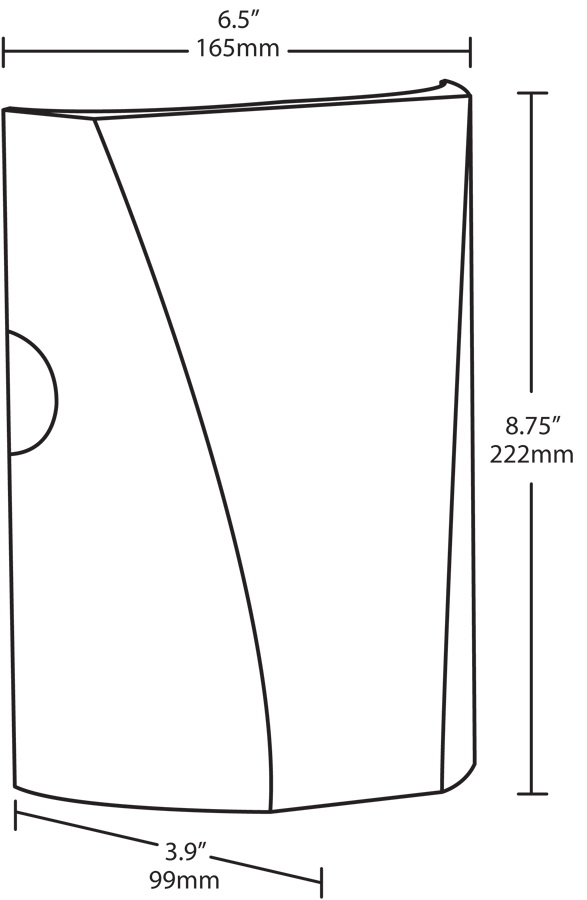

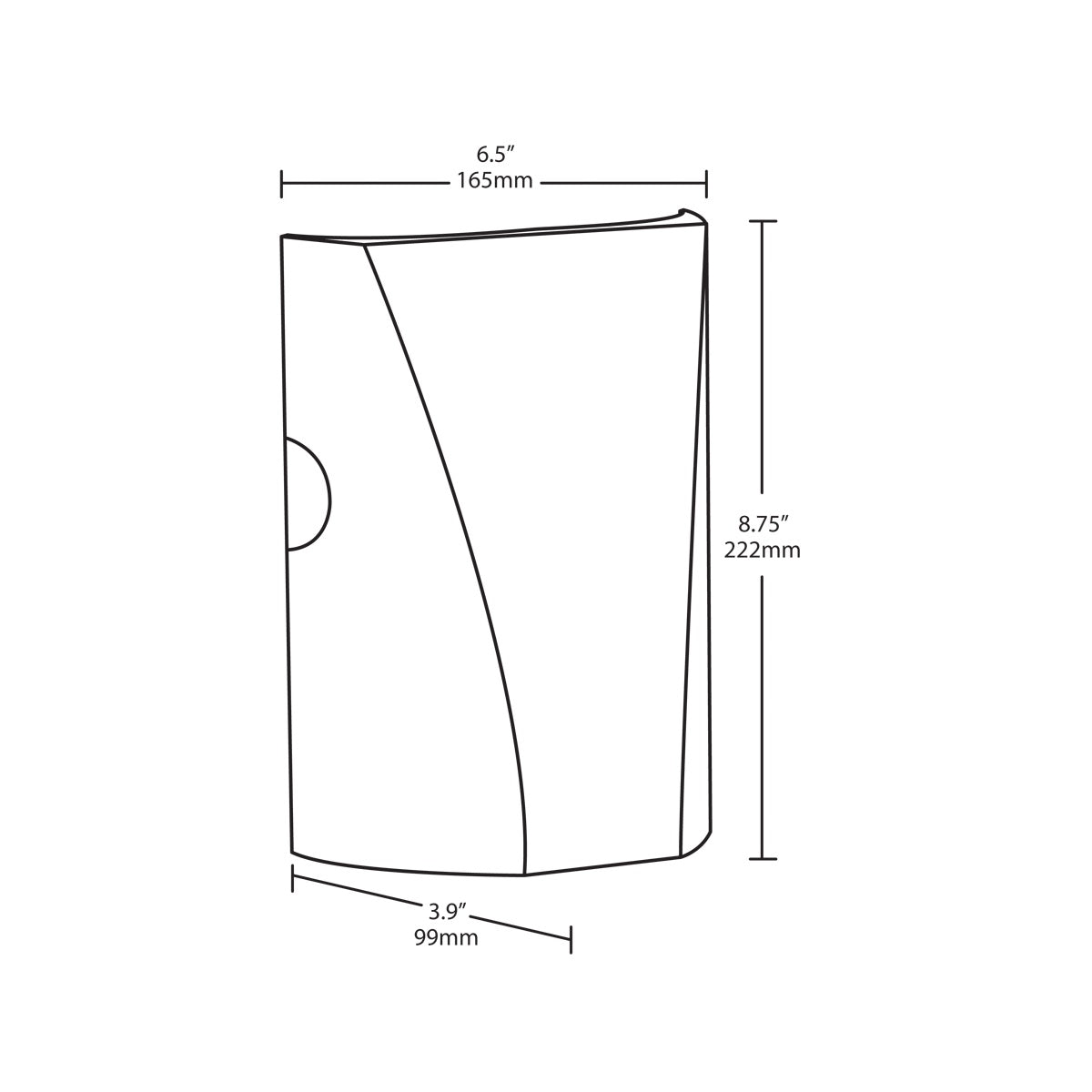

- Dimensions: 6.5" W x 8.75" H x 3.9" D (165mm x 222mm x 99mm)
- IP Rating: IP66 for dust and water protection
- Driver Type: Constant Current, 100-277V, 50/60 Hz, 6KV surge protection
- Recommended Mounting Height: Up to 22 feet
- Lifespan: 100,000 hours (L70)
- Warranty: 5-Year, No-Compromise Warranty
- Compliance: UL Listed for wet locations, ADA Compliant, DLC Listed
Features
- Full cutoff, fully shielded LED wall pack design
- Can be used as a downlight or uplight for flexible lighting solutions
- Precision die-cast aluminum housing with high durability finish
- Heavy-duty mounting bracket with hinged housing for easy installation
- Specular thermoplastic reflector and high-temperature silicone gaskets
- Mercury and UV free; RoHS-compliant components for green technology
- 7-step MacAdam Ellipse color binning for consistent color uniformity
- Equivalency to 150W Metal Halide, replacing up to 175W Metal Halide
- Contractor-friendly features to simplify installation and maintenance
