SLIM26 LED Wall Pack Lighting Solutions

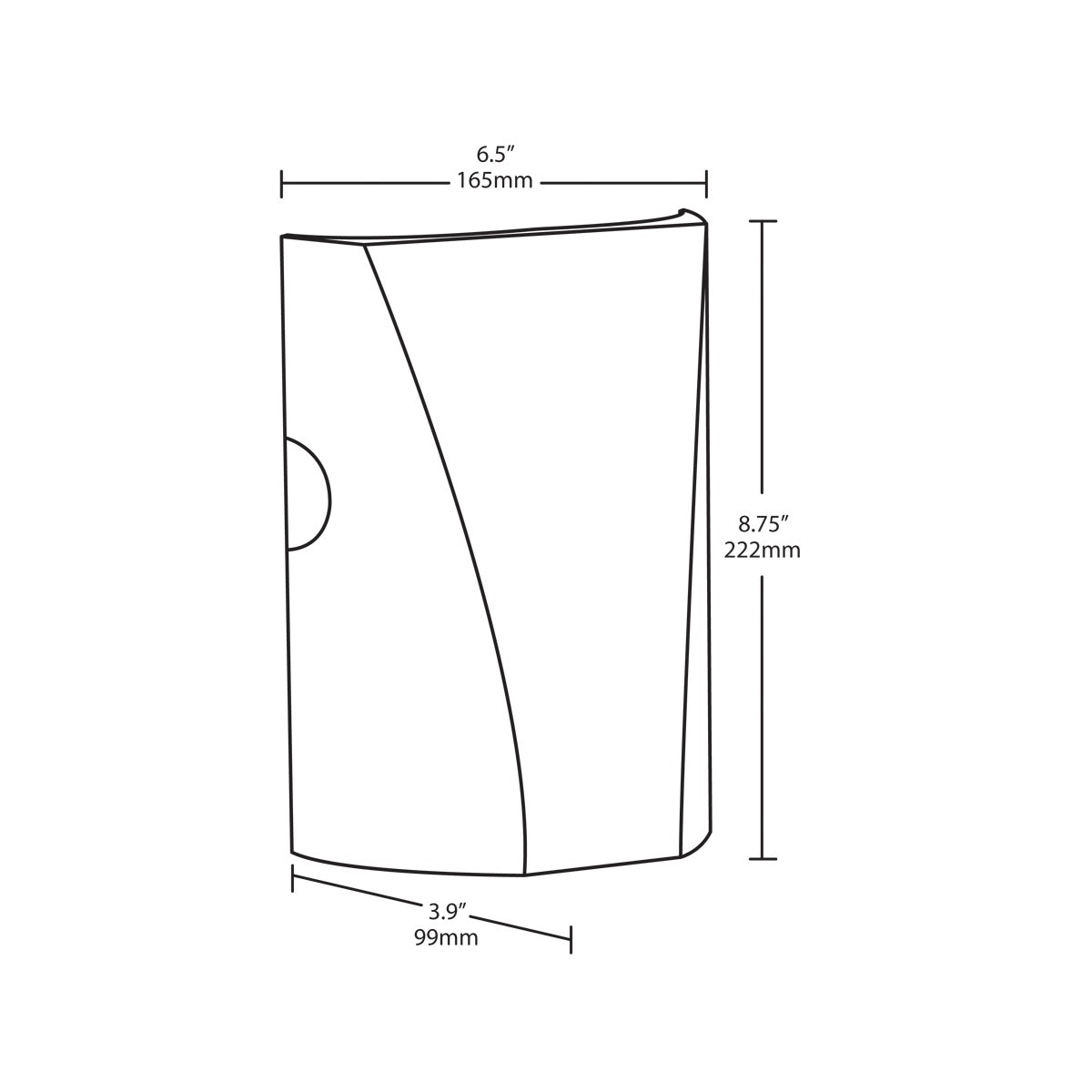

The SLIM26 is a 26-watt LED wall pack designed for efficient outdoor lighting applications. It provides a compact, low-profile design suitable for use as a downlight or uplight. This product is ideal for electrical distributors and lighting solution providers seeking reliable, energy-efficient fixtures for commercial and industrial installations. It features a durable die-cast aluminum housing with tempered glass lens, ensuring long-lasting performance in wet locations.

Specifications

• Lumens: 3,523 lumens
• Efficacy: 119.4 lumens per watt
• Input Wattage: 29.5 watts
• Color Temperature: 5100 kelvins (Cool)
• Color Accuracy: 75 CRI
• Product Weight: 4.5 lbs
• Lens Material: Tempered Glass
• Maximum Ambient Temperature: 104 degrees Fahrenheit (40°C)
• Housing: Precision die-cast aluminum
• Mounting: Heavy-duty mounting bracket with hinged housing for easy installation
• Recommended Mounting Height: Up to 22 feet
• Ingress Protection Rating: IP66 for dust and water
• Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, with 6KV surge protection
• LED Lifespan: 100,000 hours (L70)
• Finish: Formulated for high durability and long-lasting color
• Reflector: Specular thermoplastic
• Gaskets: High-temperature silicone
• Compliance: UL Listed for wet locations, ADA Compliant, DLC Listed (DLC Product Code: P0000171S)

Features

• Full cutoff, fully shielded LED wall pack
• Can be used as a downlight or uplight
• Contractor-friendly design for easy installation
• 100,000-hour LED life for long-term reliability
• 5-year, no-compromise warranty
• Mercury and UV free with RoHS-compliant components
• Equivalent to 150W Metal Halide, replacing 175W Metal Halide
