Description
SLIM18Y/PC LED Wall Pack Lighting Solutions
The SLIM18Y/PC is a compact, ultra-efficient LED wall pack designed for both downlight and uplight applications. Manufactured by RAB, this lighting solution is suitable for electrical distributors and switchgear suppliers seeking reliable, high-performance outdoor lighting. It delivers 2,543 lumens at 3000K warm color temperature with an efficacy of 119 lumens per watt, making it ideal for commercial and industrial environments requiring durable, energy-efficient illumination.
Specifications
- Input Wattage: 21 watts
- Lumens: 2,543 lumens
- Efficacy: 119 lumens per watt
- Color Temperature: 3000 kelvins
- Color Accuracy: 71 CRI
- Lens Material: Tempered Glass
- Product Weight: 4.1 lbs
- Minimum Starting Temperature: -40°C (-40°F)
- Maximum Ambient Temperature: 40°C (104°F)

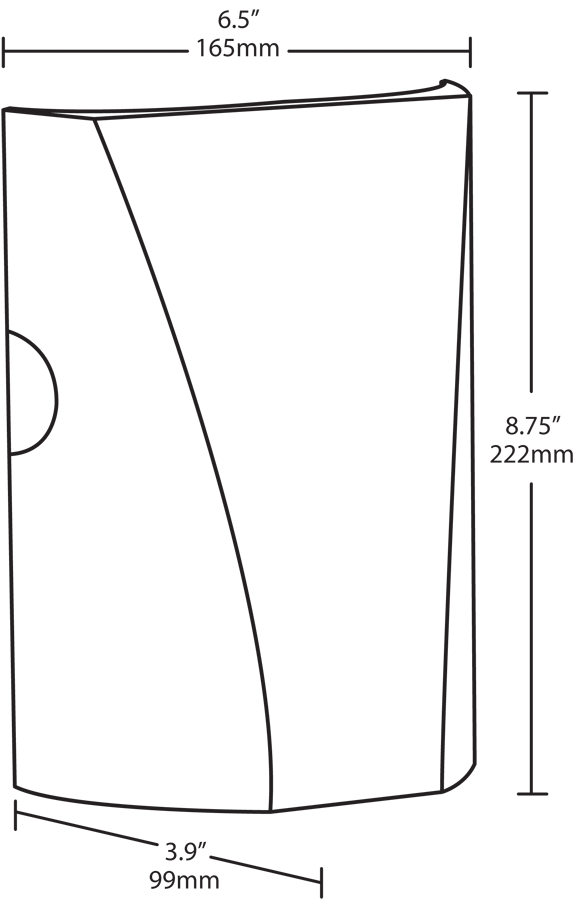

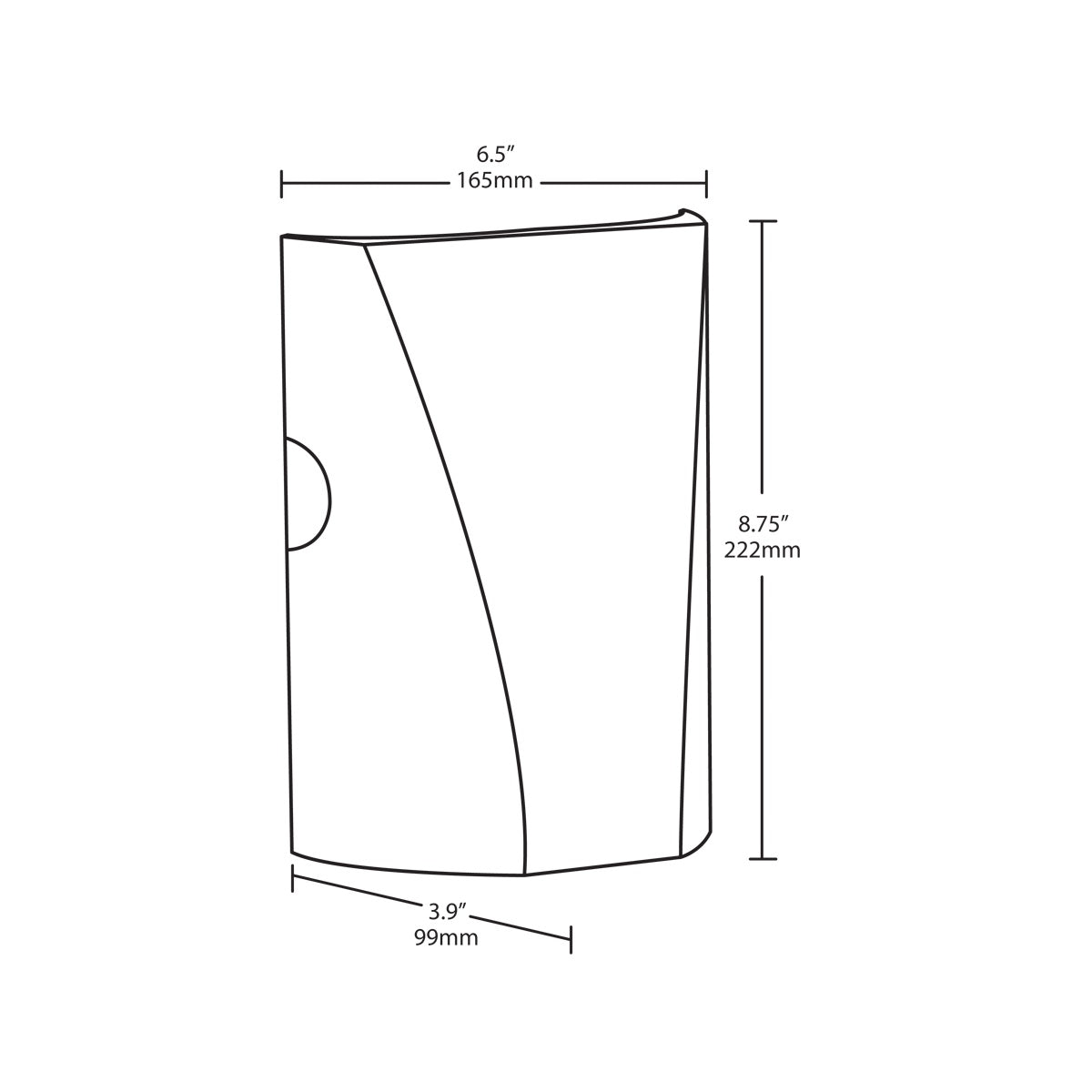

- Dimensions: 6.5" (165mm) W x 8.75" (222mm) H x 3.9" (99mm) D
- Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 4KV surge protection
- Power Factor: 99.2% at 120V, 91.5% at 277V
- THD: 11% at 120V, 21% at 277V
- Photocell: 120V button photocell included (compatible only with 120V)
- IP Rating: IP66 for dust and water protection
- Lifespan: 100,000 hours (based on IES LM-80 and TM-21 calculations)
- BUG Rating: B1 U0 G0
Features
- Full cutoff, fully shielded LED wall pack
- Can be used as a downlight or uplight
- Precision die-cast aluminum housing with high durability finish
- Specular thermoplastic reflector with tempered glass lens
- High-temperature silicone gaskets for weatherproof sealing
- Contractor-friendly mounting bracket with hinged housing for easy installation
- Mercury and UV free, RoHS-compliant components
- 3-step MacAdam Ellipse binning for consistent color
- Color temperature stability within 200K over 5 years
- Replaces 100W Metal Halide fixtures
- ADA Compliant and UL Listed for wet locations
- Design Lights Consortium (DLC) Qualified for rebate eligibility
- 5-Year warranty covering light output, color stability, driver performance, and fixture finish
