SLIM18 LED Wall Pack Lighting Solutions

The SLIM18 is a compact, ultra-efficient LED wall pack designed for versatile outdoor lighting applications. Suitable for use as a downlight or uplight, this fixture is ideal for electrical distributors and lighting solutions providers seeking reliable, energy-saving options. It delivers high-quality illumination with a low-profile design, making it suitable for commercial and industrial environments requiring durable and easy-to-install lighting.

Specifications

• Manufacturer: RAB
• Input Wattage: 21 watts
• Lumens: 2,556 lumens
• Efficacy: 121 lumens per watt
• Color Temperature: 5100 kelvins (Cool)
• Color Accuracy: 75 CRI
• Lens Material: Tempered glass
• Product Weight: 4.1 lbs
• Minimum Starting Temperature: -40°C (-40°F)
• Maximum Ambient Temperature: 40°C (104°F)

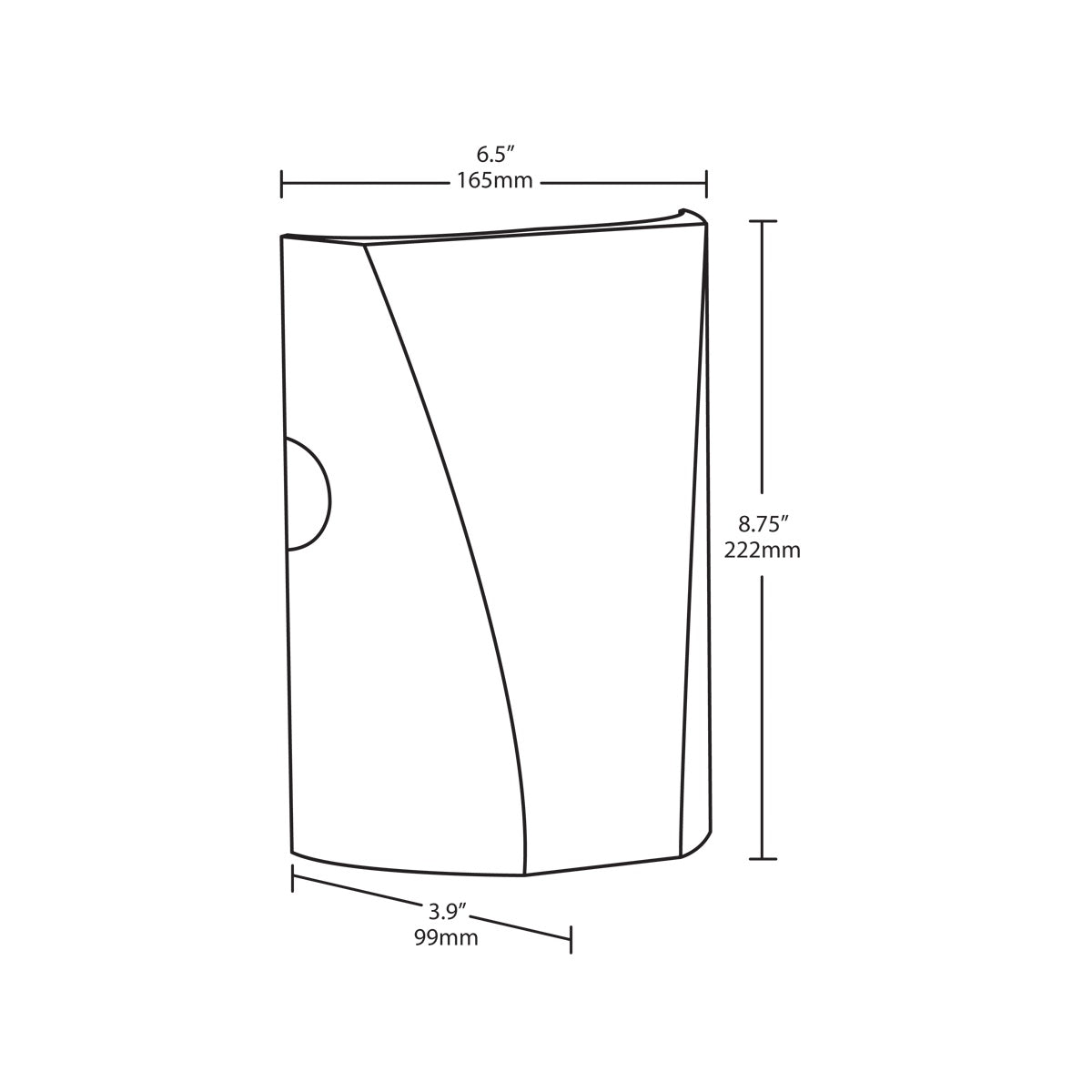

• Dimensions: 6.5" W x 8.75" H x 3.9" D (165mm x 222mm x 99mm)

Features

• Full cutoff, fully shielded LED wall pack
• Can be used as a downlight or uplight
• Heavy-duty mounting bracket with hinged housing for easy installation
• Precision die-cast aluminum housing with durable bronze finish
• High-temperature silicone gaskets for weatherproof sealing
• Ingress protection rating of IP66 for dust and water resistance
• 100,000-hour LED lifespan based on IES LM-80 testing
• Constant current driver with 4KV surge protection, compatible with 120-277V
• ADA compliant and UL listed for wet locations
• Design Lights Consortium (DLC) qualified for utility rebates
• Equivalent to 100W metal halide HID replacement
• Contractor-friendly design for quick wiring and mounting
• 5-year warranty covering light output, color stability, driver performance, and finish
