SLIM12 LED Wall Pack Lighting Solutions

The SLIM12 by RAB is a compact, ultra-efficient LED wall pack designed for outdoor lighting applications, suitable for electrical distributors and switchgear suppliers seeking reliable lighting solutions. It provides impressive light distribution with a low-profile design that can be installed as either a downlight or uplight, making it ideal for commercial and architectural exterior lighting. This product is engineered for durability and energy efficiency, meeting rigorous industry standards.

Specifications

• Product Weight: 4.1 lbs
• Lumens: 1,925 lumens
• Efficacy: 122 lumens per watt
• Input Wattage: 16 watts
• Lens Material: Tempered Glass
• Color Accuracy: 75 CRI
• Color Temperature: 5100 kelvins
• Ambient Temperature: 104°F (40°C) maximum
• Minimum Starting Temperature: -40°C (-40°F)

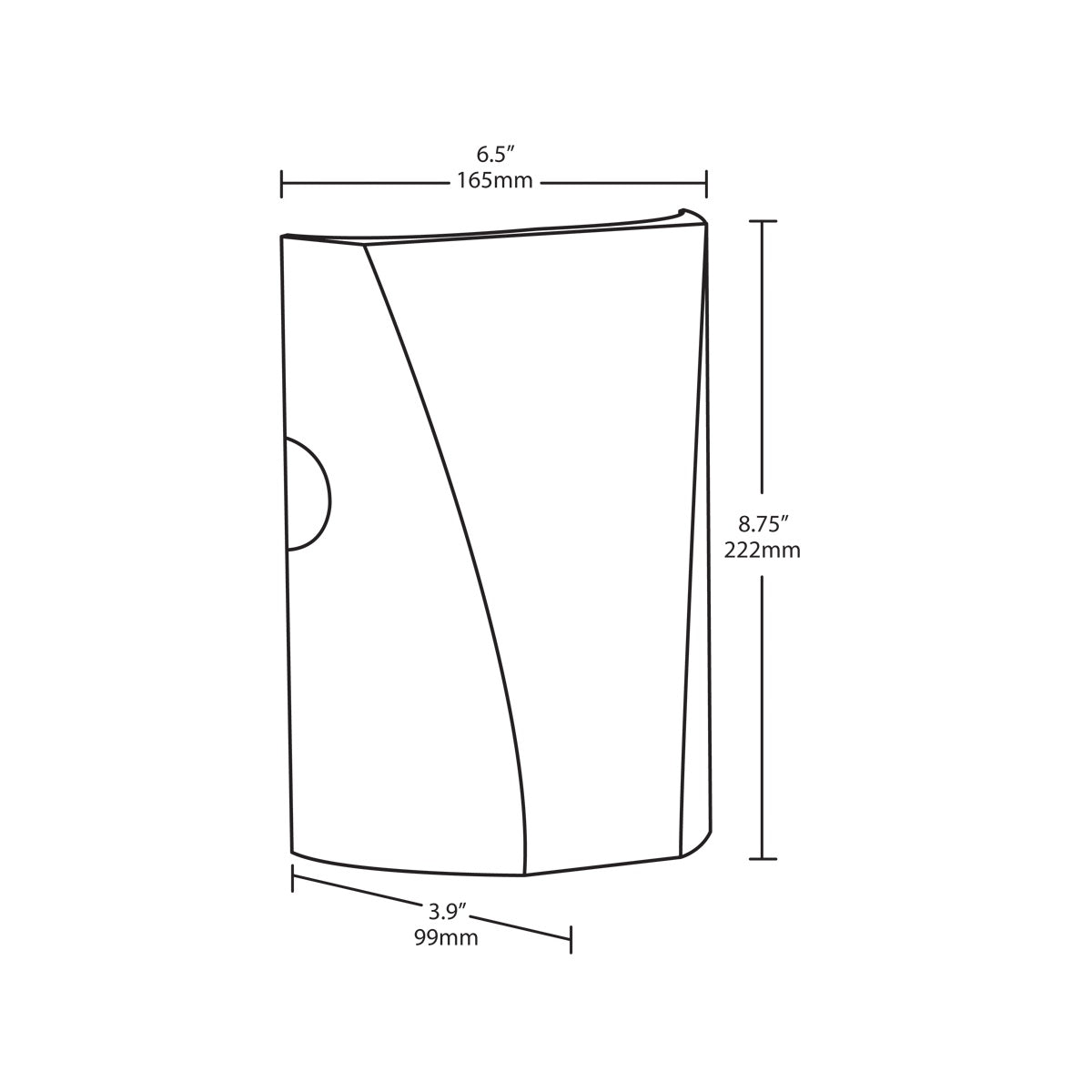

• Dimensions: 6.5" (165mm) width x 8.75" (222mm) height x 3.9" (99mm) depth
• Ingress Protection Rating: IP66 for dust and water
• Housing: Precision die-cast aluminum
• Mounting: Heavy-duty bracket with hinged housing for easy installation
• Recommended Mounting Height: Up to 8 feet
• Driver Type: Constant Current, Class 2, 100-277V, 50/60 Hz, 4KV surge protection
• LED Lifespan: 100,000 hours
• Compliance: UL Listed, ADA Compliant, DLC Listed

Features

• Full cutoff, fully shielded LED wall pack
• Can be used as a downlight or uplight
• Contractor-friendly features for easy installation
• High durability finish formulated for long-lasting color
• High-temperature silicone gaskets for weatherproof sealing
• Multi-chip, long-life LED with 7-step MacAdam Ellipse color consistency
• Mercury and UV free, RoHS-compliant components
• Equivalent to 70W Metal Halide HID replacement
• 5-Year warranty covering light output, color stability, driver performance, and fixture finish

Downloads & Links

• Instructions
• Spec Sheet
