SK21XL25RDYN LED Ceiling Light Fixture

The SK21XL25RDYN is a ceiling-mounted LED lighting fixture designed for indoor use in damp locations. It features a stamped steel ceiling pan with a white polyester powder-coated finish and an acrylic drop lens with a smooth finish and silver trim. This lighting solution is suitable for electrical distributors and lighting professionals seeking energy-efficient, durable, and high-performance LED fixtures for commercial or residential ceiling and wall mounting applications.

Specifications

• Manufacturer: RAB
• Input Wattage: 25 watts
• Lumens: 2,325 lumens
• Efficacy: 93 lumens per watt
• Color Temperature: 3500 kelvins
• Color Accuracy: 85 CRI (Color Rendering Index)
• Lens Material: Diffused Polymethyl Methacrylate
• Finish: Polyester Powder Coating
• Product Weight: 10.1 lbs
• Minimum Starting Temperature: -20°C
• Maximum Ambient Temperature: 104°F

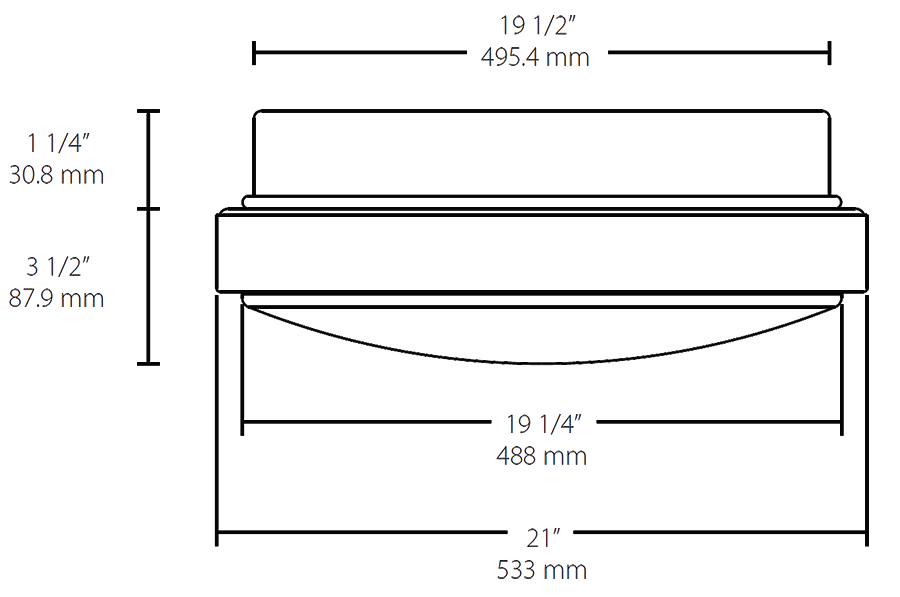

• Dimensions (from technical drawing): Width 21" (533 mm), Depth 3.5" (87.9 mm), Height 1.25" (30.8 mm)
• UPC: 019813499635

Features

• Energy-efficient LED technology with 100 LEDs arranged on 10 boards
• Durable stamped steel housing with a white powder-coated finish for corrosion resistance
• Diffused acrylic lens for smooth, uniform light distribution
• Suitable for ceiling and wall mounting in damp indoor locations
• Easy installation with mounting bracket and keyhole slots for secure housing attachment
• Compatible with TRIAC dimming controls for adjustable lighting
• Meets National Electrical Code requirements and includes grounding provisions
• Designed for long-term use with reliable LED driver (RDD-MK022-MKP45-A0700)
