SK12XL12RDN LED Retrofit Fixture

The SK12XL12RDN is a low-maintenance, high-efficiency LED retrofit fixture designed for indoor use in damp locations. It installs easily on standard recessed 4” octagonal junction boxes, making it suitable for ceiling or wall mounting applications. This fixture is ideal for electrical distributors and lighting solutions providers seeking reliable, energy-efficient lighting with consistent color quality and compatibility with TRIAC dimming controls.

Specifications

• Manufacturer: RAB
• Input Wattage: 12 watts
• Lumens: 1,105 lumens
• Efficacy: 90 lumens per watt
• Color Temperature: 4000 kelvins (Neutral)
• Color Accuracy: 82 CRI
• Lens Material: Diffused Polymethyl Methacrylate (PMMA)
• Finish: Polyester Powder Coating
• Weight: 3.9 lbs
• Minimum Starting Temperature: -20°C (-4°F)
• Maximum Ambient Temperature: 40°C (104°F)
• Housing Material: Steel sheet metal
• Mounting: Ceiling or wall mount to junction box
• Driver Type: 120VAC TRIAC, Constant Current, Class 2, 60 Hz
• Power Factor: 96.6% at 120V
• THD: 21.2% at 120V
• L70 Lifespan: 50,000 hours

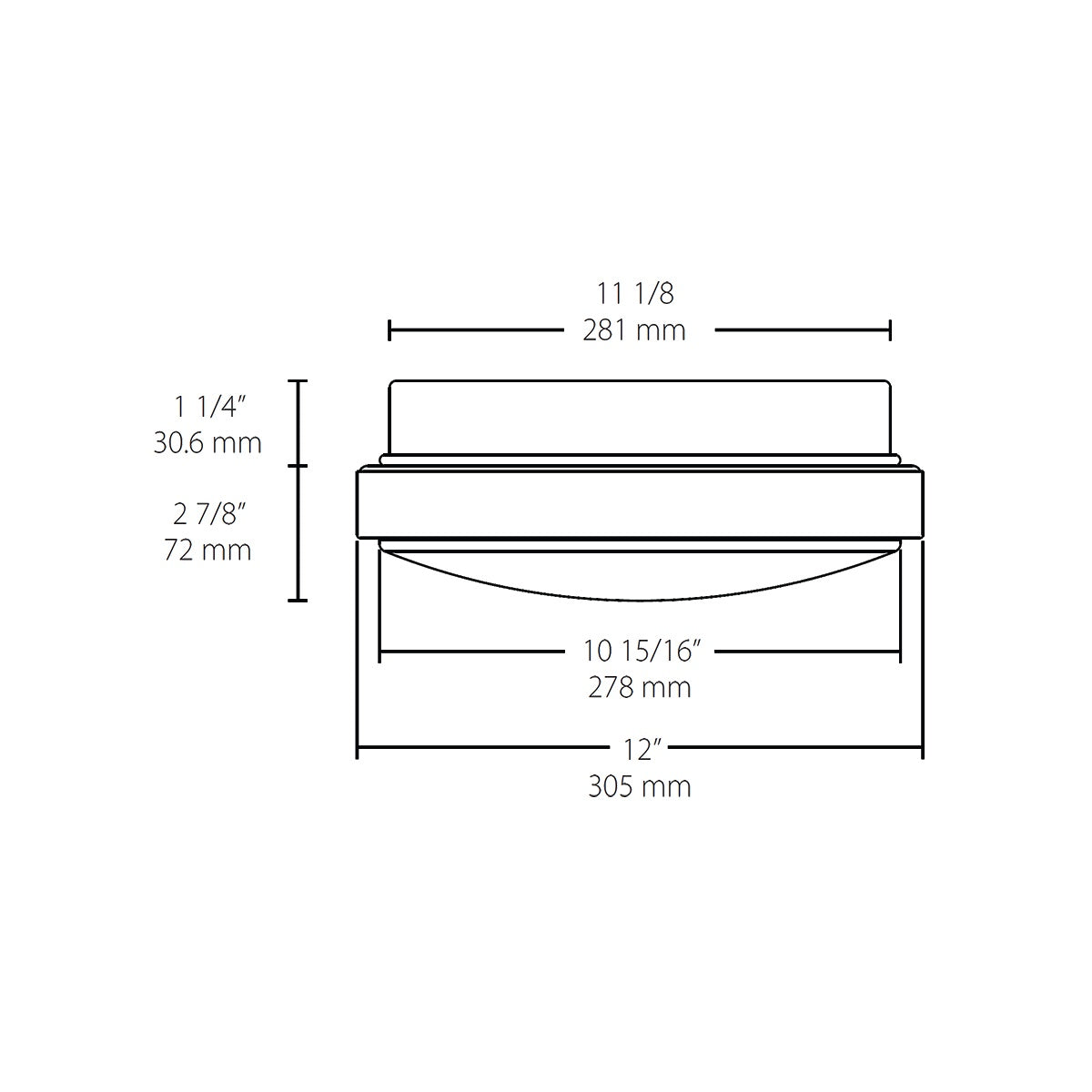

• Dimensions: 12" diameter x 2 7/8" height (305 mm x 72 mm)

Features

• Surface mount to ceiling or wall
• Opal lens provides soft, smooth light distribution
• Compatible with TRIAC dimming at 120V
• Long-life, high-efficacy surface-mount LEDs
• 3-step MacAdam Ellipse binning for consistent fixture-to-fixture color
• Mercury and UV free; RoHS-compliant components
• Durable polyester powder coating for long-lasting finish
• Equivalent to (2) 13W CFL or (1) 24W Circline lamp
