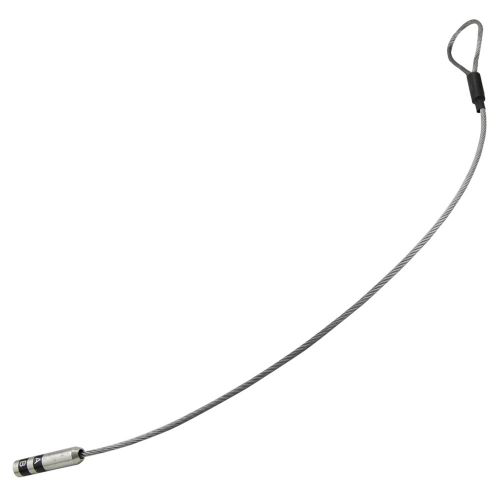

Single-Use Wire Grabber 2/0 w/28" Lanyard - Wire Pulling Tool

The Single-Use Wire Grabber 2/0 w/28" Lanyard by RectorSeal is a disposable wire pulling device designed for efficient installation of THHN and XHHW copper and aluminum wire. This tool simplifies wire pulling by securely crimping onto the wire, eliminating the need for taping, trimming, or tying. It is suitable for use by electrical distributors and switchgear suppliers looking for reliable, low-cost wire pulling solutions that reduce labor time and waste.

Specifications

• Manufacturer: RectorSeal
• Manufacturer Part #: 98147
• Wire Size: 2/0 AWG
• Lanyard Length: 28 inches
• Max Load (One Tool): 2000 lbs
• Max Load (Five Tools): 10,000 lbs
• Min Conductor Diameter: 0.376 in
• Max Conductor Diameter: 0.419 in
• Minimum EMT Conduit Size for 1 Wire: 1 inch
• Product Weight: 1.98 lbs

Features

• Disposable lugs crimped onto wire for single use and recycling with scrap wire
• Beveled edge design for easier pulls around corners
• Staggered lanyards reduce pulling friction and conduit congestion
• Compatible with 12 to 15 ton die or dieless crimpers for 500 MCM and smaller wires, 15 ton crimper for 600 MCM to 1000 MCM
• Works on wire rated from 600 volts up to 35 KV
• Rated for both copper and aluminum wire
• Saves time by significantly reducing set-up and pull time

Downloads & Links

• Flyer - English
• Spec Sheet
