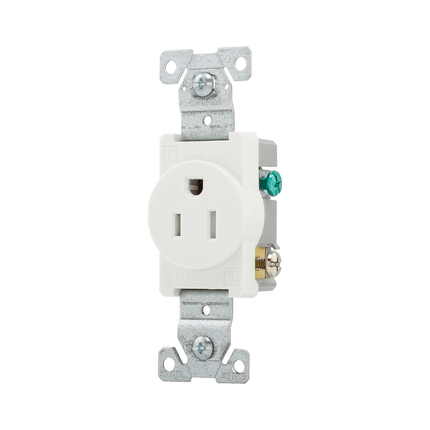

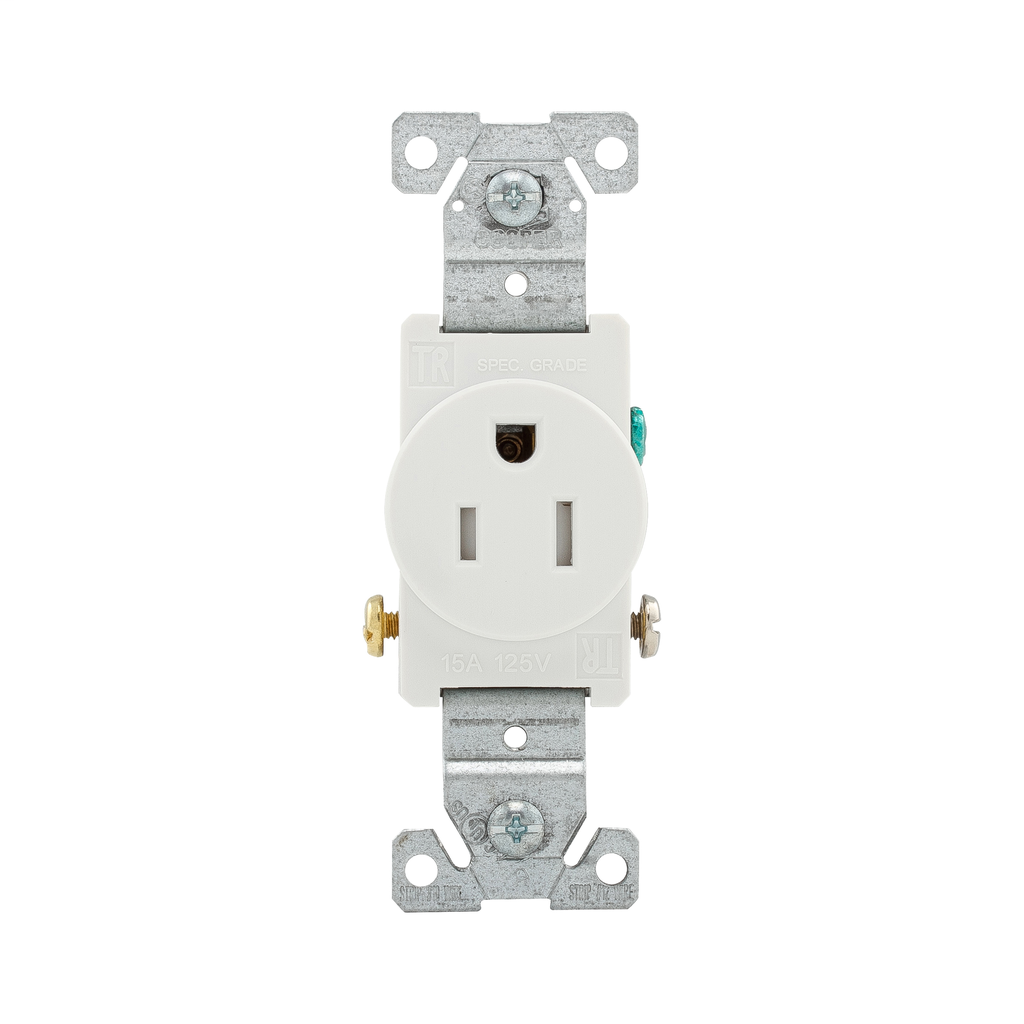

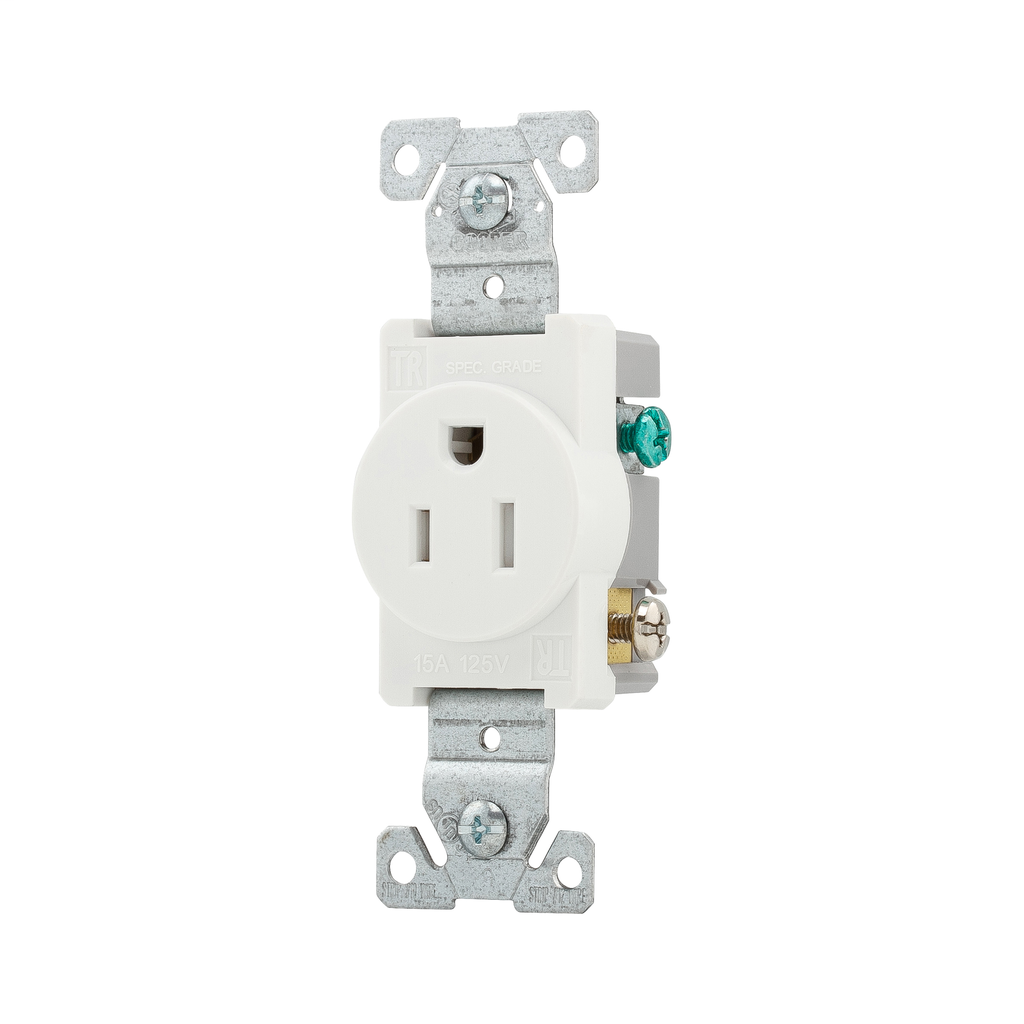

Single Receptacle
SKU: #172109
Part: #TR817W-BOX
UPC: 032664665462
Single Receptacle
SKU: #172109
Part: #TR817W-BOX
UPC: 032664665462
Next day delivery
Description
Single Receptacle – Electrical Distributor Lighting Solutions
The Single Receptacle by Cooper Wiring Devices is a 15-amp, 125V/AC electrical outlet designed for commercial and residential applications requiring reliable connectivity. It is suitable for use by electrical distributors and switchgear suppliers providing lighting solutions and wire and cable installations. This device features a tamper-resistant design compliant with 2014 NEC® Article 406.12, enhancing safety in dwelling units by preventing unintended access.
Specifications
- Amperage: 15 amperes
- Voltage: 125V/AC
- Poles: 2
- Wires: 3
- Material: PVC
- Color: White
- Terminal Accommodation: #14 - 10 AWG wire
- Temperature Rating: -20ºC to 60ºC (-4ºF to 140ºF)
- Flammability: UL 94 V2 rated
- Dielectric Voltage: Withstands 2000V per UL 498
- Current Interrupting: Yes, at full-rated current
- Temperature Rise: Max. 30ºC (86°F) after 100 cycles of overload at 150% of rated current (DC)
- Product Weight: 0.1790 lbs
- Number of Poles: 2
- Number of Wires: 3
Features
- Tamper resistant shutters for enhanced safety compliance
- Reliable Delrin® shutter assembly
- Galvanized steel mounting strap for secure installation
- Phosphor bronze staple for automatic grounding
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire stripper for #14 and #12 AWG wire
- Patented built-in wire looper for pre-looping
- Double-wipe brass contacts for long-term ground retention
- Tri-combo screws accept slotted, Phillips, and Robertson-head tools for installation flexibility
- Side wire terminals accept up to #10 AWG solid wire
- Terminal screws backed out and ready for wiring
