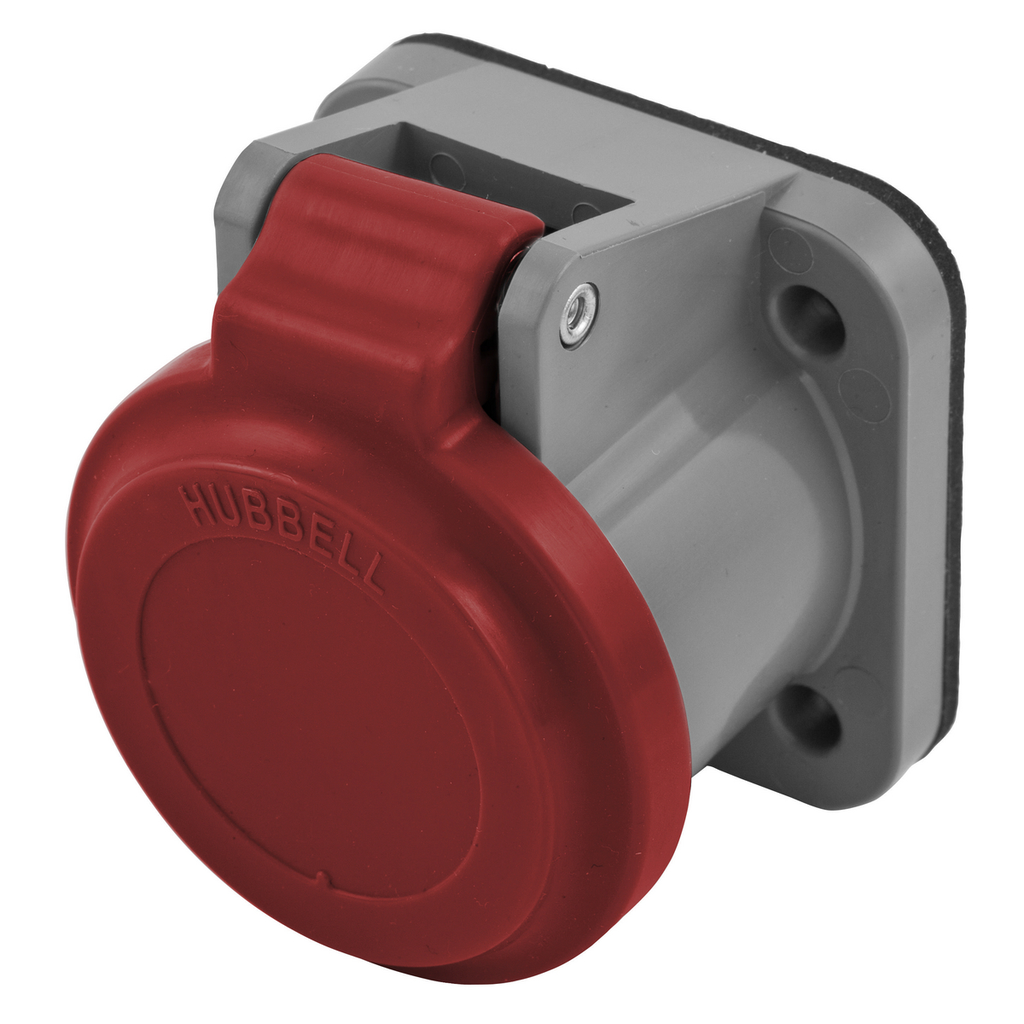

Single Pole Products Weatherproofing Cover - Electrical Distributor Weatherproofing Solutions

This Single Pole Products Weatherproofing Cover by Hubbell Wiring Device-Kellems provides robust protection for single pole devices against water ingress, suitable for both indoor and outdoor panel mounting. Designed for electrical distributors and switchgear suppliers, it ensures reliable weatherproofing in demanding environments such as stage power, portable power distribution, and lighting applications.

Specifications

• Application: Weatherproofing
• Amperage Rating: 400 amperes
• Voltage Rating: 600V AC/DC
• Material: Non-Metallic
• Color: Red
• Construction: Fabricated
• Mounting: Mounts to Device
• Width: 2.25 in
• Series: 16 Series
• UL Enclosure Types: 3R, 4X, 12 (cover closed)
• Country of Origin: United States
• Made in USA: Yes

Features

• Weatherproofing cover designed to protect single pole devices from water ingress
• Non-metallic construction with corrosion resistant stainless steel hinge pin and spring
• Impact and UV resistant for durability in harsh environments
• Passes 1000 repetition hinge cycling test per UL1640 and UL498 standards
• High visibility red color for easy identification
• Integral flange gasket for enhanced sealing
• Compatible with all Series 16 single pole devices, male and female panel mount receptacles
• UL and cUL Listed, meeting National Electric Code (NEC) and ANSI/NFPA 70 standards
• Assembled and manufactured in the USA
