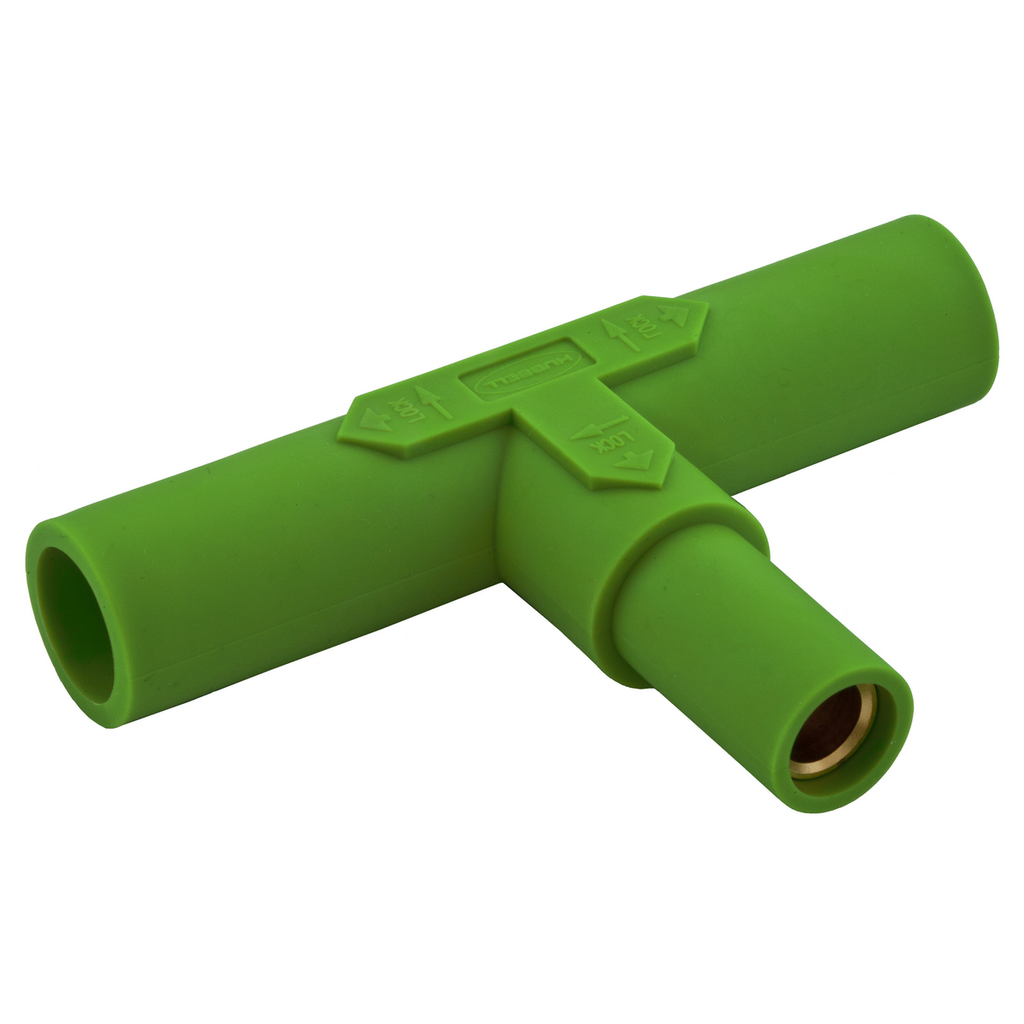

Single Pole Products, Paralleling Tee, 150 Amp Series, Green - Temporary Electrical Power

The Single Pole Products Paralleling Tee from Hubbell Wiring Device-Kellems is engineered for temporary electrical power distribution applications, ideal for electrical distributors and switchgear suppliers serving entertainment, theme parks, and industrial environments. This 150 Amp series device provides a reliable and safe connection solution for wire and cable systems requiring robust paralleling capabilities.

Specifications

• Application: Temporary Electrical Power
• Amperage Rating: 150 A
• Current: 150 amperes
• Number of Poles: 1-Pole
• Number of Conductors: 1 Conductor
• Material: Brass and Non-Metallic
• Color: Green
• Mounting: Cord Mounted
• Connection: Plug In
• Insulation: Insulated Body
• NEMA Rating: Non-NEMA
• Width: 2.8 in
• Product Weight: 6.85 lbs
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part Number: HBL15PTGN

Features

• Single pole design suitable for paralleling tees in temporary power distribution
• Durable brass and non-metallic construction for long-lasting performance
• Insulated body enhances user safety and electrical isolation
• Cord mounted for easy installation and removal in temporary setups
• Plug-in connection enables quick and secure mating
• Green color coding for easy identification in electrical systems
• Designed for indoor dry environments unless additional protection is applied
