Single Pole Female-Female-Male, Tapping "Tee", 300/400A AC/DC, Single Conductor, Pre-Wired
SKU: #146744
Part: #HBLTBL
UPC: 783585174181
Single Pole Female-Female-Male, Tapping "Tee", 300/400A AC/DC, Single Conductor, Pre-Wired
SKU: #146744
Part: #HBLTBL
UPC: 783585174181
Next day delivery
Description

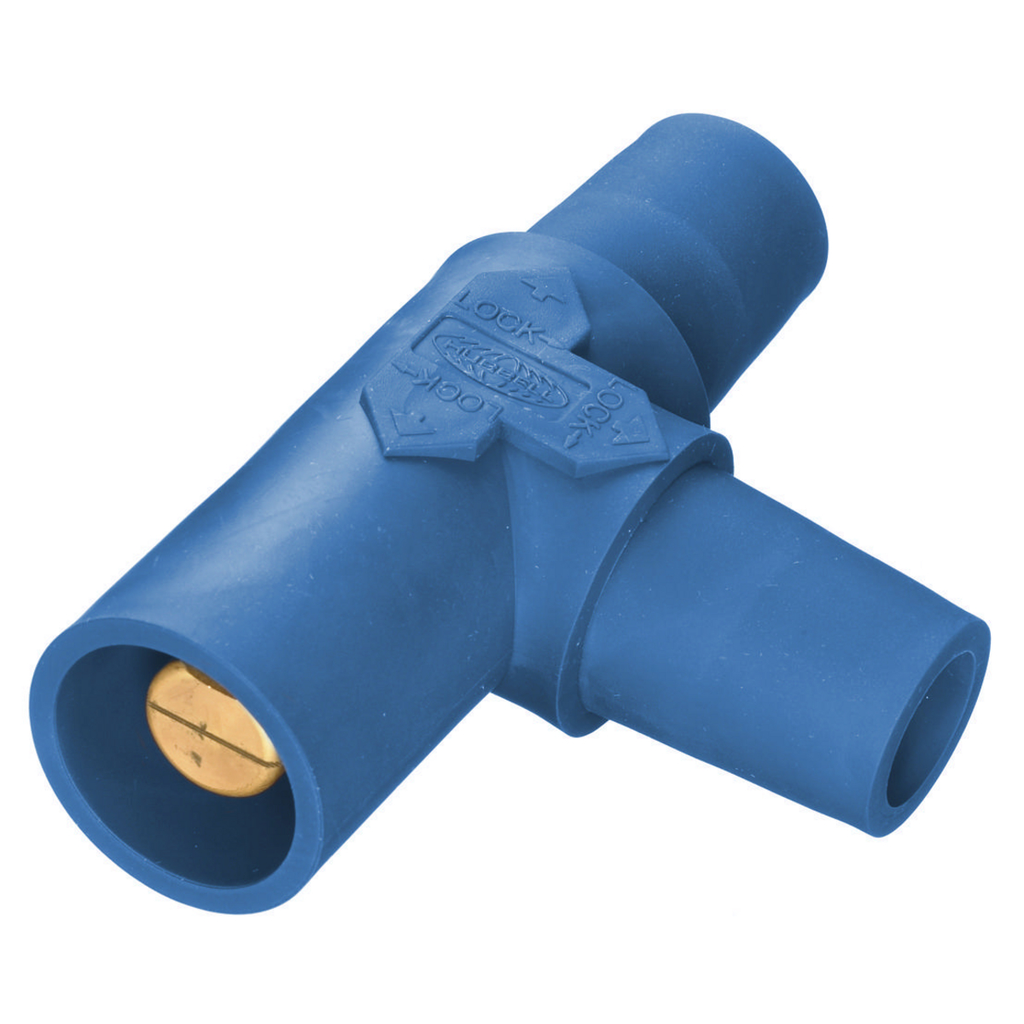

Single Pole Female-Female-Male, Tapping "Tee", 300/400A AC/DC, Single Conductor, Pre-Wired – Industrial Grade Electrical Connector
This heavy duty single pole tapping "tee" connector is designed for high ampacity electrical distribution applications. It provides a reliable female-female-male configuration suitable for single conductor connections up to 400 amperes at 600 volts AC/DC. The product is pre-wired and features an insulated body, making it ideal for industrial grade wire and cable installations in demanding environments. Electrical distributors and switchgear suppliers will find this fitting compatible with various industrial power distribution systems requiring robust and durable connectors.
Specifications
- Amperage Rating: 400 A
- Voltage Rating: 600V AC/DC
- Material: Brass and Elastomer
- Insulation: Insulated Body
- Number of Pins: 1) In, 2) Out - Male-Female-Female
- Operating Temperature: Max Continuous 75°C, Minimum -40°C Without Impact
- Width: 3.1 in
- Weight: 1.05 lbs
- Industry Standards: UL 498 and UL 1691
- Country of Origin: China
- Color: Blue
- Manufacturer Part Number: HBLTBL
Features
- Industrial Grade construction for heavy duty applications
- Pre-wired tapping "tee" design for easy installation
- Female-Female-Male configuration to support versatile wiring setups
- Thermoplastic elastomer body with brass contacts for durability and reliable conductivity
- Rated for high ampacity electrical distribution up to 400 amperes
