Single gang, non-gasketed Vapor Box for devices
SKU: #73904
Part: #FN101FX
UPC: 018997096319
Single gang, non-gasketed Vapor Box for devices
SKU: #73904
Part: #FN101FX
UPC: 018997096319
Description

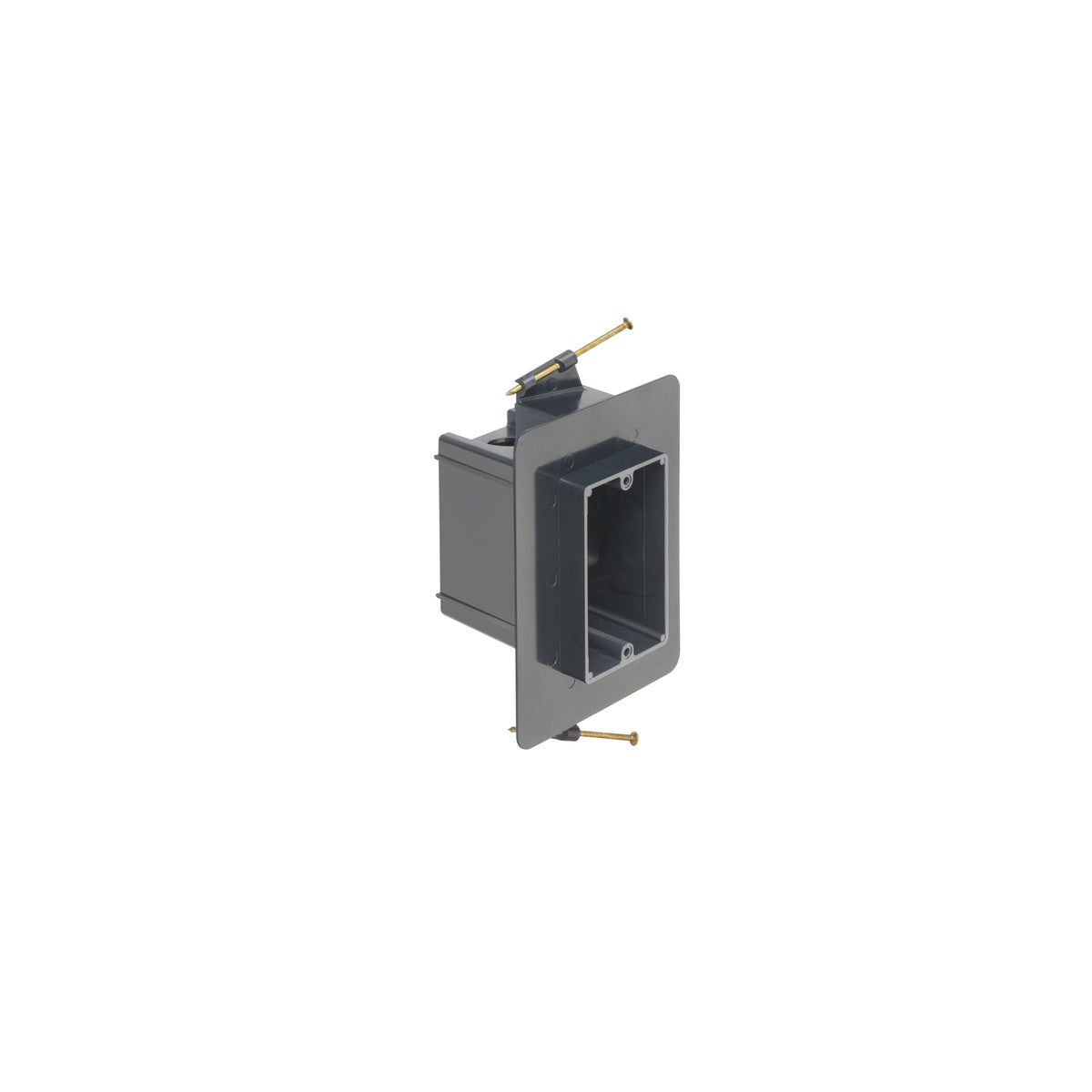

Single gang, non-gasketed Vapor Box for devices – Vapor Box Electrical Enclosure
This single gang, non-gasketed Vapor Box is designed for use in new construction to house electrical devices. It is a cost-effective solution that helps stop air infiltration when installed properly with caulking around NM cable, meeting the NEMA OS-4 requirements. Suitable for electrical distributors and lighting solutions providers, this vapor box supports compliance with International Energy Conservation Codes (IECC) and features easy nail-on installation for studs with single 1/2" or 5/8" drywall.
Specifications
- Manufacturer: Arlington Industries
- Manufacturer Part #: FN101FX
- Material: Plastic
- Color: Black
- Product Weight: 0.3250 lbs
- Cubic Inches: 22.8
- UPC: 018997096319
Features
- Non-metallic construction
- Easy nail-on installation with captive nails
- Meets NEMA OS-4 certification when caulking is applied around NM cable
- UL Listed
- 2-Hour fire rating
- Fits single 1/2" or 5/8" drywall
- Designed for devices in new construction applications
