SIGNALREFGRID CONN No8 No6-No4 COND
SKU: #67040
Part: #SRG8-4
UPC: 786210715636
SIGNALREFGRID CONN No8 No6-No4 COND
SKU: #67040
Part: #SRG8-4
UPC: 786210715636
Next day delivery
Description

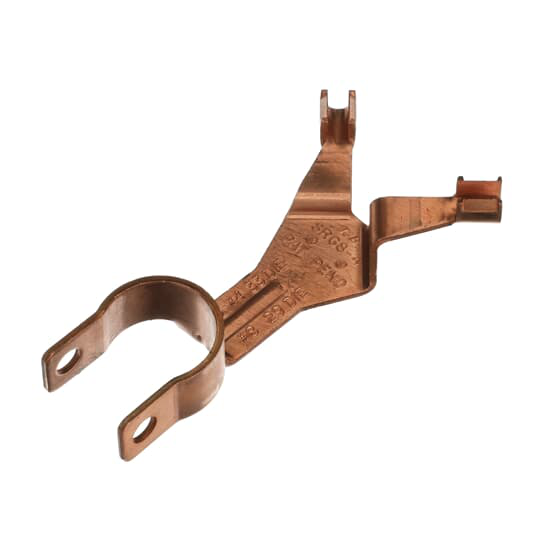

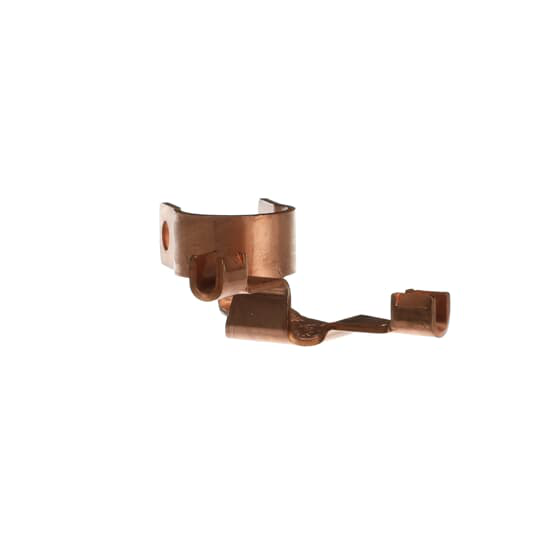

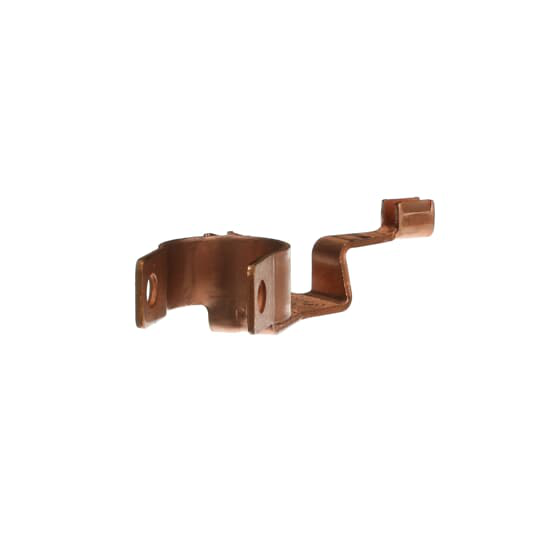

SIGNALREFGRID CONN No8 No6-No4 COND Copper Connector
This signal reference grid copper connector is designed for securing #8 to #4 AWG wire to pedestal posts in raised-floor systems. It fits posts up to 1 inch square and 1 to 1 1/4 inches round, providing a reliable and low-resistance electrical connection. Suitable for electrical distributors and switchgear suppliers managing wire and cable installations in grounding and bonding applications.
Specifications
- Product Weight: 8.25 lbs
- Conductor Material: Copper
- Insulation: No
- Wire Range: #8, #6 to #4 AWG
- Fits Pedestal Posts: Up to 1" square and 1" to 1 1/4" round
- Manufacturer: Thomas & Betts
- Manufacturer Part #: SRG8-4
- Standards: UL E3060
Features
- High-conductivity wrought-copper construction for efficient grounding
- Range-taking design accepts multiple wire sizes for flexibility
- Lay-in feature prevents kinks or bends in the grid wire
- Quick and easy installation with only one screw to tighten
- Enables direct, low-resistance contact between grid wire and support post
