Description
SIEMENS WS1400CU POWMOD WS 1PH 3W 400A 100K TOP/BTM N3R Switchgear

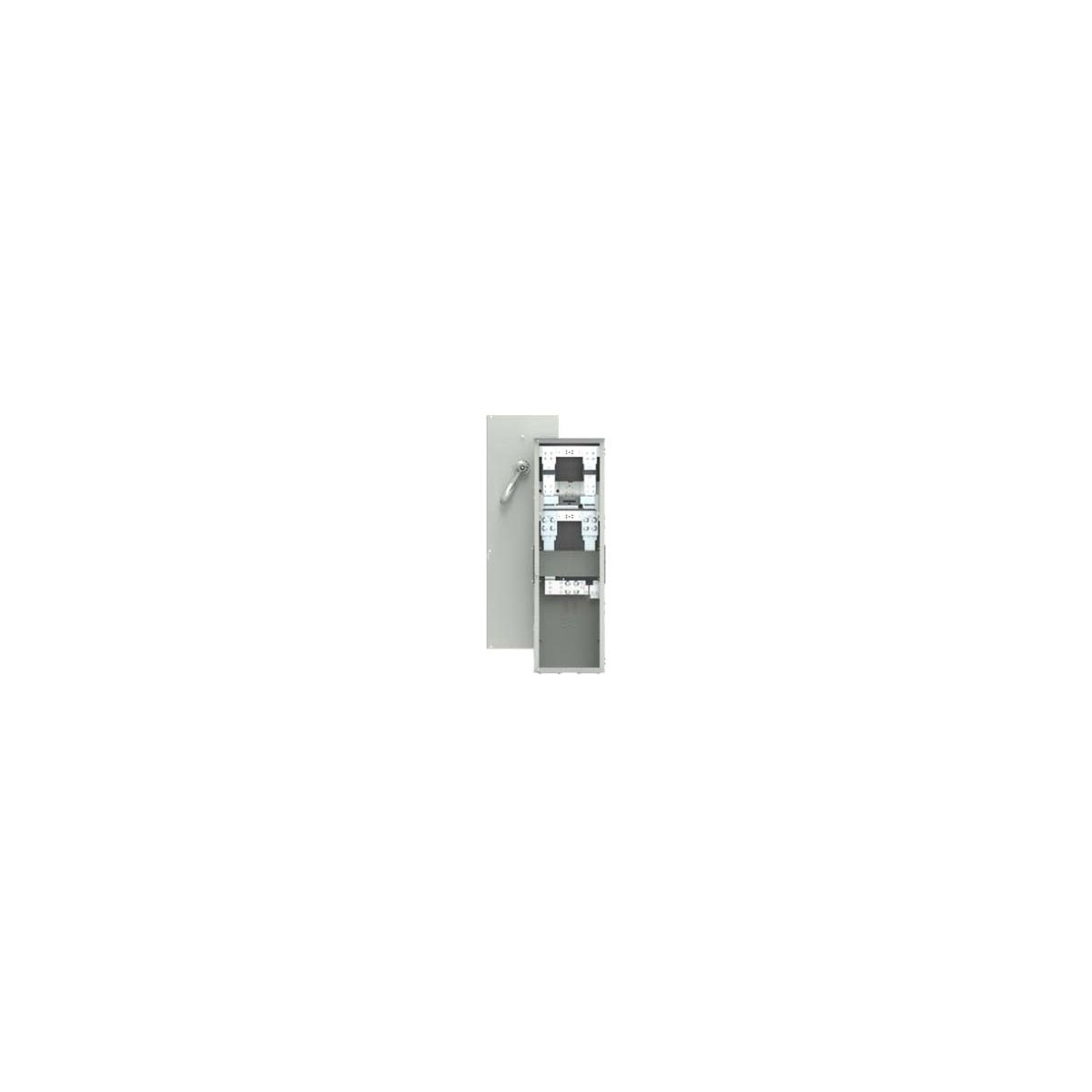

The Siemens WS1400CU Power Mod Standard Switch Main is a fusible switch service entrance module designed for single-phase, 3-wire, 120/240V AC applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable, durable switchgear solutions for multi-family metering and electrical distribution systems. The unit supports overhead and underground service feeds and is NEMA 3R rated for outdoor installation.
Specifications
- Manufacturer: Siemens
- Catalog Number: WS1400CU
- Rating: 400 Amps
- Service Feed: Overhead/Underground (OH/UG)
- Fuse Type: Class T
- Voltage: Single phase 120/240V AC max
- AIC Rating: 100,000 AIC
- Dimensions (H x W x D): 50.13" x 15.19" x 16.31"
- Line Side Connections: 1 set of 2 studs (lugs not included)
- Material: G90 galvanized steel with ANSI 61 paint
- Weight: 130.6 lbs
- UPC: 040892153453
Features
- QuickSystem™ features for ease of installation
- Standard compression lug capability (lugs sold separately)
- Invertible device allowing rotation to accommodate incoming feed direction
- Supports up to 750 kcmil aluminum wire
- Class T fuse provisions for proper fuse installation
- Front-mounted handle eliminates need for side spacers
- All swing latches and rivets are stainless steel for corrosion resistance
- Broad ampacity ratings up to 1200 Amps across the product line
- NEMA 3R outdoor rating for weather protection
