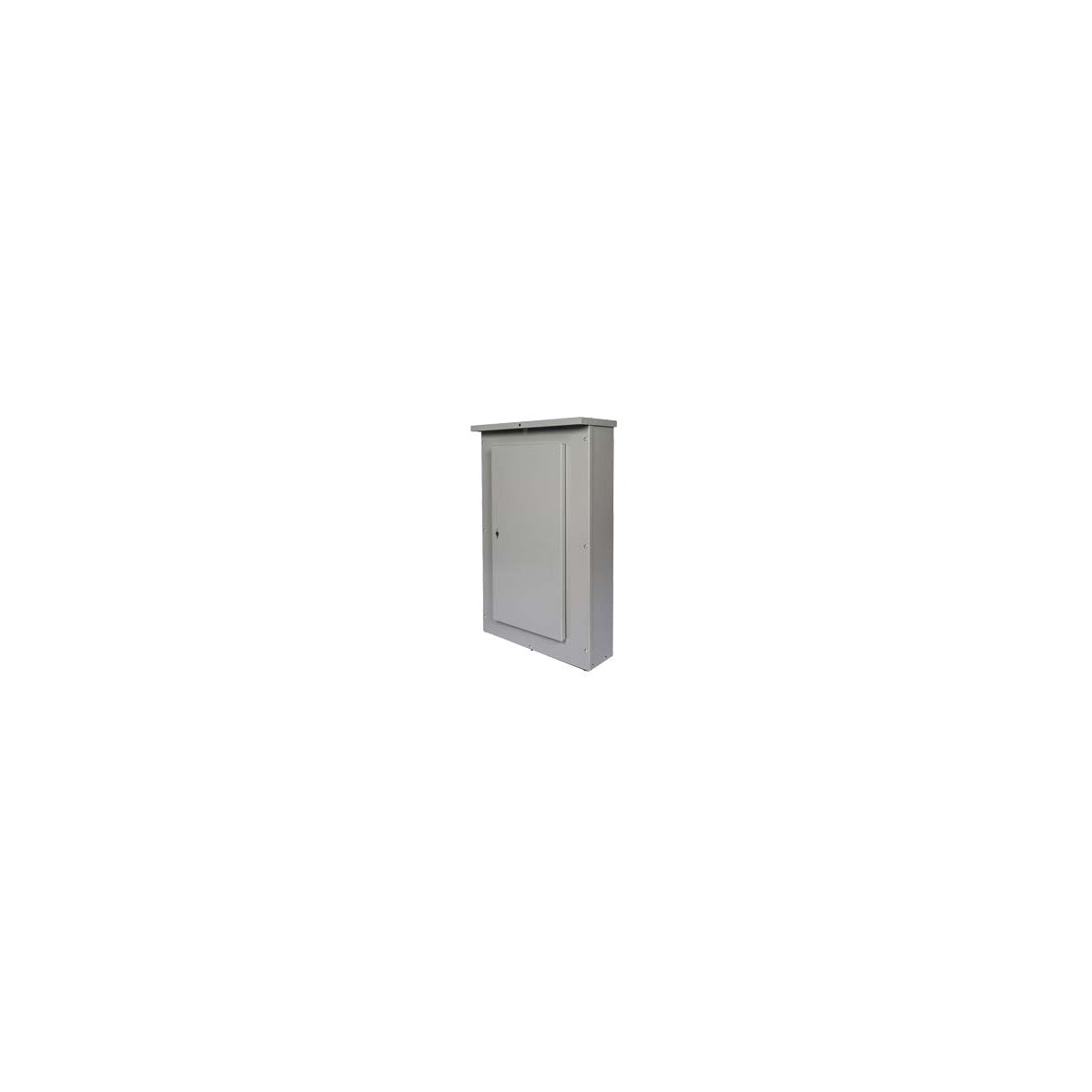

SIEMENS WP6611RJ PAKMTR 600A 6G 1PH 125A 5J RLS Meter Center

The Siemens WP6611RJ Uni-PAK Metering center is designed for multi-family and small commercial electrical distribution applications. This ringless style, 120/240V, 1 phase, 3 wire meter center supports up to 600 amps with six meter positions. It is suitable for use by electrical distributors and switchgear suppliers providing lighting solutions, wire and cable, and metering equipment. The unit features top and bottom cable entry and is engineered for outdoor or indoor installation with a compact, pre-bussed design to simplify handling, hanging, and wiring.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: WP6611RJ
• Amperage Rating: 600 A
• Cable Entry: Top and Bottom
• Meter Positions: 6
• Voltage: 120/240V AC, 1 Phase, 3 Wire
• Dimensions (H x W x D): 40.01" x 29.59" x 7.56"
• Maximum AIC Rating: 100,000 RMS symmetrical Amps
• Wire Range: (2) #2-600 kcmil
• Product Weight: 153 lbs
• UPC: 040892875713

Features

• Ringless meter construction with individual split covers compatible with barrel locks
• Factory-installed line lugs and mounting rail for simplified installation
• Supports both top and bottom feed with bottom and rear branch wiring exits (neutral and ground at bottom only)
• Complies with ANSI #61 light gray electrodeposited paint on G90 galvanized steel for corrosion resistance
• Barriered, sealable compartments to prevent unauthorized access to unmetered current-carrying parts
• Includes 5th jaw kit and horn bypass option available factory or field installed
• UL Listed for 60/75°C conductors and short circuit ratings up to 100,000 RMS symmetrical Amps at 240V AC
• Compact, pre-bussed design for ease of handling and installation
• Suitable for overhead or underground service with load top, bottom, or back
• Extra neutral and ground provisions included

Downloads & Links

• Spec Sheet
