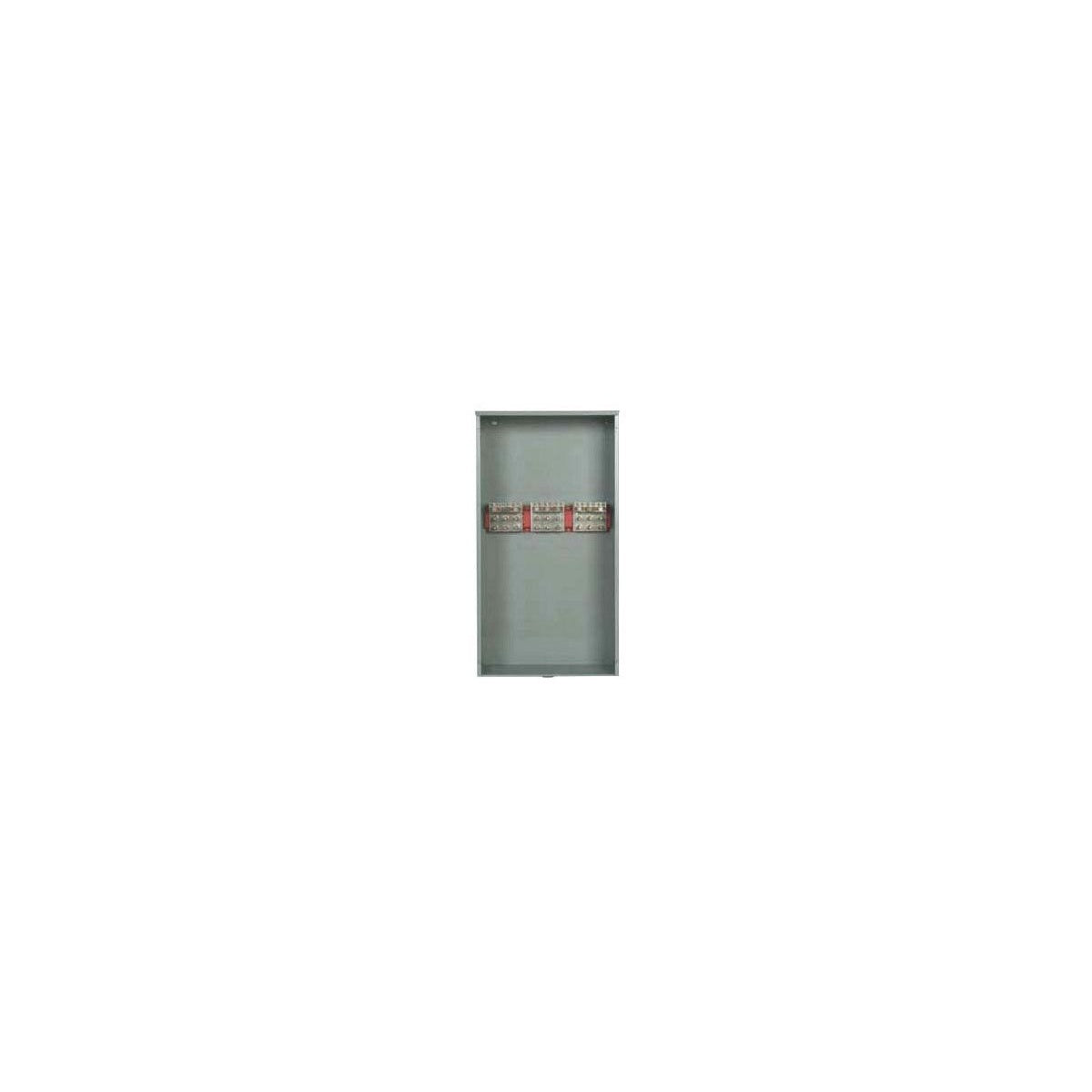

SIEMENS WMMB3400 POWMOD PULLBOX 400A 3PH N3R 65K NO BUS Electrical Distributor Solution

The SIEMENS WMMB3400 Power Mod Pullbox is a 3-phase, 4-wire, 400A rated pullbox designed for underground electrical service applications. It is EUSERC compliant and intended for use in electrical distribution systems requiring reliable pullbox modules with high withstand ratings. This product is suitable for electrical distributors and switchgear suppliers who require durable and code-compliant wire and cable management solutions for multi-family metering and power distribution.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: WMMB3400
• Ampere Rating: 400A
• Phase: 3-phase, 4-wire SN
• Voltage: 240V AC max
• Withstand Rating: 65,000 AIC
• Service Feed: Underground (UG)
• Dimensions (HxWxD): 37.50 in x 16.69 in x 9.34 in
• Weight: 55.2 lbs
• Enclosure Rating: NEMA 3R
• Material: G90 galvanized steel with ANSI 61 paint
• UPC: 783643202597

Features

• EUSERC compliant incoming pull section
• Dual cover handles for ease of access
• Durable construction with G90 galvanized steel and ANSI 61 paint finish
• High withstand rating of 65,000 AIC for enhanced safety
• Designed for underground service feed applications
• Compatible with modular metering systems and multi-family metering solutions
• Includes one set of 2 studs for line terminal lugs
