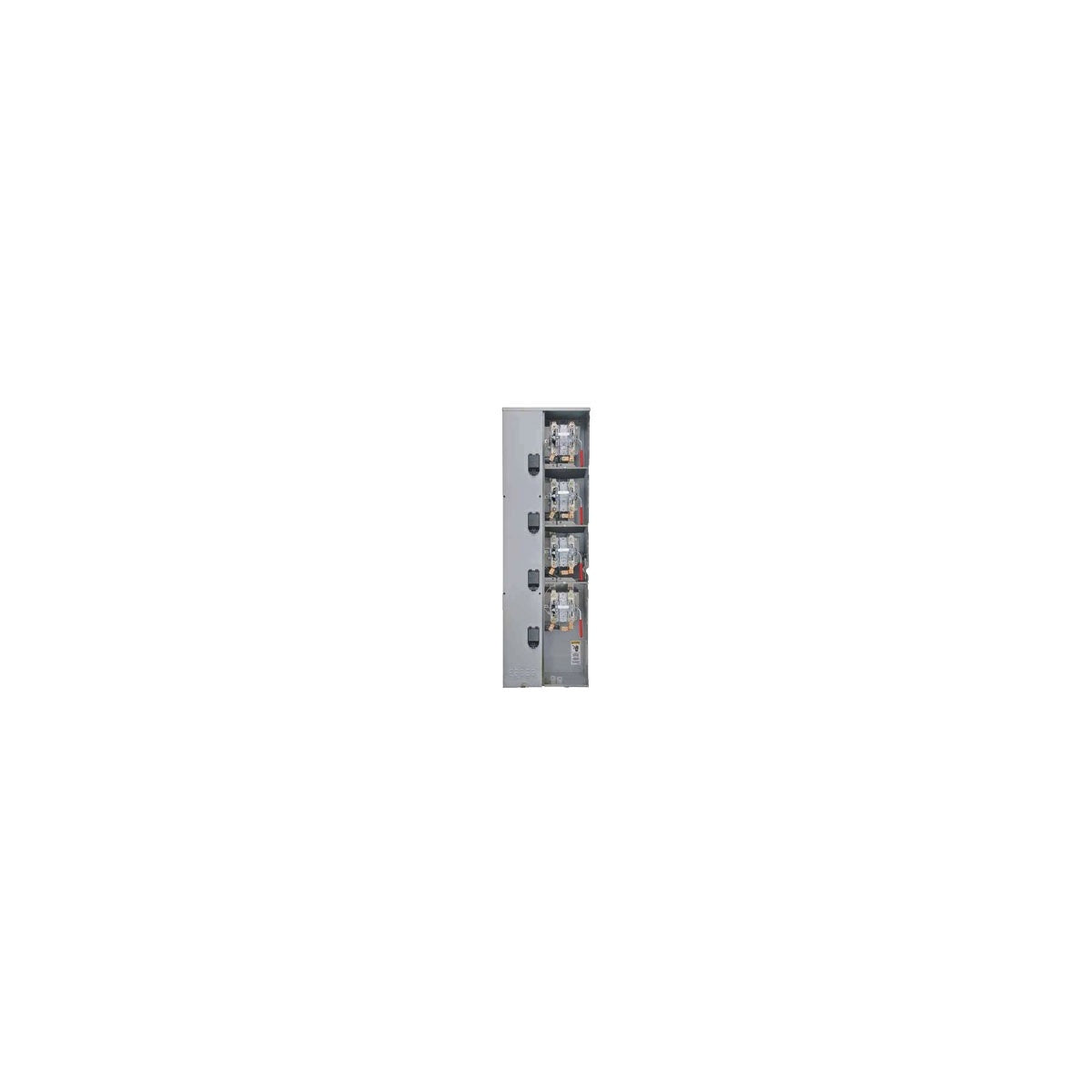

SIEMENS WML42CA225RJ POWMOD WML 4G 5J 3PH IN 225A AB/BC/2CA Lever Bypass Meter Stack

The Siemens WML42CA225RJ Power Mod lever bypass meter stack is designed for residential and commercial electrical distribution applications. This 3-phase, 4-position meter stack supports a maximum amperage rating of 225A and is suitable for use by electrical distributors and switchgear suppliers requiring reliable, ringless lever bypass meter sockets. It features a 1200A thru-bus rating and is engineered for efficient tenant main cost minimization in multi-family metering setups.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: WML42CA225RJ
• Amperage Rating: 225A
• Maximum AIC Rating: 100kA
• Meter Positions: 4
• Stack Phasing: 1-AB, 1-BC, 2-CA
• Dimensions (HxWxD): 62.75" x 19.50" x 9.00"
• Maximum Thru-Bus Rating: 1200A
• Weight: 164.4 lbs
• UPC: 040892170795

Features

• Lever Bypass design meets utility requirements for residential and commercial meter sockets
• Ringless meter stacks for enhanced safety and reliability
• High-quality, time-proven Talon HQ sockets
• Removable back knockout plate to facilitate wiring
• Supports up to 4 positions with 225A tenant mains
• Indoor NEMA 1 rated enclosure
• Constructed with G90 galvanized steel and ANSI 61 paint finish
• All swing latches and rivets are stainless steel
