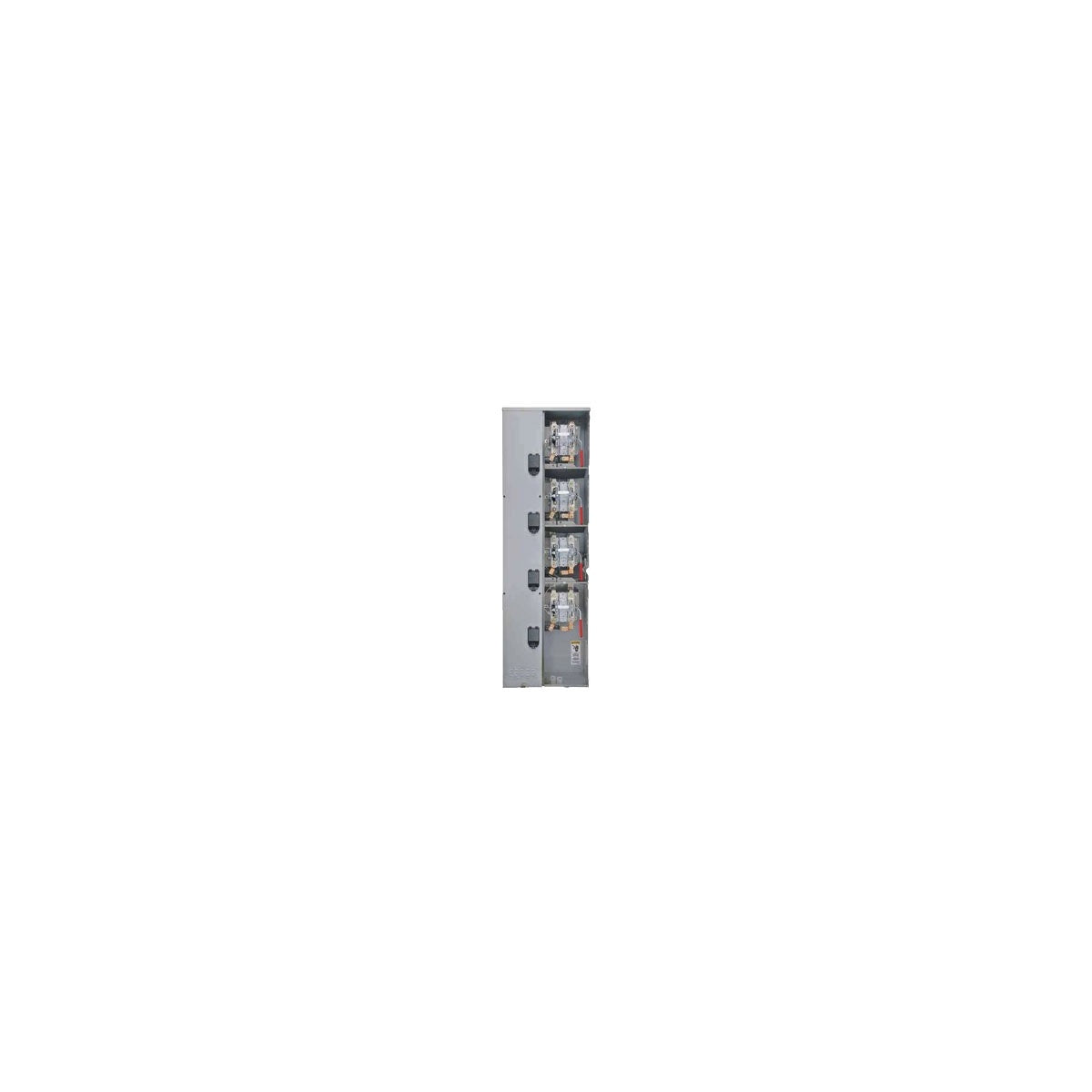

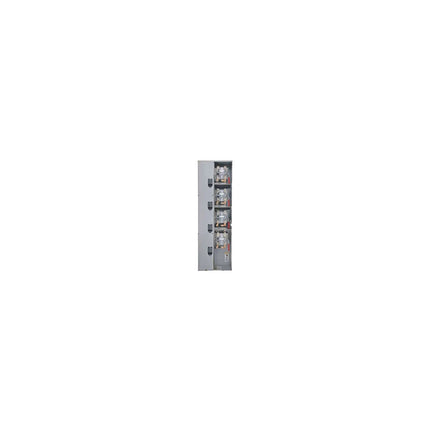

SIEMENS WML42BC225RJ POWMOD WML 4G 5J 3PH IN 225A AB/2BC/CA Lever Bypass Meter Stack

The Siemens WML42BC225RJ lever bypass meter stack is designed for residential and commercial electrical distribution applications. It supports three-phase, four-wire incoming and single-phase, three-wire outgoing configurations with a maximum amperage rating of 225A. This product is suitable for electrical distributors and switchgear suppliers seeking reliable, ringless meter stacks for multi-family metering installations.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: WML42BC225RJ
• Amperage Rating: 225A
• Maximum AIC Rating: 100kA
• Meter Positions: 4
• Stack Phasing: 1-AB, 2-BC, 1-CA
• Dimensions (HxWxD): 62.75" x 19.50" x 9.00"
• Voltage Rating: Three-phase 240V AC max
• Thru-bus Rating: 1200A
• UL Standard: UL67
• UL File Number: E27100
• Enclosure Rating: Indoor NEMA 1
• Material: G90 galvanized steel with ANSI 61 paint
• Weight: 164.4 lbs

Features

• Lever bypass design with ringless construction for enhanced safety and reliability
• High-quality Talon HQ sockets for proven performance
• QuickSystem features for efficient installation and maintenance
• Removable back knockout plate to facilitate wiring
• Supports up to 4 meter positions with 225A tenant mains
• All swing latches and rivets are stainless steel for corrosion resistance
• Designed to meet utility requirements for lever bypass meter sockets
