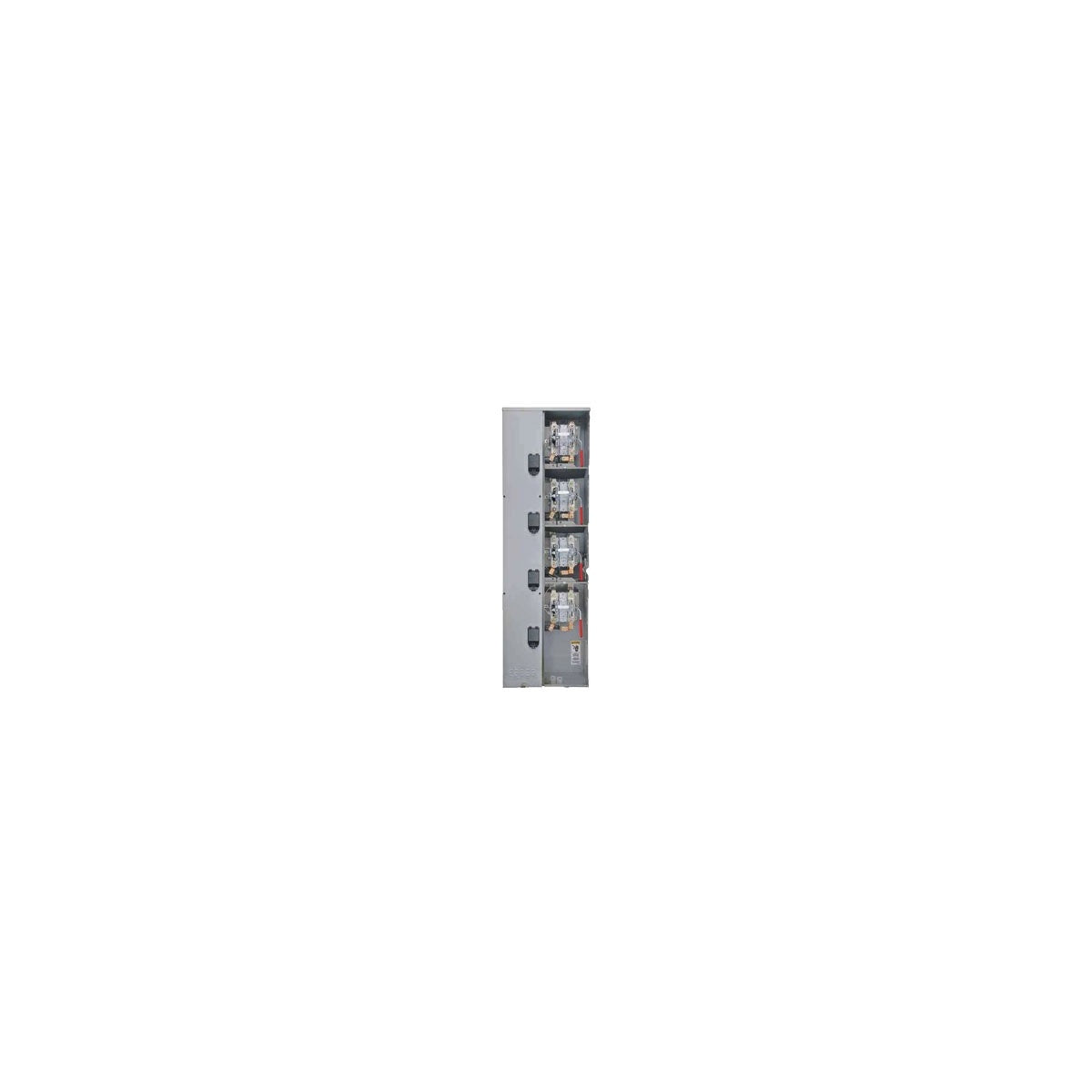

SIEMENS WML42AB225RJ POWMOD WML 4G 5J 3PH IN 225A 2AB/BC/CA Lever Bypass Meter Stack

The SIEMENS WML42AB225RJ is a Power Mod type WML lever bypass meter stack designed for residential and commercial electrical distribution applications. It provides reliable metering solutions for 3-phase, 4-wire systems with a maximum tenant breaker rating of 225 Amps. This meter stack is suitable for electrical distributors and switchgear suppliers seeking durable, ringless lever bypass meter sockets compliant with UL standards.

Specifications

• Manufacturer: Siemens
• Model Number: WML42AB225RJ
• Meter Positions: 4
• Maximum Tenant Breaker: 225 Amps
• Maximum AIC Rating: 100kA
• Dimensions (HxWxD): 62.75 x 19.50 x 9.00 inches
• Stack Phasing: 2-AB, 1-BC, 1-CA
• Socket Type: 5-Jaw Lever Bypass
• Voltage Rating: Three Phase 240V AC max
• Thru-Bus Rating: 1200 Amps
• UL Standard: UL67, UL File # E27100
• Enclosure Rating: Indoor NEMA 1
• Material: G90 galvanized steel with ANSI 61 paint
• Weight: 164.2 lbs
• All swing latches and rivets are stainless steel

Features

• High-quality, time-proven Talon HQ sockets
• Ringless lever bypass design for enhanced safety and reliability
• QuickSystem‚Ñ¢ features for efficient installation
• Removable back knockout plate to facilitate wiring
• 225 Amp capability in three-phase design
• Up to 4 positions with 225 Amp tenant mains
• Suitable for residential and commercial multi-family metering applications
• Compliance with UL and ANSI standards ensures safety and performance
