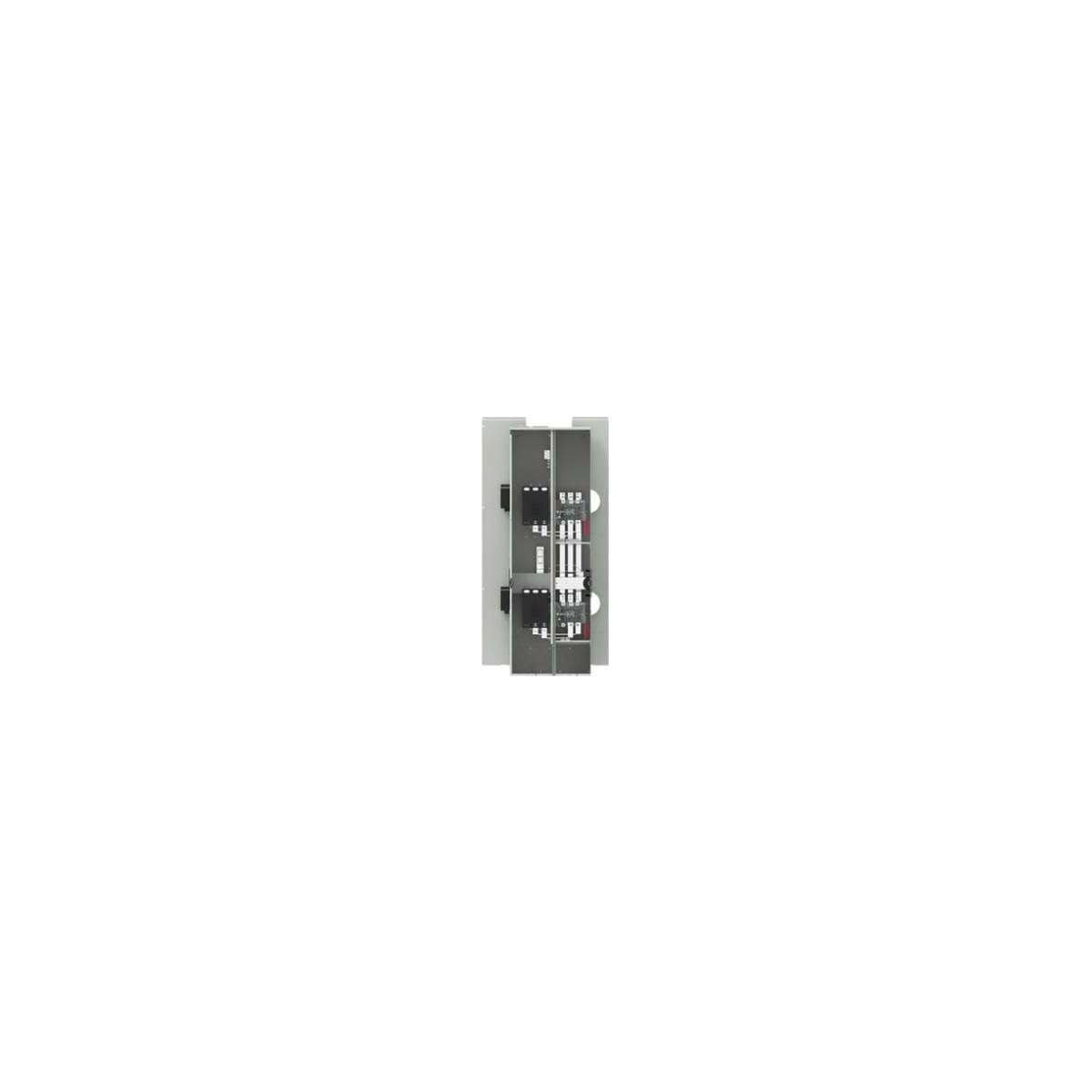

SIEMENS WML23400RJT13 POWMOD WML 2G 7J 3PH I/O 400A 300/300A Lever Bypass Meter Stack

The Siemens WML23400RJT13 Power Mod WML lever bypass meter stack is designed for commercial and residential electrical distribution applications requiring reliable metering solutions. This 3-phase, 4-wire lever bypass meter stack supports a maximum amperage rating of 400A and is suitable for use by electrical distributors and switchgear suppliers offering advanced wire and cable and lighting solutions. It features a ringless design and is engineered to facilitate tenant main cost minimization and efficient wiring installation.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: WML23400RJT13
• Amperage Rating: 400A
• Meter Positions Per Stack: 2
• Maximum AIC: 25kA
• Dimensions (inches): Height 70.38, Width 23.00, Depth 9.69
• Socket Phasing: 3-Phase, 4-Wire SN Incoming and Outgoing
• Stack Phasing: 7-Jaw Sockets
• Product Weight: 229.7 lbs
• UPC: 040892183474

Features

• Lever bypass design for easy meter removal and replacement without power interruption
• Ringless meter stack construction
• High-quality, time-proven Talon HQ sockets
• Supports 400A maximum tenant breaker amperage
• 1200A thru-bus rating for robust performance
• UL Standard # UL67 certified, UL file # E27100
• AIC ratings available: 25kA, 35kA, 65kA, and 100kA
• Indoor NEMA 1 rated enclosure
• G90 galvanized steel construction with ANSI 61 paint finish
• Removable back knockout plate for wiring facilitation
• All swing latches and rivets made of stainless steel
