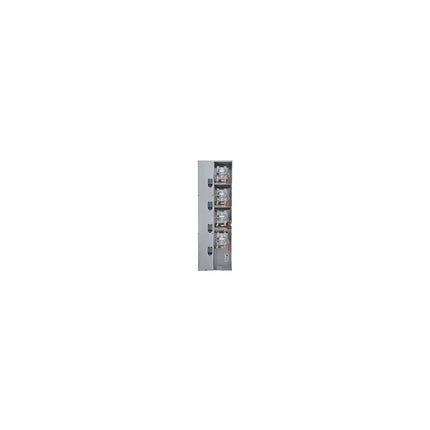

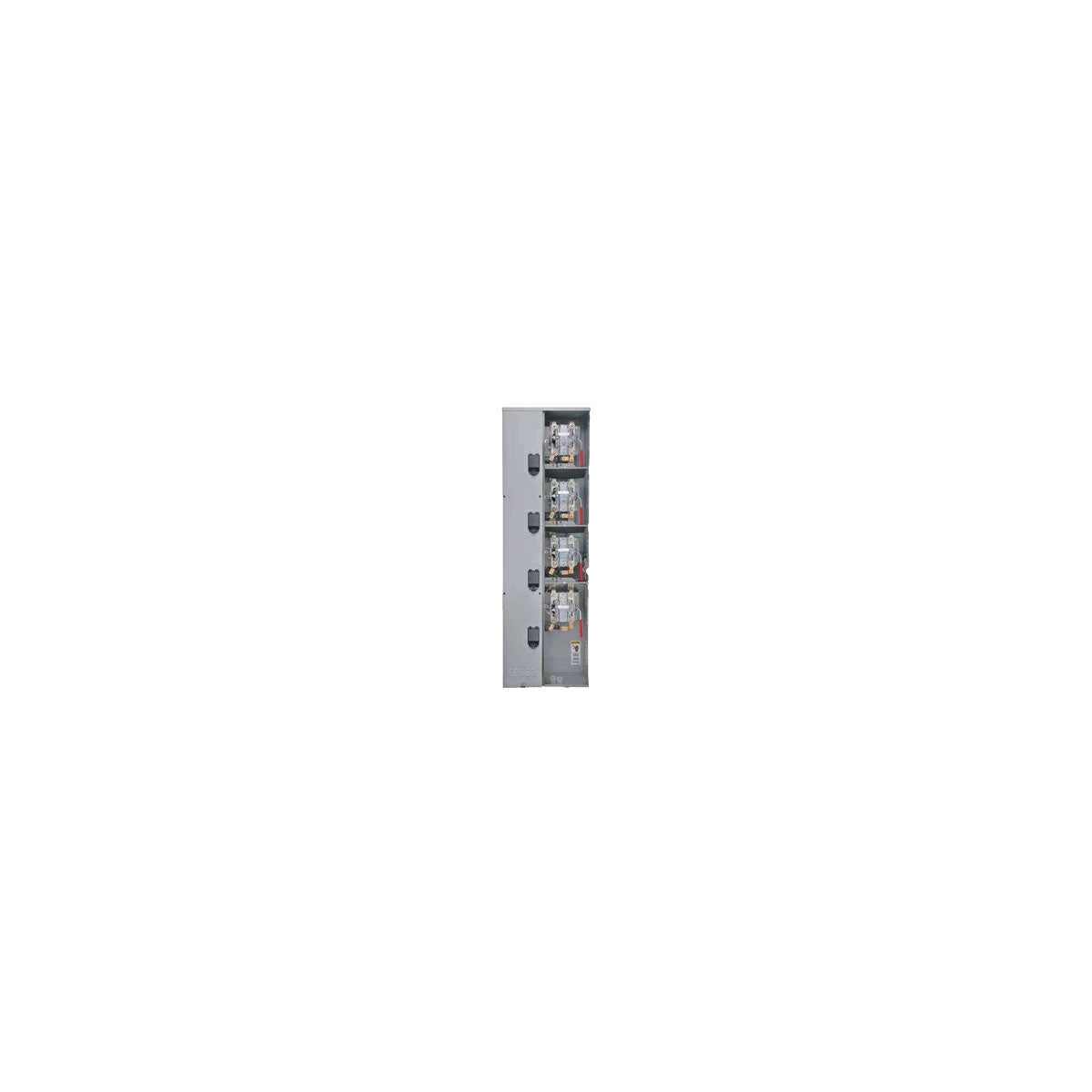

SIEMENS WML22AB225RJ POWMOD WML 2G 5J 3PH IN 225A AC/BC Lever Bypass Meter Stack

The Siemens WML22AB225RJ is a lever bypass meter stack designed for residential and commercial electrical distribution applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable metering solutions with 225 Amp capacity in three-phase configurations. This ringless meter stack supports 3-phase, 4-wire SN incoming and 1-phase, 3-wire SN outgoing connections, providing flexible phasing options for multi-family or commercial installations.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: WML22AB225RJ
• Amperage Rating: 225 Amps
• Maximum AIC: 100kA
• Meter Positions: 2
• Stack Phasing: 1-AC, 1-BC
• Dimensions (H x W x D): 40.75" x 19.50" x 9.00"
• Voltage: 3-Phase 240V AC max
• Enclosure Rating: Indoor NEMA 1
• Material: G90 galvanized steel with ANSI 61 paint
• Product Weight: 108.6 lbs
• UPC: 040892170894
• UL Standard: UL67, UL File #E27100
• AIC Ratings Available: 25K, 35K, 65K, 100K
• Thru-bus Rating: 1200 Amps

Features

• Lever bypass design meeting utility specifications for residential and commercial metering
• High-quality Talon HQ 5-jaw sockets for secure connections
• Ringless construction for enhanced safety and reliability
• Removable back knockout plate for simplified wiring access
• Supports up to 4 positions with 225 Amp tenant mains
• Stainless steel swing latches and rivets for corrosion resistance
• QuickSystem™ features for streamlined installation
• Compatible with various breaker provisions including QS, QSH, HQS, QP, MP series
